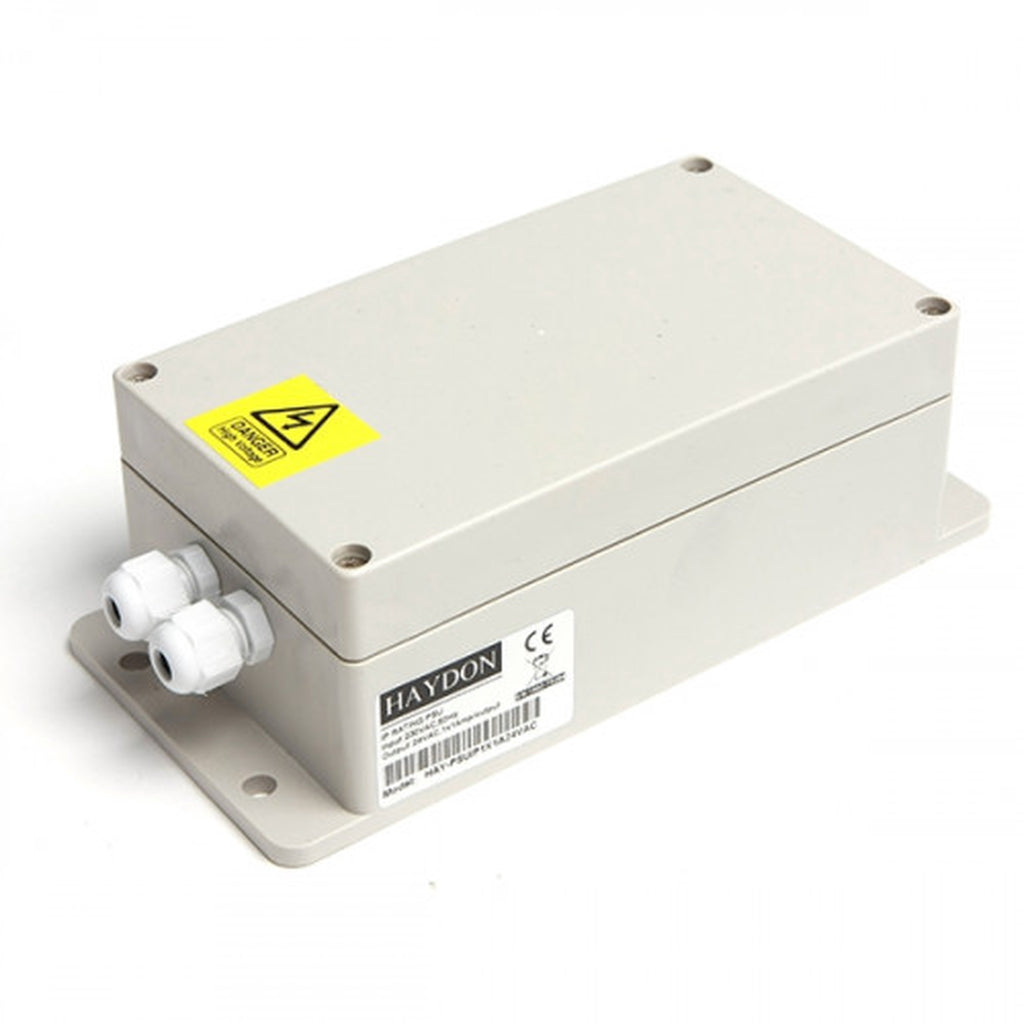

The Haydon HAY-IP-24VPSU-1X4A is a single-output 24V AC 4A power supply in an IP66 grey polycarbonate enclosure, for equipment that needs a 24V AC supply.
Key features
- 24V AC output at up to 4A
- IP66 when correctly installed
- Surge protected
- Auto-reset PTC fuse on the output
- Grey polycarbonate case
Technical specifications
-
Model: HAY-IP-24VPSU-1X4A
-
Input: 220V AC, 50Hz; rated 3A main fuse
-
Output voltage: 24V AC
-
Output current: 1 × 4A
-
Output fuse: Auto-reset PTC, rated 5A
-
Surge protected: Yes
-
IP rating: IP66 (when correctly installed)
-
Case: Grey polycarbonate
-
Operating temperature: −10°C to 40°C
-
Storage temperature: −20°C to +50°C
-
Operating humidity: 0% to 95% RH, non-condensing
-
Size (W × H × D): 15 × 27 × 8.9 cm
-
Weight: 2.8 kg
