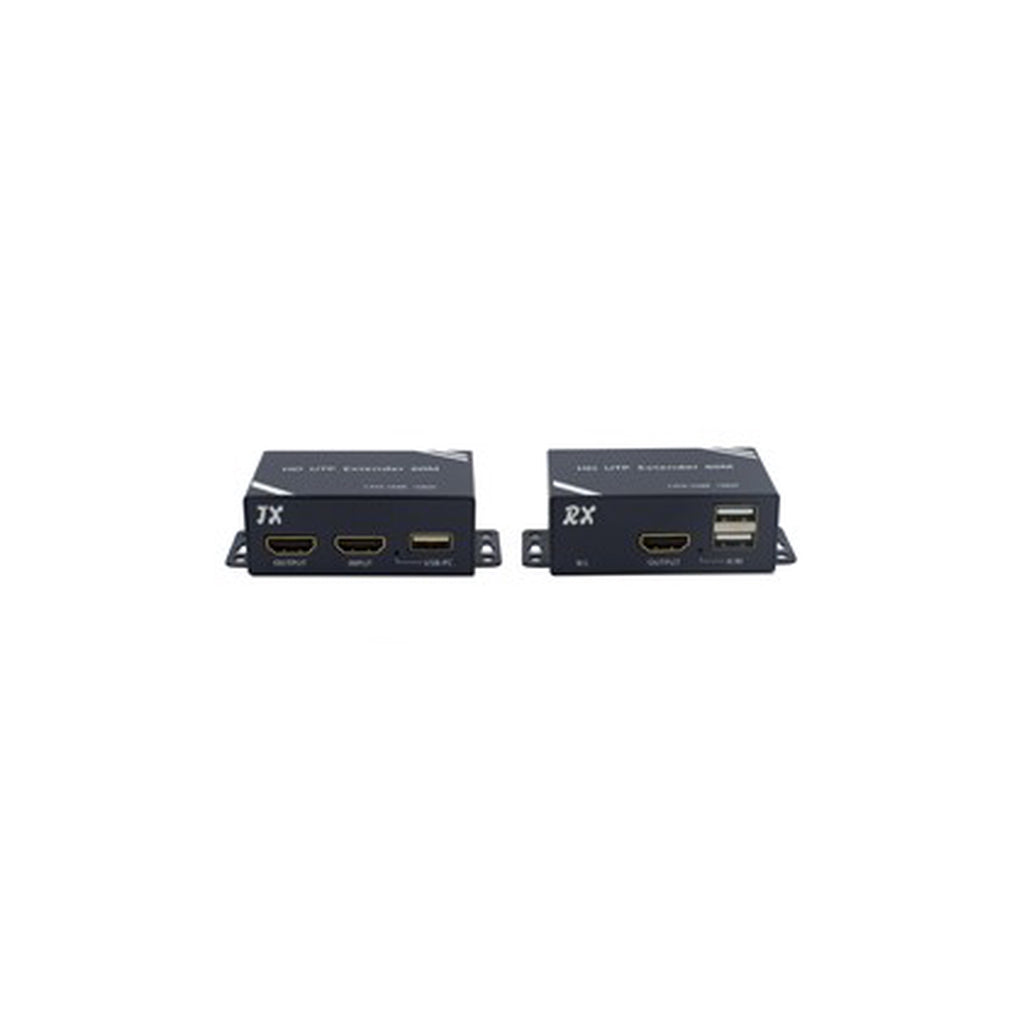

This HDMI Extender includes - transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows transmission and extension of uncompressed full HD 1080p@60Hz HDMI signal via CAT5e and CAT6/6A/7 network cable, the transmission distance is up to 60 meters using CAT6E and 40m using CAT5e cable with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. It supports keyboard & mouse remote control, also it supports POC to power the sender (Connect the power supply to the transmitter, each unit will power up, as the unit powers through the network cable). Uncompressed transmits HDMI video and audio signals up to:- 60m over a single CAT6 cable, 40m over CAT5e Supports video resolution up to 1920*1080@60Hz, 3D signal Supports keyboard and mouse remote control Built-in EDID function, so you can match display devices Support POC unilateral power supply, need 1pc 5V power to TX Compliance with HDMI 1.3 and HDCP 1.2 standard Ethernet cables with a standard IEEE - 568b connection, convenient installation High compatibility, can auto-match source and display device Built-in automatic adjustment system, making the image smooth, clear and stable;
