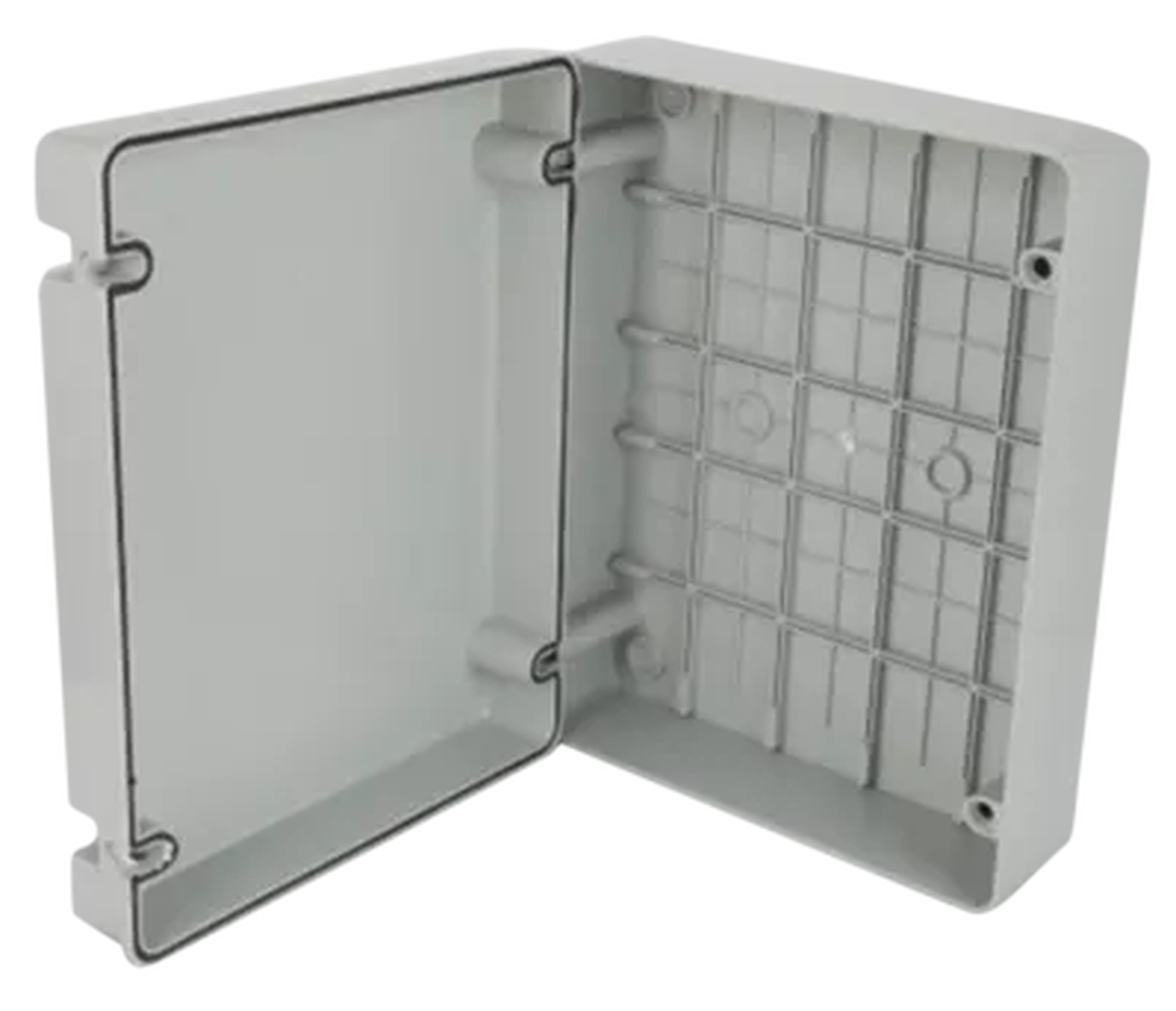

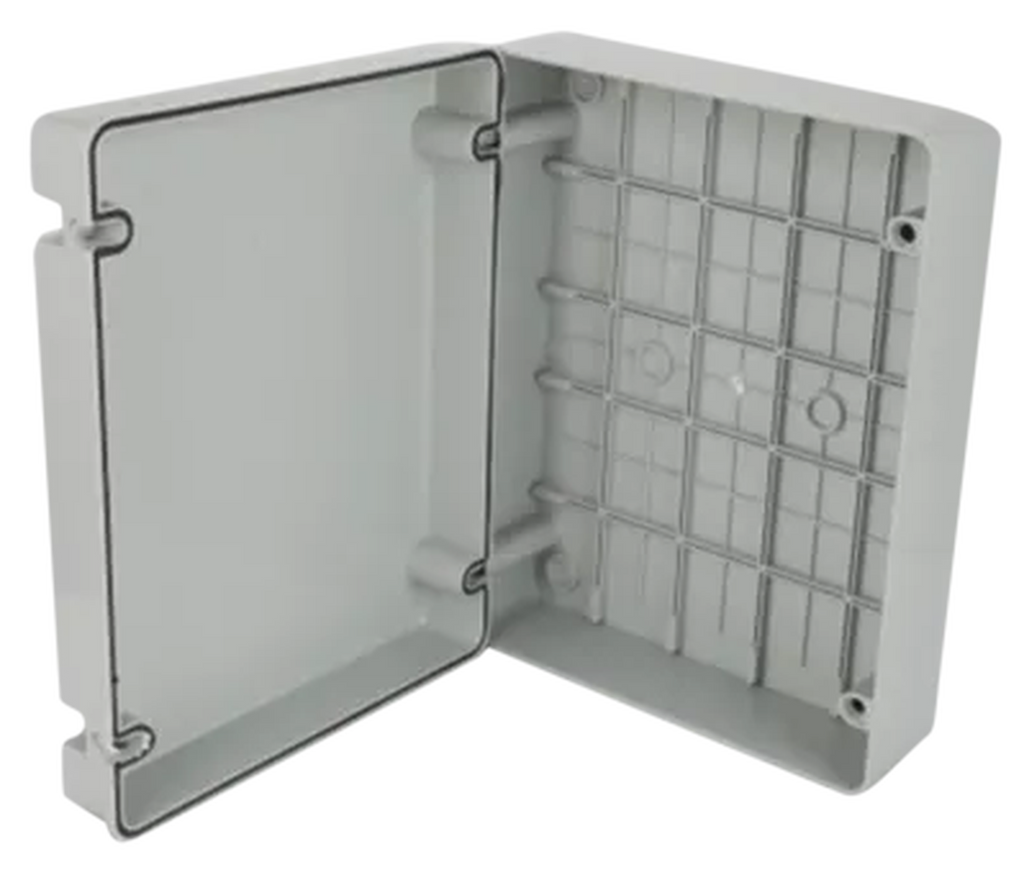

Haydon IP65 Junction Box 380x300x120mm
$31.00
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- IP65-rated enclosure for protecting cable joints and terminations
- Moulded from halogen-free ABS
- Class II insulation (to IEC 61140)
- Lid secured by 4 plastic screws
- Operating temperature -25 to +60 C
- Grey finish, suitable for CCTV, access control, intruder and fire alarm accessory installations
Product details
The Haydon HAY-JB380 is a large IP65-rated junction box measuring 380 x 300 x 120mm. It is the largest of the six sizes in the Haydon IP65 junction box range and provides a weather-resistant housing for ordinary cable junctions, power supply connections and equipment terminations.
Key features
- IP65-rated enclosure for protecting cable joints and terminations
- Moulded from halogen-free ABS
- Class II insulation (to IEC 61140)
- Lid secured by 4 plastic screws
- Operating temperature -25 to +60 C
- Grey finish, suitable for CCTV, access control, intruder and fire alarm accessory installations
Specification
| Product code | HAY-JB380 |
|---|---|
| Brand | Haydon |
| Dimensions | 380 x 300 x 120mm |
| IP rating | IP65 |
| Material | ABS, halogen-free |
| Insulation class | II (IEC 61140) |
| Lid screws | 4 x plastic |
| Operating temperature | -25 to +60 C |
| Colour | Grey |
| Net weight | 1.7kg |
Datasheets & documents
No datasheet is online for this product yet. Ask us and we will email it to you.
