Haydon 5MPBALUN-PT Single Channel Balun up to 4MP Transmitter & Receiver Pack

SKU: 5MPBALUN-PTBrand: Haydon
4.6store rating from 122 reviews
Stock available Qty Delivery
Poole2Same day dispatch
UK Hub0None at UK Hub
Need help choosing? Our UK team can check compatibility, stock and project pricing for you. 0117 440 4505info@jemsystems.co.uk
Price:
Sale price£4.45
5.34 inc. VAT4.45 ex VAT
Stock:
Only 2 units left
Delivery
Same day dispatch
Order by 2pm (UK time)
Collect in Poole
Free click & collect
Free, 2 available
Haydon 5MPBALUN-PT Single Channel Balun up to 4MP Transmitter & Receiver Pack £4.45
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
American Express Apple Pay Google Pay KlarnaMaestroMastercard PayPalShop Pay Visa
Key featuresFull details
  • Supports HDCVI, HDTVI and AHD video
  • Video and power over a single UTP Cat5/5e/6 cable
  • Supports 12V DC or 24V AC
  • Built-in surge and transient protection
  • LED indicators: green when working, yellow when not working
  • Supplied as a transmitter and receiver pair

Frequently bought together

Haydon Single Channel PoC & HD Video Balun
Haydon Small Lockable DVR Enclosure
Haydon 12/24VDC 8/4A Access Control PSU

Product details

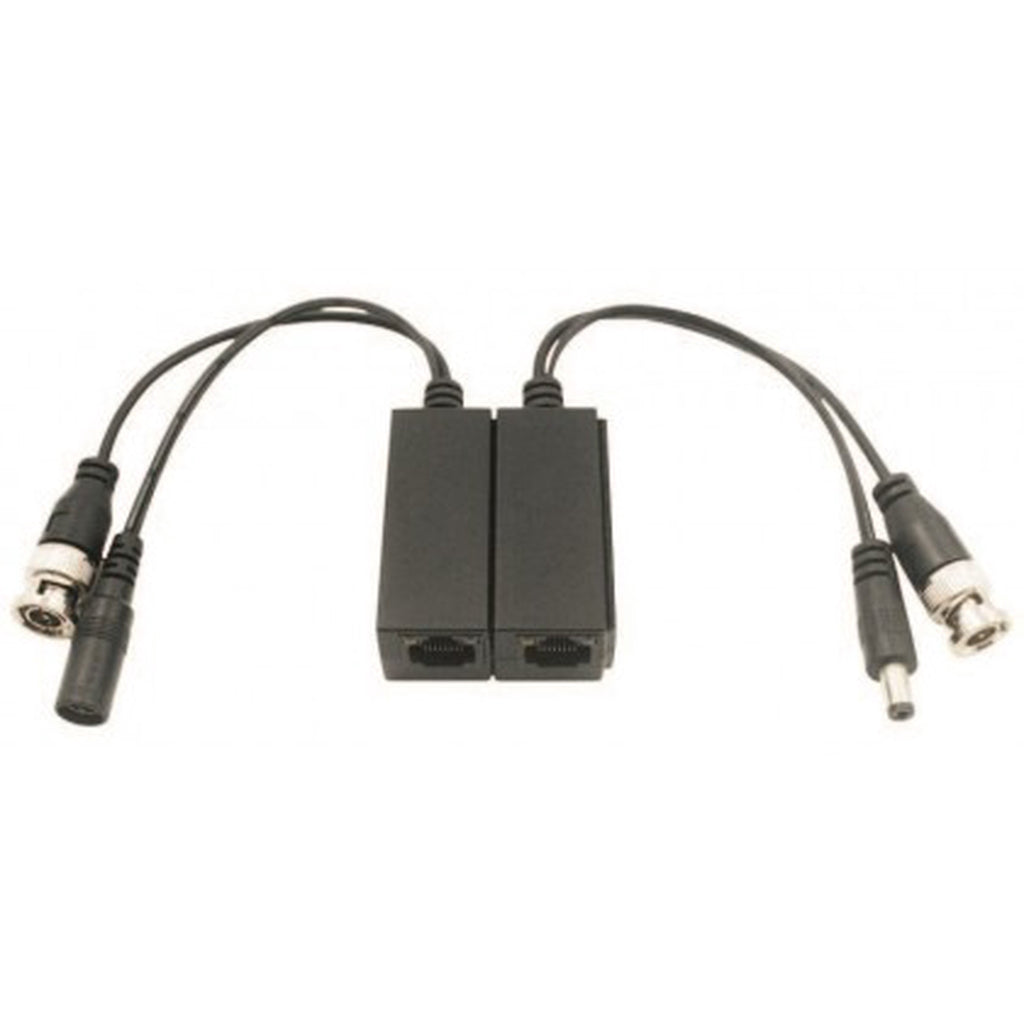

The Haydon HAY-HDPVB02 is a single-channel HD video and power balun pair (transmitter and receiver) that sends HDCVI, HDTVI or AHD video and camera power over UTP Cat5/5e/6 cable. It supports 12V DC or 24V AC power and has built-in surge protection.

Key features

  • Supports HDCVI, HDTVI and AHD video
  • Video and power over a single UTP Cat5/5e/6 cable
  • Supports 12V DC or 24V AC
  • Built-in surge and transient protection
  • LED indicators: green when working, yellow when not working
  • Supplied as a transmitter and receiver pair

Technical specifications

  • Model: HAY-HDPVB02
  • Video formats: HDCVI, HDTVI, AHD
  • Signal band: 250MHz (−3dB)
  • Video balance band: 0–65MHz
  • Distance (HDCVI): 720p 400 m / 1080p 250 m / 4MP 200 m
  • Distance (HDTVI): 720p/1080p 250 m / 4MP 200 m
  • Distance (AHD): 720p 350 m / 1080p 200 m / 4MP 200 m
  • Surge protection: 2kV common mode; 2kV differential mode (10/700µs)
  • Suggested maximum current: 1.5A
  • Suggested cable: UTP Cat5/5e/6
  • Gross weight: 105 g for both units

What's in the box

  • 1 × transmitter
  • 1 × receiver

Datasheets & documents

No datasheet is online for this product yet. Ask us and we will email it to you.
