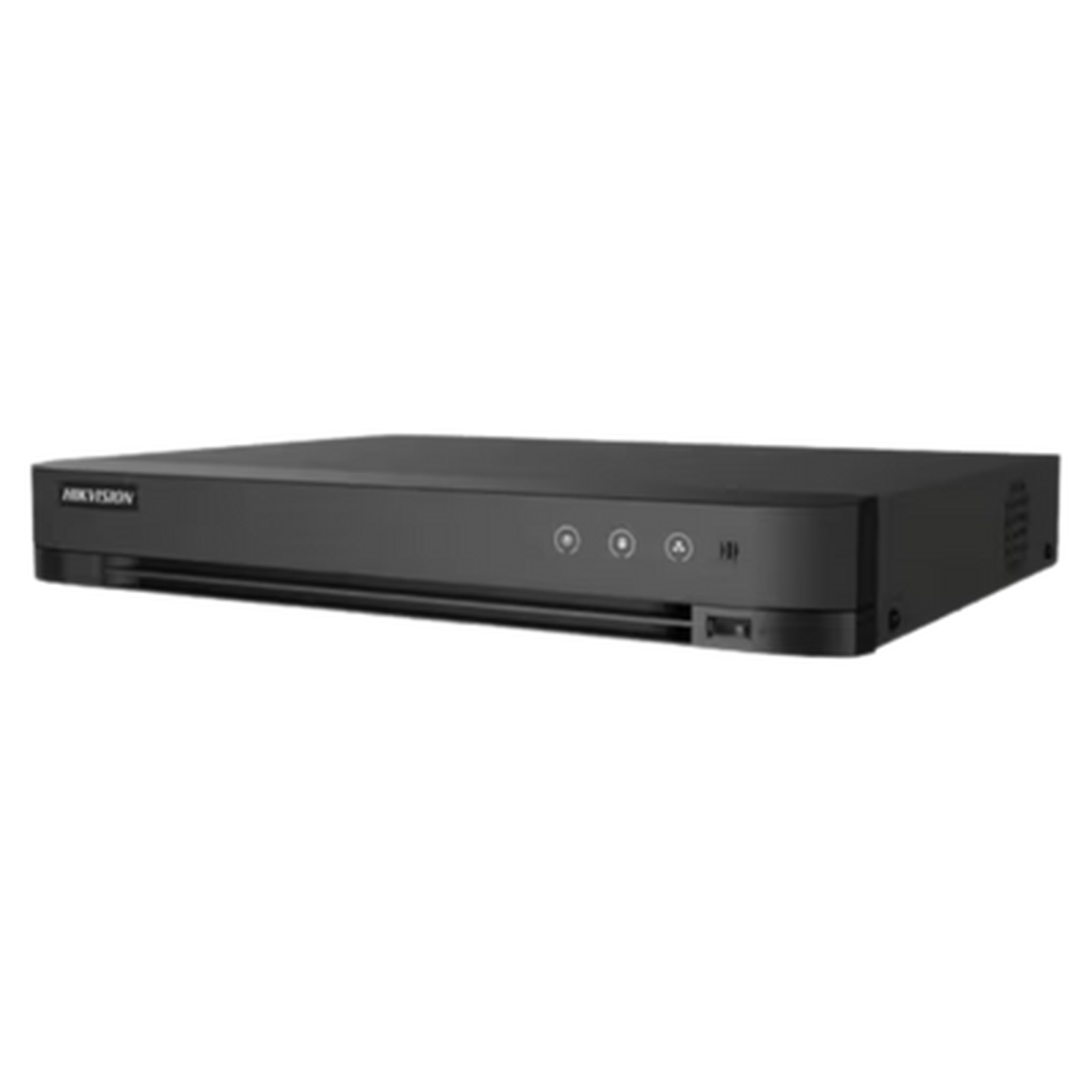

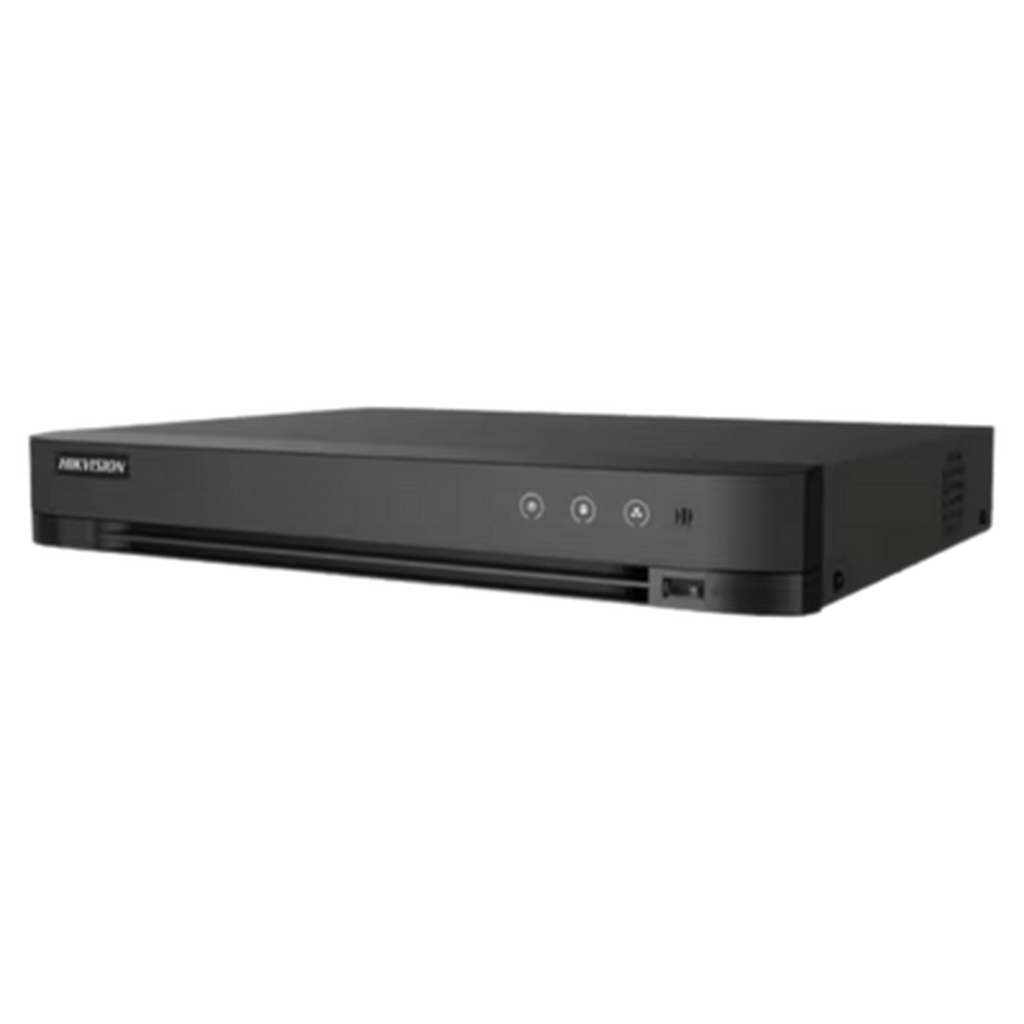

Hikvision 16 Channel 1080p 1U H.265 AcuSense DVR

Hikvision iDS-7216HQHI-M1/XT - 16-ch 1080p 1U H.265 AcuSense DVR

The Hikvision iDS-7216HQHI-M1/XT is a 16-ch 1080p 1U H.265 AcuSense DVR from the Turbo HD AcuSense range. 16 channels and 1 HDD 1U AcuSense DVR. Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm. Support 16-ch AcuSearch Technology.

Key features

• 16 channels and 1 HDD 1U AcuSense DVR
• Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
• Support 16-ch AcuSearch Technology
• Efficient H.265 pro+ compression technology
• Encoding ability up to 3K/5MP Lite@12fps
• Up to 24-ch IP camera inputs, each channel up to 6MP
• Up to 24*1080P@30fps decoding ability
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Support All channels Motion Detection Technology
• Support All channels HDTVI Two-Way Audio Technology

Technical specification

Human/Vehicle Analysis	Deep learning-based motion detection 2.0 is enabled by default for all analogue channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; | Quick search by object or event type is supported; |
Facial Detection and Capture	Face picture detection, face picture search； | 4-ch face picture capture
Face Picture Comparison	Face picture comparison, face picture search (4-ch face picture comparison alarm for HD analogue camera)
Face Picture Library	Up to 16 face picture libraries,; | HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
IP Video Input	8-ch (up to 24-ch), Up to 6 MP resolution
Analog Video Input	16-ch | BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input	3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
AHD Input	5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
HDCVI Input	3K(2880×1620)@20/25 fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30 fps
CVBS Input	PAL/NTSC
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 Ω), | resolution: PAL: 704 × 576, NTSC: 704 × 480 |
HDMI Output	1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, | HDMI/VGA simultaneous output |
VGA Output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, | HDMI/VGA simultaneous output |
Audio Input	1-ch (up to 16-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 16-ch via coaxial cable
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback	16-ch
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	When 1080p Lite mode is not enabled: | 2K/3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; | When 1080p Lite mode is enabled: | 2K/3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate	Main stream: | When 1080p Lite mode not enabled: | For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps | For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps | For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | When 1080p Lite mode enabled: | 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | Sub-stream: | WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bitrate	32 Kbps to 6 Mbps
Dual-stream	Support main stream or sub stream
Stream Type	Video, Video & Audio
Audio Compression	G.711u
Audio Bitrate	64 Kbps
Decoding Capability	up to 24-ch 1080P@30fps
Remote Connection	128
Total Bandwidth	256 Mbps
Network Protocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Network Interface	1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
SATA	1 SATA interface, up to 12 TB capacity for each disk
Serial Interface	RS-485 (half-duplex)
USB Interface	Front panel: 1 × USB 2.0; | Rear panel: 2 × USB 3.0
Alarm In/Out	N/A (optional to support)
Power Supply	12 VDC, 2 A
Consumption	≤ 24 W
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10% to 90%
Dimension (W × D × H)	319 × 240 × 48 mm (12.6 × 9.4 × 1.9 inch)
Weight	≤ 2 kg (4.4 lb)

Downloads

• iDS-7216HQHI-M1/XT Quick Start Guide (PDF)
• iDS-7216HQHI-M1/XT User Manual (PDF)
• iDS-7216HQHI-M1/XT Turbo HD DVR V4.84.011build251217 Release Notes (PDF)
