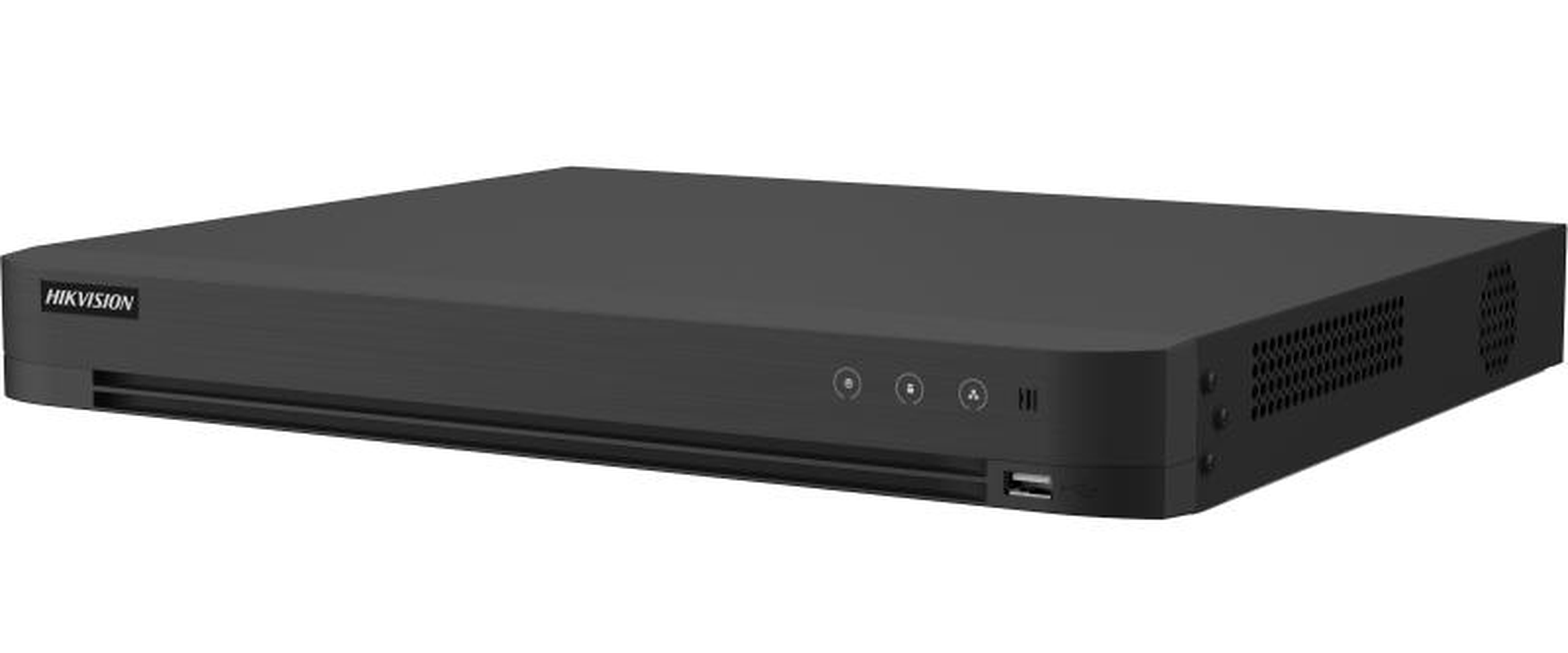

Hikvision 16 Channel 5MP 1U H.265 AcuSense PoC DVR

Hikvision iDS-7216HUHI-M2/PXT - 16-ch 5 MP 1U H.265 AcuSense POC DVR

The Hikvision iDS-7216HUHI-M2/PXT is a 16-ch 5 MP 1U H.265 AcuSense POC DVR from the Turbo HD AcuSense range. 16 channels and 2 HDD 1U AcuSense DVR. Support 4-ch Facial Recognition or 16-ch advanced model Perimeter Protection based on Deep Learning algorithm. Efficient H.265 pro+ compression technology.

Key features

• 16 channels and 2 HDD 1U AcuSense DVR
• Support 4-ch Facial Recognition or 16-ch advanced model Perimeter Protection based on Deep Learning algorithm
• Efficient H.265 pro+ compression technology
• Encoding ability up to 4K/8MP @ 8fps; 3K/5MP @12fps
• Up to 32 channels IP camera inputs, each channel up to 8MP
• Up to 24*1080P@30fps decoding ability
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Support All channels Motion Detection technology
• Support HDTVI Two-Way Audio technology

Technical specification

Human/Vehicle Analysis	Deep learning-based motion detection 2.0 is enabled by default for all analogue channels, | it can classify human and vehicle, and extremely reduce false alarms caused by objects | like leaves and lights; | Quick search by object or event type is supported;
Facial Detection and Capture	Face picture detection, face picture search； | 4-ch face picture capture
Face Picture Library	Up to 16 face picture libraries; | HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
Face Picture Comparison (Captured from Camera)	4-ch face picture comparison alarm (HD analogue camera)
IP Video Input	16-ch (up to 32-ch), each up to 8MP
Analog Video Input	16-ch | BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
PoC Camera Input	Support Hikvision PoC camera
HDMI Output	1-ch, 4K (3840 × 2160)/30Hz, | 2K (2560 × 1440)/60Hz, | 1920 × 1080/60Hz, | 1280 × 1024/60Hz, | 1280 × 720/60Hz | HDMI/VGA simultaneous output
VGA Output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz | HDMI/VGA simultaneous output
CVBS Input	PAL/NTSC
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 Ω), | resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback	16-ch
HDTVI Input	8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
AHD Input	5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
HDCVI Input	8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Audio Input	4-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ), 16-ch via coaxial cable
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate	Main stream: | 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps | 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) | Sub-stream: | WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate	32 Kbps to 10 Mbps
Dual-stream	Support main stream or sub stream
Stream Type	Video, Video & Audio
Audio Compression	G.711u
Audio Bitrate	64 Kbps
Decoding Capability	up to 24-ch 1080P@30fps
Total Bandwidth	256 Mbps
Network Protocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Remote Connection	128
Network Interface	1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
SATA	2 SATA interfaces
Capacity	Up to 12 TB capacity for each disk
Serial Interface	RS-485 (half-duplex)
USB Interface	Front panel: 1 × USB 2.0 | Rear panel: 2 × USB 3.0
Alarm In/Out	4/1
Power Supply	100 to 240 VAC, 50 to 60 Hz
Consumption	≤ 20 W (without HDD)
Working Temperature	-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity	10% to 90%
Dimension (W × D × H)	384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
Weight	≤ 2.1 kg (4.6 lb)

Downloads

• iDS-7216HUHI-M2/PXT Data Sheet (PDF)
• iDS-7216HUHI-M2/PXT Quick Start Guide (PDF)
• iDS-7216HUHI-M2/PXT User Manual (PDF)
• iDS-7216HUHI-M2/PXT Turbo HD DVR V4.84.011build251217 Release Notes (PDF)
