Hikvision 2-Wire Indoor Station

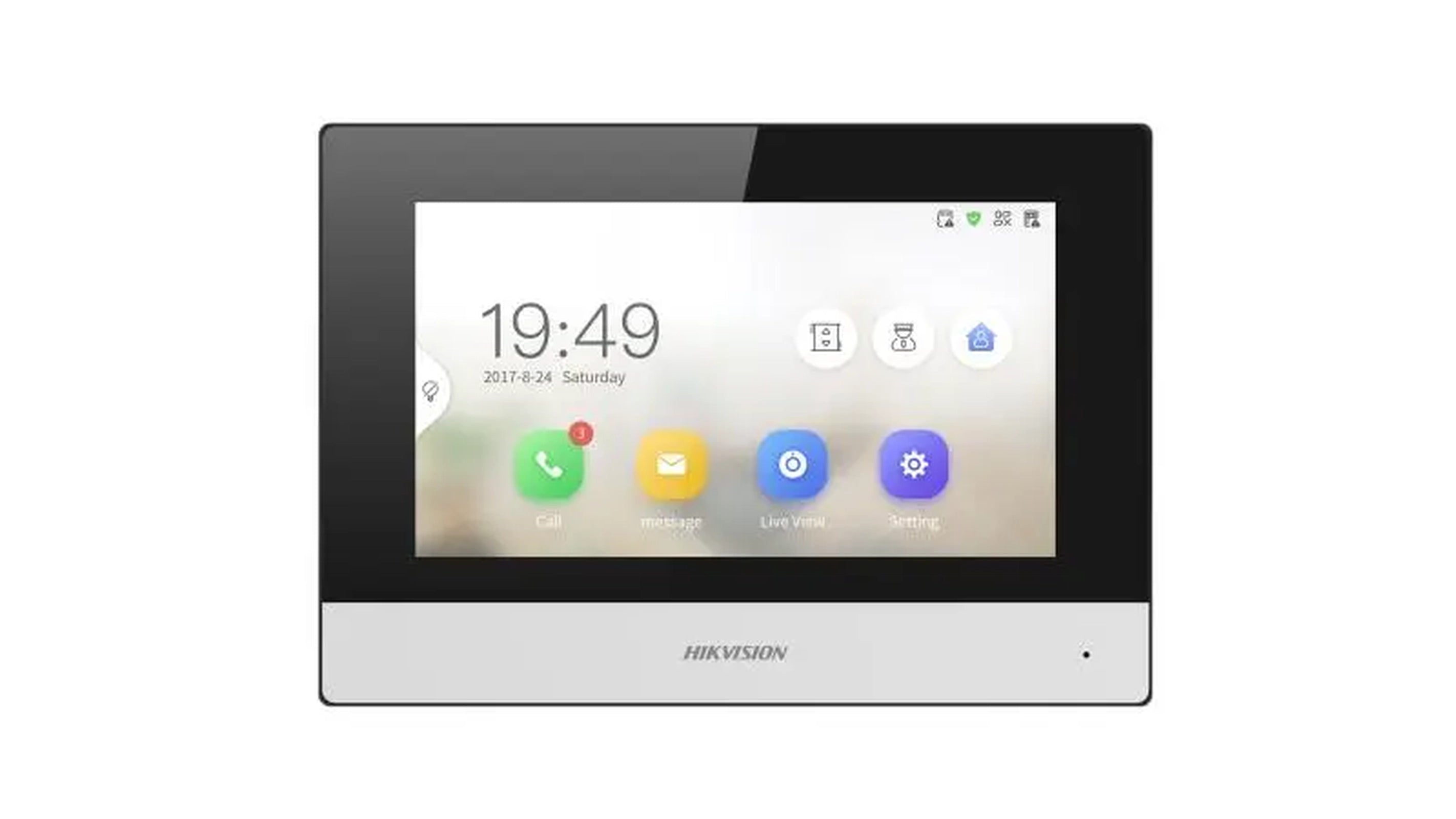

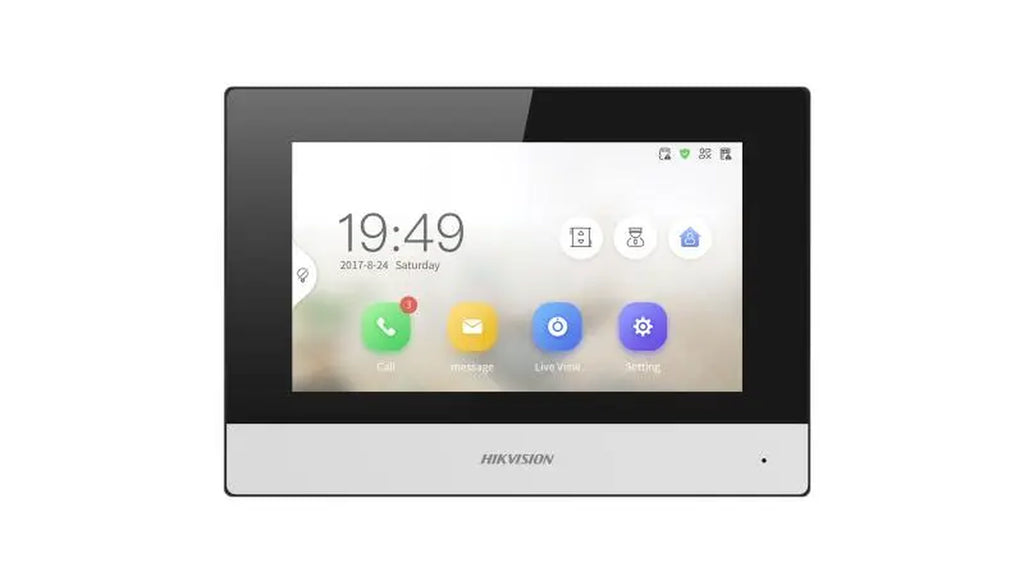

Hikvision DS-KH6320Y-WTE2 - Two wire indoor stations

The Hikvision DS-KH6320Y-WTE2 is a Two wire indoor stations from the Video Intercom 2 wire range. 7-inch IPS touch screen 2-Wire IP indoor station with 1024 × 600 resolution. Convenient Hik-Connect APP Mobile Control. Receive calls, open the door and live view remotely.

Key features

• 7-inch IPS touch screen 2-Wire IP indoor station with 1024 × 600 resolution
• Convenient Hik-Connect APP Mobile Control
• Receive calls, open the door and live view remotely
• Easy to use without PC
• Easy wizard for quick set up
• Configure the whole system on one touch screen
• Live view of the door station and cameras in public areas
• Support voice messages when no response from the indoor station
• Receive alarms by linkage with a alarm system and notify the center to handle in time
• Elevator access control

Technical specification

Operation system	Embedded Linux operation system
ROM	32 MB
RAM	128 MB
Processor	Embedded processor
Screen size	7-inch
Operation method	Capacitive touch screen
Type	TFT
Resolution	/
Lens	/
FOV	/
Wide dynamic range (WDR)	/
Video compression standard	/
Focal length	/
Audio input	Built-in omnidirectional microphone
Audio compression standard	G.711 U、G.711 A、G.722.1
Audio output	Buit-in loudspeaker
Audio compression bitrate	64 Kps
Audio quality	Noise suppression and echo cancellation
Volume adjustment	Adjustable
Message capacity	200 captured pictures (with TF card); 200 alarm records | 2 MB RAM (without TF card) reserved for events
Notice capacity	200
Linked network camera capacity	16
Linked indoor extensions capacity	16
Linked doorphone capacity	17 IP doorphones Max.
Network protocol	TCP/IP, SIP, RTSP
Wi-Fi	IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth	/
3G/4G	/
Zigbee	/
Alarm input	8-ch alarm inputs
TAMPER	/
RS-485	1
USB	/
TF card	Max to 128 G, SD 2.0 or lower version
Alarm output	2 relays (30 V Max.)
Lock control	2 relays, Max. to 30 VDC, 0.3 A
Two-Wire IP interface	1
Button	/
Installation	Surface mounting
Indicator	/
Weight	Net weight:0.325 kg | Gross weight: 0.650 kg
Protective level	/
Working temperature	-10 °C to 50 °C (14 °F to 122 °F)
Working humidity	10% to 90% (no-condensing)
Dimension (W × H × D)	200 mm × 140 mm × 23.6 mm (7.87" × 5.51" × 0.93")
Battery	/
Power supply	Powered by KAD704Y or KAD706Y series distributor
Application environment	Indoor
Power consumption	≤ 4 W
Language	English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
