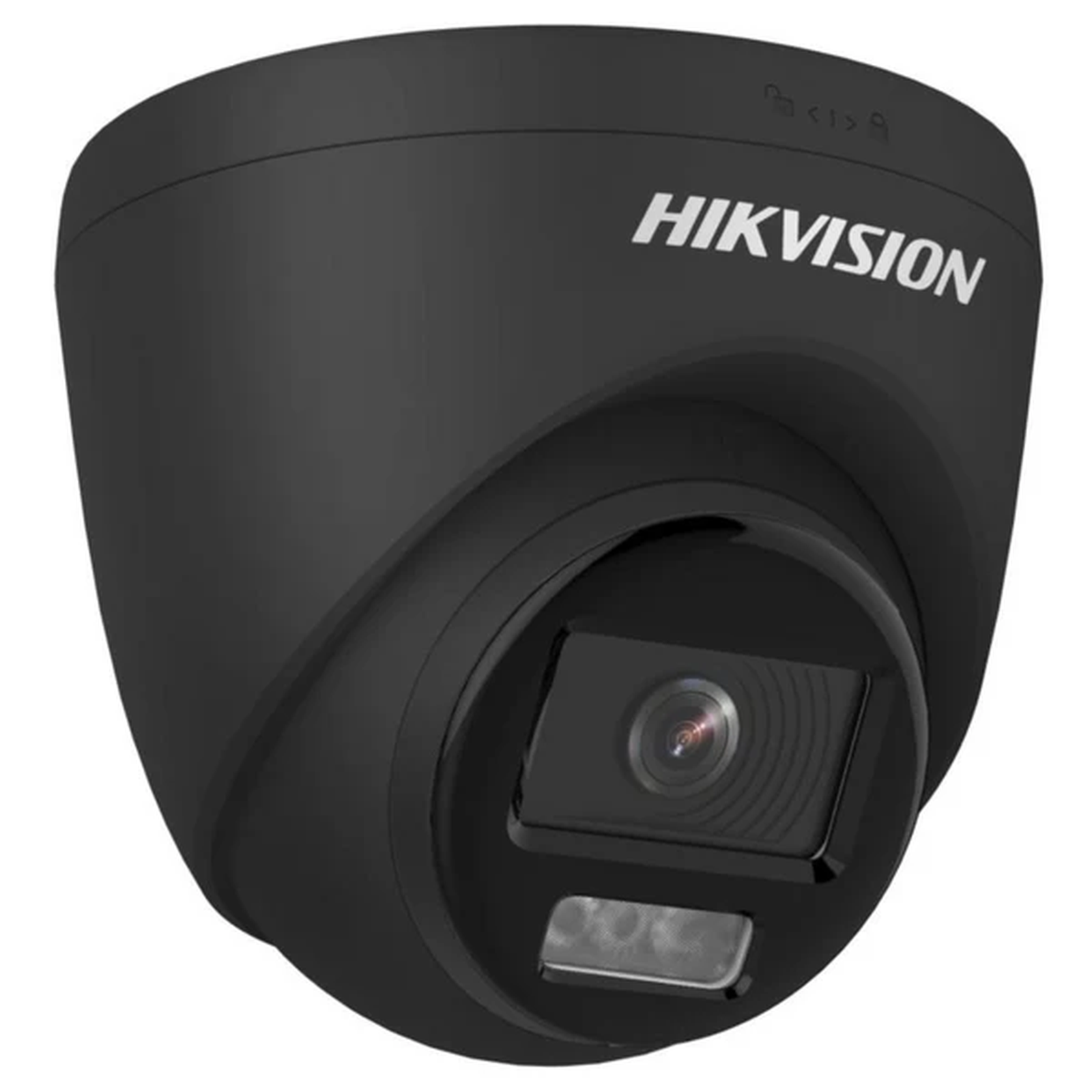

Hikvision DS-2CE72KF3T-LSYE - 3K Smart Hybrid Light ColorVu Fixed Turret Camera
The Hikvision DS-2CE72KF3T-LSYE is a 3K Smart Hybrid Light ColorVu Fixed Turret Camera from the Turbo HD ColorVu range. High quality imaging with 3K, 2960 × 1665 resolution. 24/7 colour imaging with F1.0 aperture. Smart-Hybrid light, optimise your security with flexible lighting options.
Key features
- High quality imaging with 3K, 2960 × 1665 resolution
- 24/7 colour imaging with F1.0 aperture
- Smart-Hybrid light, optimise your security with flexible lighting options
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Up to 40 m white light and 40 m IR distance for bright night imaging
- High quality audio with audio over coaxial cable, built-in mic
- Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
- Water and dust resistant (IP67)
Technical specification
| Image Sensor |
3K CMOS |
| Max. Resolution |
2960 (H) × 1665 (V) |
| Min. Illumination |
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time |
PAL: 1/25 s to 1/50,000 s, NTSC: 1/30 s to 1/50,000 s |
| Day & Night |
ICR |
| Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Signal System |
PAL/NTSC |
| Lens Type |
2.8 mm, 3.6 mm fixed focal lens |
| Focal Length & FOV |
2.8 mm, horizontal FOV: 112°, vertical FOV: 60°, diagonal FOV: 140° | 3.6 mm, horizontal FOV: 90°, vertical FOV: 49°, diagonal FOV: 105° |
| Lens Mount |
M12 |
| Pickup Distance |
In a radius of up to 5 m |
| Supplement Light Type |
Smart, IR, White Light |
| Supplement Light Range |
IR: Up to 40 m, White Light: Up to 40 m |
| Image Parameters Switch |
STD/HIGH-SAT/HIGHLIGHT |
| Image Settings |
Saturation, Brightness, Contrast, Sharpness, Anti-banding, AGC |
| Frame Rate |
TVI: 3K @20 fps/25 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps |
| Day/Night Mode |
Auto/Colour |
| Wide Dynamic Range (WDR) |
≥130 dB |
| Image Enhancement |
WDR, BLC, HLC, Global |
| Privacy Mask |
4 programmable polygon privacy masks |
| Noise Reduction |
3D DNR |
| White Balance |
Auto, Manual |
| Video Output |
1 HD analogue output |
| Power |
12 VDC ± 25%, max. 5.9 W, PoC.at *You are recommended to use one power adapter to supply the power for one camera. |
| Material |
Main body: Metal, Enclosure: Plastic |
| Dimension |
Ø110 mm × 102.7 mm (Ø4.33" × 4.04") |
| Weight |
Approx. 395 g (0.87 lb.) |
| Operating Condition |
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing) |
| Communication |
HIKVISION-C |
| Language |
English |
| Protection |
IP67 |
| Anti-Corrosion Protection |
NEMA 4X (NEMA 250-2018) |
