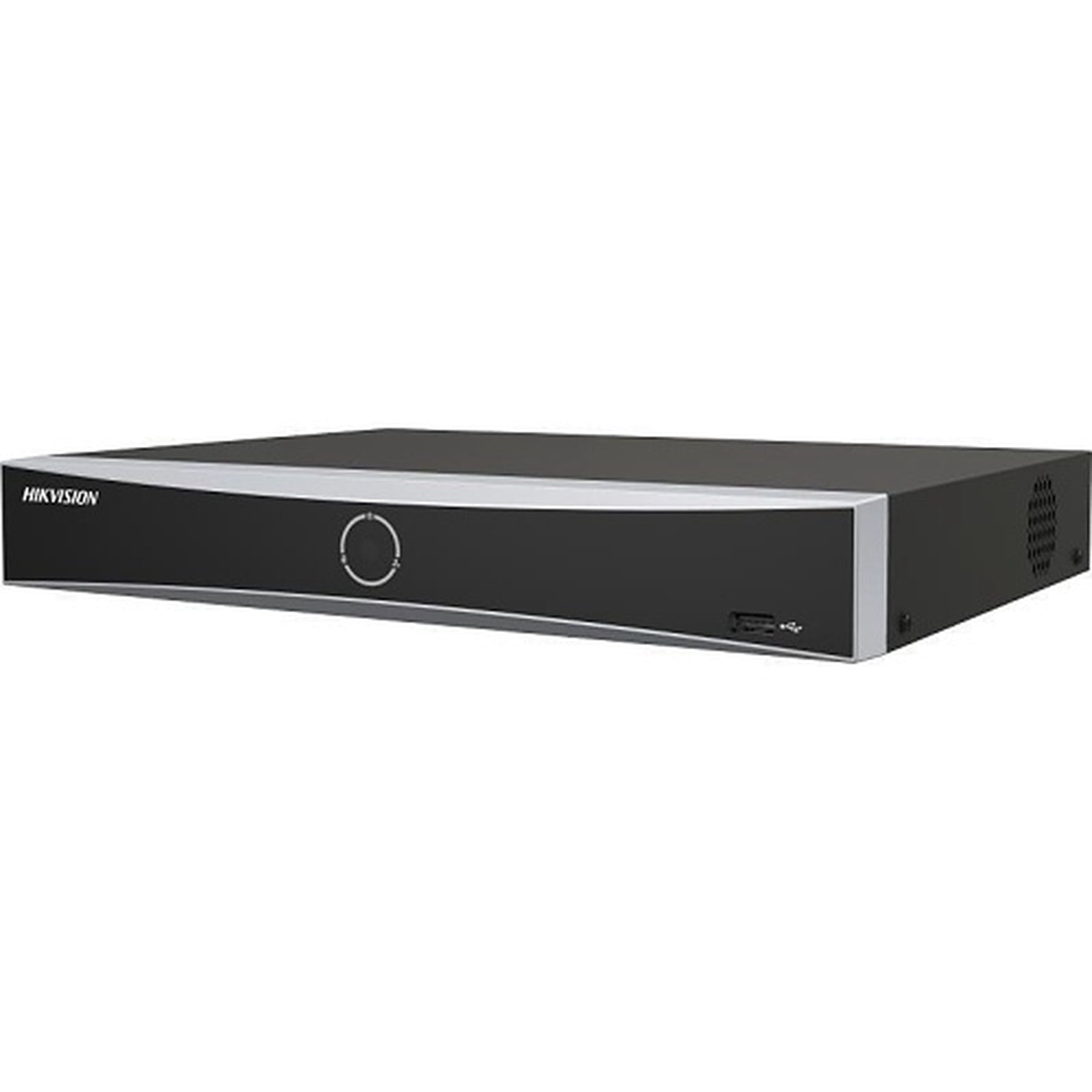

Hikvision DS-7604NXI-K1/4P(D) 4 Channel PoE 1U K Series AcuSense 4K NVR

SKU: DS-7604NXI-K1/4P(D)Brand: Hikvision
4.6store rating from 122 reviews
Stock available Qty Delivery
Poole0None in Poole
UK Hub9391 to 3 working days
Need help choosing? Our UK team can check compatibility, stock and project pricing for you. 0117 440 4505info@jemsystems.co.uk
Price:
Sale price£155.30
186.36 inc. VAT155.30 ex VAT
Stock:
In stock (939 units)
Delivery
1 to 3 working days
Ships from our UK supplier hub
Collect in Poole
Not stocked in Poole
Delivery only
Hikvision DS-7604NXI-K1/4P(D) 4 Channel PoE 1U K Series AcuSense 4K NVR £155.30
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
American Express Apple Pay Google Pay KlarnaMaestroMastercard PayPalShop Pay Visa
Key featuresFull details
  • Up to 4-ch IP camera inputs, plug & play with 4 power-over-Ethernet (PoE) interfaces
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 2-ch@12 MP or 4-ch@8 MP or 8-ch@4 MP or 16-ch@1080p decoding capacity
  • Up to 40 Mbps incoming bandwidth
  • Adopt Hikvision Acusense technology to minimize manual effort and security costs

Product details

A plug-and-play 4 channel PoE NVR for small IP CCTV systems: the Hikvision DS-7604NXI-K1/4P(D) powers up to four IP cameras over PoE and adds AcuSense human and vehicle analysis to cut false alarms.

The Hikvision DS-7604NXI-K1/4P(D) is a 4-ch PoE 1U K Series AcuSense 4K NVR from the IP Pro range. Up to 4-ch IP camera inputs, plug & play with 4 power-over-Ethernet (PoE) interfaces. H.265+/H.265/H.264+/H.264 video formats. Up to 2-ch@12 MP or 4-ch@8 MP or 8-ch@4 MP or 16-ch@1080p decoding capacity.

Key features

  • Up to 4-ch IP camera inputs, plug & play with 4 power-over-Ethernet (PoE) interfaces
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 2-ch@12 MP or 4-ch@8 MP or 8-ch@4 MP or 16-ch@1080p decoding capacity
  • Up to 40 Mbps incoming bandwidth
  • Adopt Hikvision Acusense technology to minimize manual effort and security costs

Technical specification

AI by Device Facial recognition, perimeter protection, motion detection 2.0
AI by Camera Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
By Device 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
By Camera All channels
Face Picture Comparison 4-ch
Facial Detection and Analytics Face picture comparison, human face capture, face picture search
Face Picture Library Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection and Analytics Performance 1-ch, 8 MP
IP Video Input 4-ch
Incoming Bandwidth 40 Mbps
Outgoing Bandwidth 80 Mbps
HDMI Output 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode HDMI1/VGA simultaneous output
CVBS Output N/A
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Format H.265/H.265+/H.264+/H.264
Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 4-ch
Decoding Capability AI on: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) | AI off: 2-ch@12 MP (30 fps)/4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps) | Smooth Playback (HC) ON & AI ON: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/5-ch@4 MP (30 fps)/11-ch@1080p (30 fps) | Smooth Playback (HC) ON & AI OFF: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/7-ch@4 MP (30 fps)/15-ch@1080p (30 fps)
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC
Remote Connection 128
API ONVIF (profile S/G); SDK; ISAPI
Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Interface 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ≤ 50 W
Standard IEEE 802.3af/at
SATA 1 SATA interface
Capacity Up to 16 TB capacity for each HDD
USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarm In/Out 4/1;NA
GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply 48 VDC, 1.35 A
Consumption ≤ 10 W (without HDD and PoE off)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9")
Weight ≤ 1 kg (without HDD, 2.2 lb.)
CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Obtained Certification CE KC WEEE REACH ROHS BIS CB RCM IC LOA UKCA

Compatible with / Used for: Hikvision and ONVIF (Profile S/G) IP cameras in homes, shops, offices and small commercial sites. Accepts one SATA HDD up to 16 TB (not included).

Frequently asked questions

How many cameras can the DS-7604NXI-K1/4P(D) record?

It has 4 IP camera inputs with 4 built-in PoE ports (IEEE 802.3af/at), and up to 40 Mbps incoming bandwidth.

Does this NVR include a hard drive?

No hard drive is listed as included. It has 1 SATA interface supporting up to 16 TB.

Can it output 4K to a monitor?

Yes. The HDMI output supports up to 4K (3840 x 2160) at 30 Hz, with simultaneous VGA output.

Downloads

Datasheets & documents

Hikvision DS-7604NXI-K1/4P(D) datasheet (PDF)
