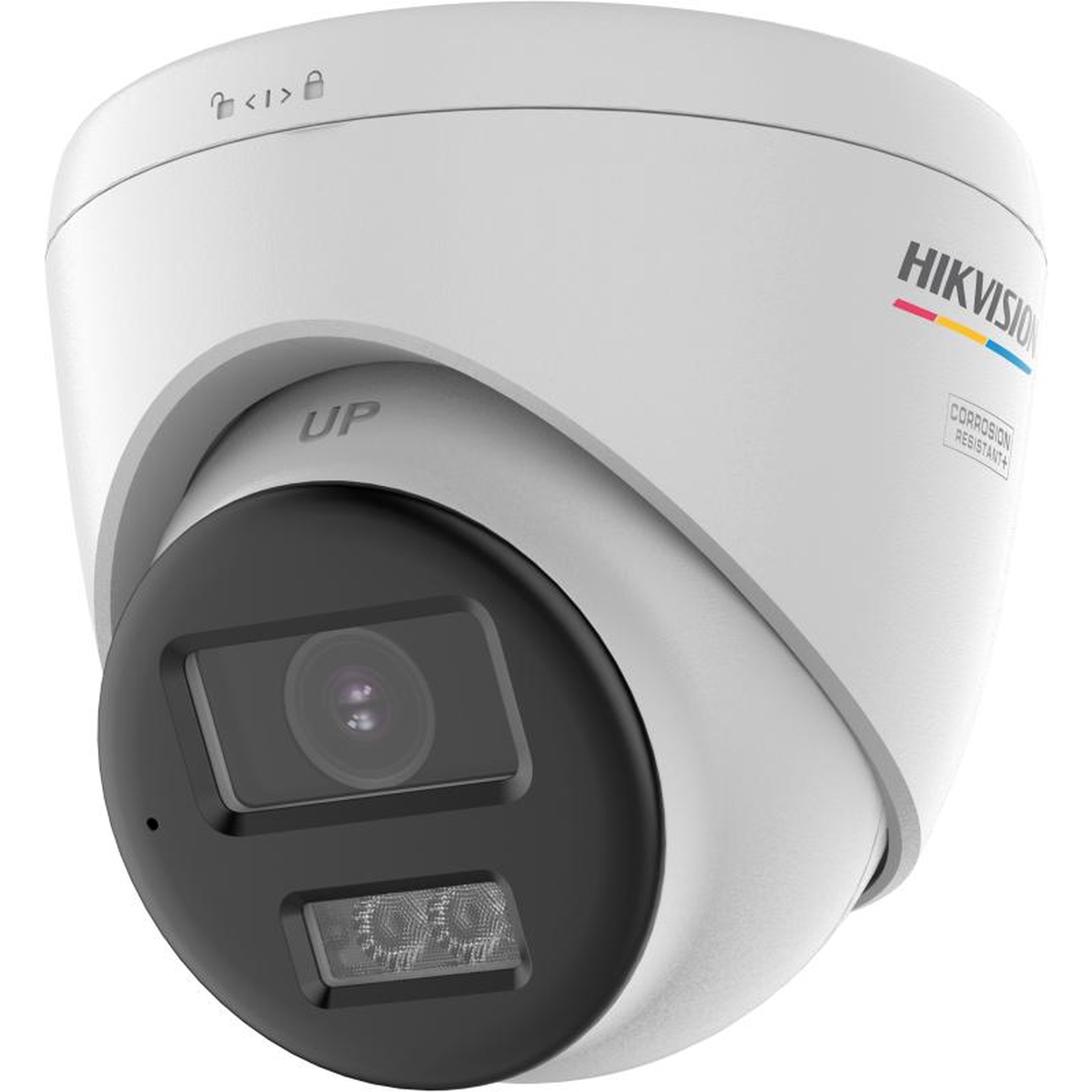

Hikvision 4K Smart Hybrid Light ColorVu Fixed Turret Camera

Hikvision DS-2CE72UF3T-LSYE - 4K Smart Hybrid Light ColorVu Fixed Turret Camera

The Hikvision DS-2CE72UF3T-LSYE is a 4K Smart Hybrid Light ColorVu Fixed Turret Camera from the Turbo HD ColorVu range. High quality imaging with 4K, 3840 × 2160 resolution. 24/7 colour imaging with F1.0 aperture. Smart-Hybrid light, optimise your security with flexible lighting options.

Key features

• High quality imaging with 4K, 3840 × 2160 resolution
• 24/7 colour imaging with F1.0 aperture
• Smart-Hybrid light, optimise your security with flexible lighting options
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• Up to 40 m white light and 40 m IR distance for bright night imaging
• Built-in mic, high quality audio with audio over coaxial cable
• Water and dust resistant (IP67)
• Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)

Technical specification

Image Sensor	4K CMOS
Max. Resolution	3840 (H) × 2160 (V)
Min. Illumination	0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time	PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
Day & Night	ICR
Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal System	PAL/NTSC
Lens Type	2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV	2.8 mm, horizontal FOV: 105°, vertical FOV: 60°, diagonal FOV: 132° | 3.6 mm, horizontal FOV: 90°, vertical FOV: 50°, diagonal FOV: 112°
Lens Mount	M16
Pickup Distance	In a radius of up to 5 m
Supplement Light Type	Smart, IR, White Light
Supplement Light Range	IR: Up to 40 m, | White Light: Up to 40 m
Image Parameters Switch	STD/HIGH-SAT/HIGHLIGHT
Image Settings	Saturation, Brightness, Contrast, Sharpness, Anti-banding, AGC
Frame Rate	TVI: 4K @12.5/15 fps, 3K@25/20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
Day/Night Mode	Auto/Colour
Wide Dynamic Range (WDR)	≥130 dB
Image Enhancement	BLC, HLC, Global, WDR, Face AE, HLS
Privacy Mask	4 programmable polygon privacy masks
Noise Reduction	3D DNR
White Balance	Auto, Manual
Video Output	1 HD analogue output
Motion Detection	4 programmable motion areas
Power	12 VDC ± 25%/PoC.at, max. 5.8 W, | *You are recommended to use one power adapter to supply the power for one camera.
Material	Main body: Metal, Enclosure: Plastic
Dimension	Ø110 mm × 93 mm (Ø4.33" × 3.66")
Weight	Approx. 370 g (0.82 lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
Communication	HIKVISION-C
Language	English
Protection	IP67
Anti-Corrosion Protection	NEMA 4X (NEMA 250-2018)

Downloads

• DS-2CE72UF3T-LSYE Data Sheet (PDF)
