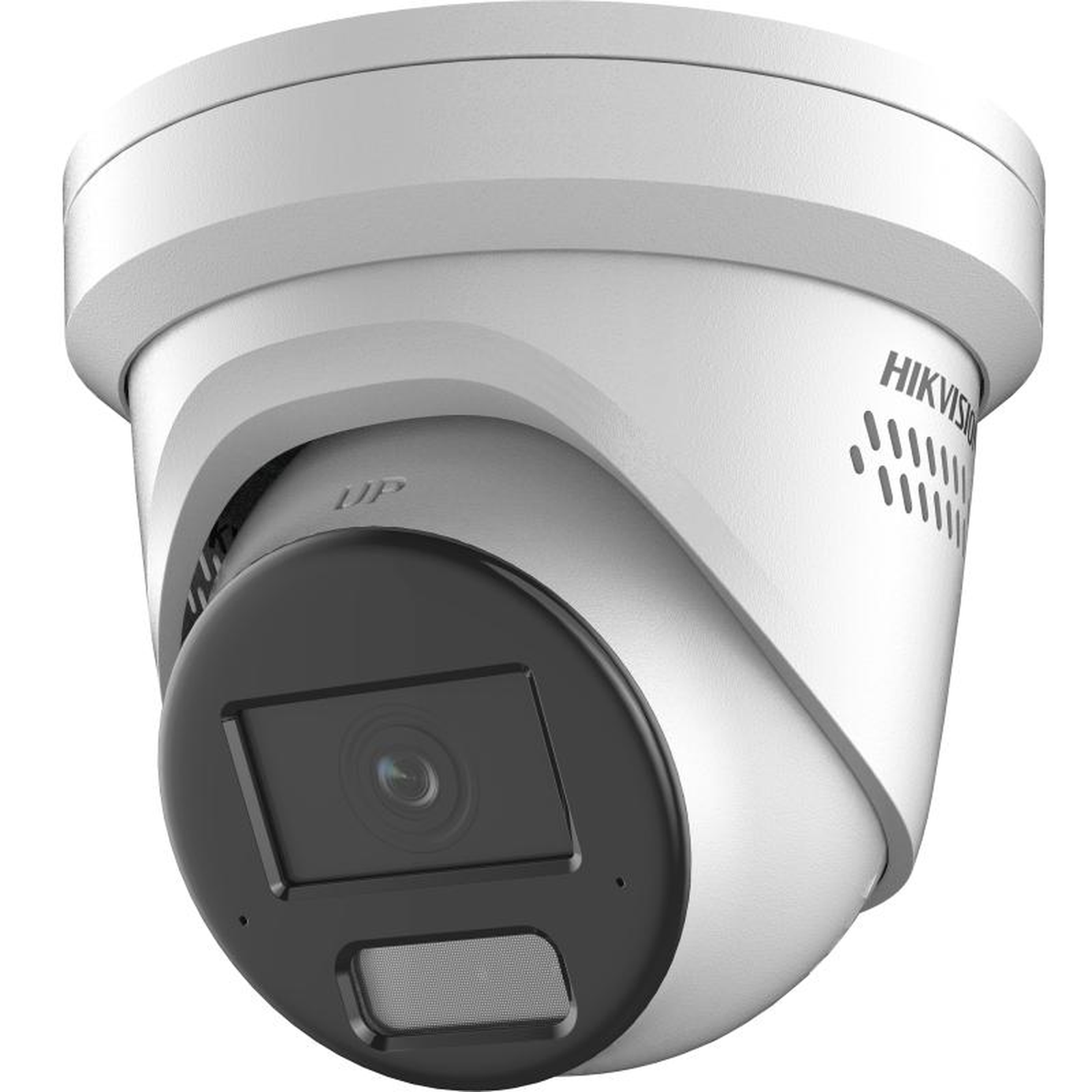

Hikvision DS-2CD2346G2H-IS2U/SL(2.8mm) 4MP AcuSense Strobe Light & Audible Warning Fixed Turret Network Camera

SKU: DS-2CD2346G2H-IS2U/SL(2.8mm)Brand: Hikvision
4.6store rating from 122 reviews
Stock available Qty Delivery
Poole0None in Poole
UK Hub2611 to 3 working days
Need help choosing? Our UK team can check compatibility, stock and project pricing for you. 0117 440 4505info@jemsystems.co.uk
Price:
Sale price£140.70
168.84 inc. VAT140.70 ex VAT
Stock:
In stock (261 units)
Delivery
1 to 3 working days
Ships from our UK supplier hub
Collect in Poole
Not stocked in Poole
Delivery only
Hikvision DS-2CD2346G2H-IS2U/SL(2.8mm) 4MP AcuSense Strobe Light & Audible Warning Fixed Turret Network Camera £140.70
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
American Express Apple Pay Google Pay KlarnaMaestroMastercard PayPalShop Pay Visa
Key featuresFull details
  • High quality imaging with 4 MP resolution
  • Clear imaging against strong back light due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle classification based on deep learning
  • Provide real-time security via built-in two-way audio
  • Active strobe light and audio alarm to warn intruders off

Product details

The Hikvision DS-2CD2346G2H-IS2U/SL(RB) is a 4MP AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera from the IP range. High quality imaging with 4 MP resolution. Clear imaging against strong back light due to 120 dB WDR technology. Efficient H.265+ compression technology.

Key features

  • High quality imaging with 4 MP resolution
  • Clear imaging against strong back light due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle classification based on deep learning
  • Provide real-time security via built-in two-way audio
  • Active strobe light and audio alarm to warn intruders off
  • Support on-board storage up to 512 GB (SD card slot)
  • Water and dust resistant (IP67)
  • Audio and alarm interface available

Technical specification

Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Colour: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 120° | 4 mm, horizontal FOV 81°, vertical FOV 45°, diagonal FOV 95°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
Depth of Field 2.8 mm: 1.9 m to ∞ | 4 mm: 2.5 m to ∞
DORI 2.8 mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m | 4 mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | *The third stream is supported under certain settings.
Video Compression Main stream: H.265/H.264/H.264+/H.265+, | Sub-stream: H.265/H.264/MJPEG, | Third stream: H.265/H.264, | *Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Type Mono sound
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK, ISUP
User/Host Up to 32 users | 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11, | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, | Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC,3D DNR, Defog
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 120 dB
Privacy Mask 4 programmable polygon privacy masks
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone Yes, 2 built-in microphones
Built-in Speaker Max. power consumption: 2 W, max. sound pressure level: 10 cm: 105 dB.
Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, | 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key Yes
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, strobe light
Smart Event | Scene change detection
Face Capture Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting | Support alarm triggering by specified target types (human and vehicle)
Power 12 VDC ± 25%, 1.34 A, max. 16 W,Ø5.5 mm coaxial power plug, reverse polarity protection, | PoE: IEEE 802.3at, Class 4, max. 18 W
Material | Cover: metal, main body: metal
Dimension Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
Package Dimension 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
Weight Approx. 780 g (1.71 lb.)
With Package Weight Approx. 1210 g (2.67 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Flashing Light /SRB model: Red and Blue Light | /SL model: White Light
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, | RCM: AS/NZS CISPR 32: 2015, | IC: ICES-003: Issue 7, | KC: KN32: 2015, KN35: 2015
Safety UL: UL 62368-1, | CB: IEC 62368-1: 2014+A11, | CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU, | WEEE: 2012/19/EU, | Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013

Downloads

Datasheets & documents

Hikvision DS-2CD2346G2H-IS2U/SL(2.8mm) datasheet (PDF)
