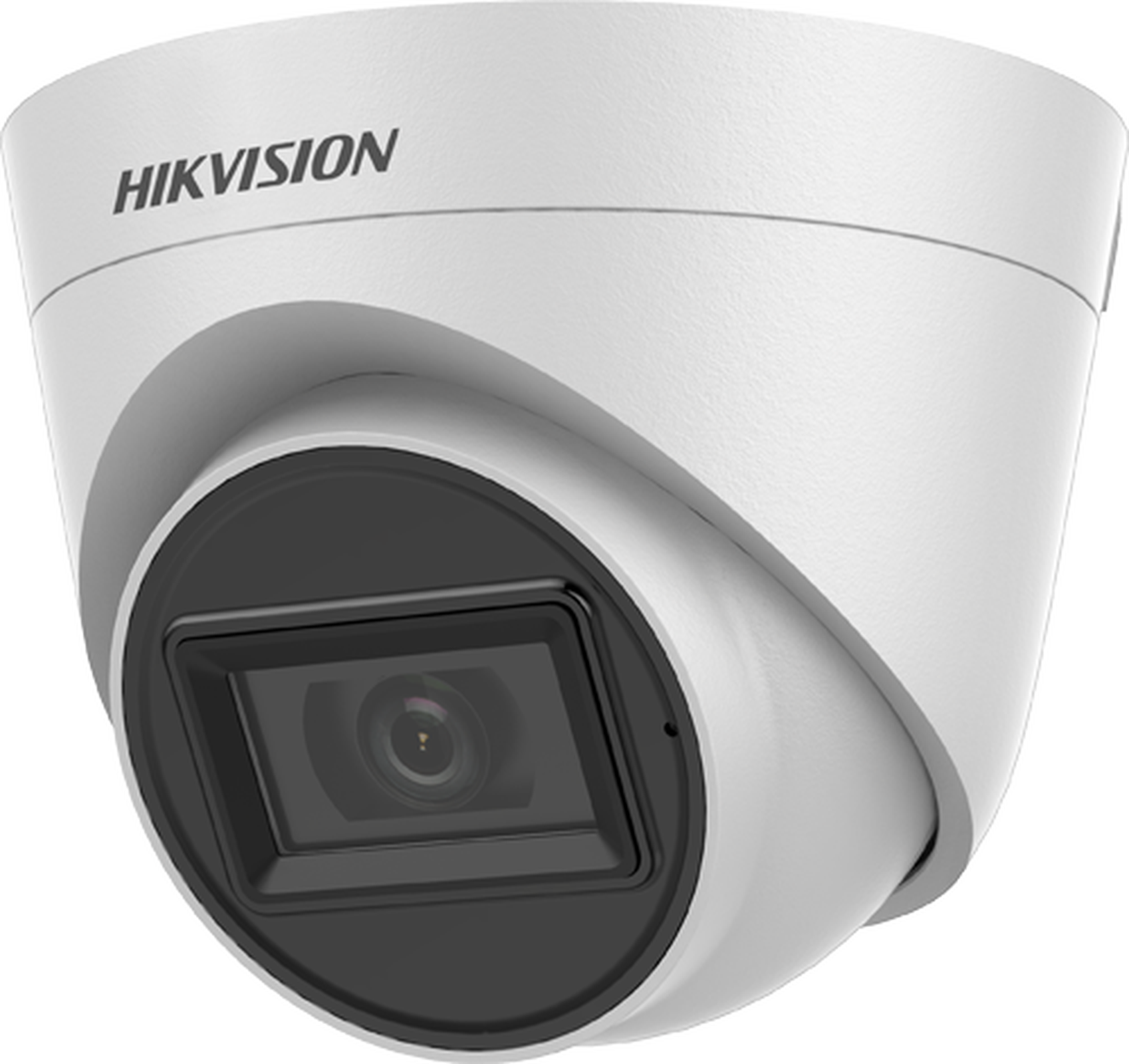

Hikvision 5MP Audio Fixed Turret Camera

Hikvision DS-2CE78H0T-IT3FS - 5 MP Audio Fixed Turret Camera

The Hikvision DS-2CE78H0T-IT3FS is a 5 MP Audio Fixed Turret Camera from the Turbo HD Value range. 5 MP, 2560 × 1944 resolution. Digital WDR. 2.8 mm, 3.6 mm, 6 mm fixed focal lens.

Key features

• 5 MP, 2560 × 1944 resolution
• Digital WDR
• 2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Smart IR, up to 40 m IR distance
• Audio over coaxial cable, built-in mic
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67

Technical specification

Image Sensor	5 MP CMOS
Max. Resolution	2560 (H) × 1944 (V)
Min. Illumination	0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50, 000 s | NTSC: 1/30 s to 1/50, 000 s
Day & Night	ICR
Angle Adjustment	Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
Signal System	PAL/NTSC
Lens Type	2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV	2.8 mm, horizontal FOV: 85.5°, vertical FOV: 63.7°, diagonal FOV: 110.7° | 3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9° | 6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°
Lens Mount	M12
Image Parameters Switch	STD/HIGH-SAT
Image Settings	Brightness, Sharpness, Mirror, Smart IR
Frame Rate	TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps | CVI: 4MP@30fps, 4MP@25fps | AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps | CVBS: PAL/NTSC
Day/Night Mode	Auto/Colour/BW (Black and White)
Wide Dynamic Range (WDR)	Digital WDR
White Balance	ATW/MANUAL
AGC	Support
Video Output	Switchable TVI/AHD/CVI/CVBS
Material	Enclosure: Plastic | Main Body: Metal
Dimension	Φ 109.82 mm × 91.03 mm (Φ 4.32" × 3.6")
Weight	Approx. 300 g (0.66 lb.)
Operating Condition	-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
Communication	HIKVISION-C
Language	English
Power Supply	12 VDC ± 25% | *You are recommended to use one power adapter to supply the power for one camera.
Consumption	Max. 3.7 W |
IR Range	Up to 40 m
Protection	IP67

Downloads

• DS-2CE78H0T-IT3FS Data Sheet (PDF)
