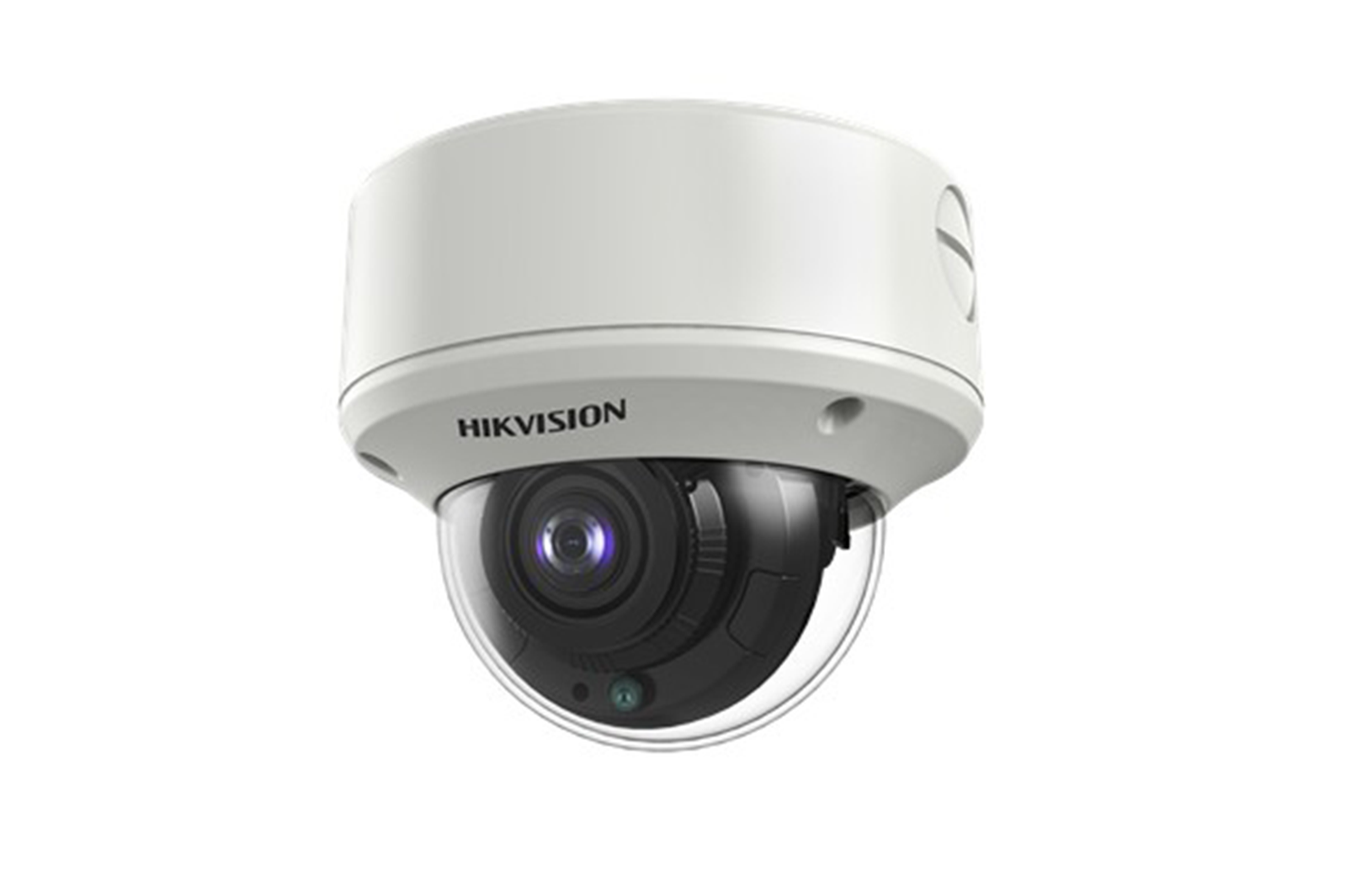

Hikvision DS-2CE59H8T-AVPIT3ZF - 5 MP Ultra Low Light Vandal Motorized Varifocal Dome Camera
The Hikvision DS-2CE59H8T-AVPIT3ZF is a 5 MP Ultra Low Light Vandal Motorized Varifocal Dome Camera from the Turbo HD Pro range. 5 MP high performance dome camera. Strong night performance, capturing images in ultra-low light down to 0.003 lux. Clear imaging even against strong back lighting due to 130 dB true WDR technology.
Key features
- 5 MP high performance dome camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Lens focuses automatically when zooming in or out
- EXIR 2.0: advanced infrared technology with 60 m IR distance
- Water and dust resistant (IP67) and vandal proof (IK10)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Technical specification
| Image Sensor |
5 megapixel progressive scan CMOS |
| Max. Resolution |
2560 (H) × 1944 (V) |
| Min. Illumination |
Colour: 0.003 Lux@(F1.38, AGC ON), 0 Lux with IR |
| Shutter Time |
PAL: 1/25 s to 1/50,000 s | NTSC: 1/30 s to 1/50,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355° |
| Signal System |
PAL/NTSC |
| Lens Type |
2.7 mm to 13.5 mm motorized varifocal lens |
| Focal Length & FOV |
92.3° to 29.3° |
| Lens Mount |
Φ 14 |
| Image Settings |
Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
| Frame Rate |
TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps, AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps, CVI: 4 MP@25fps, 4 MP@30fps, CVBS: PAL, NTSC |
| Day/Night Mode |
Auto/Colour/BW (Black and White) |
| Wide Dynamic Range (WDR) |
≥ 130 dB |
| Image Enhancement |
BLC |
| Privacy Mask |
4 programmable privacy masks |
| Noise Reduction |
Level 1 to 9 |
| White Balance |
Auto/Manual |
| AGC |
Yes |
| Video Output |
1 HD analogue output, TVI/AHD/CVI/CVBS |
| Motion Detection |
4 programmable areas |
| Material |
Metal |
| Dimension |
Φ 145.2 mm × 124.1 mm (Φ 7.1" × 4.9") |
| Weight |
Approx. 640 g (1.41 lb.) |
| Operating Condition |
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing) |
| Communication |
Up the coax, Protocol: HIKVISION-C (TVI output) |
| Language |
English |
| Power Supply |
-A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC |
| Consumption |
-A: Max. 8 W |
| IR Range |
Up to 60 m |
| Protection |
IP67, IK10 |
