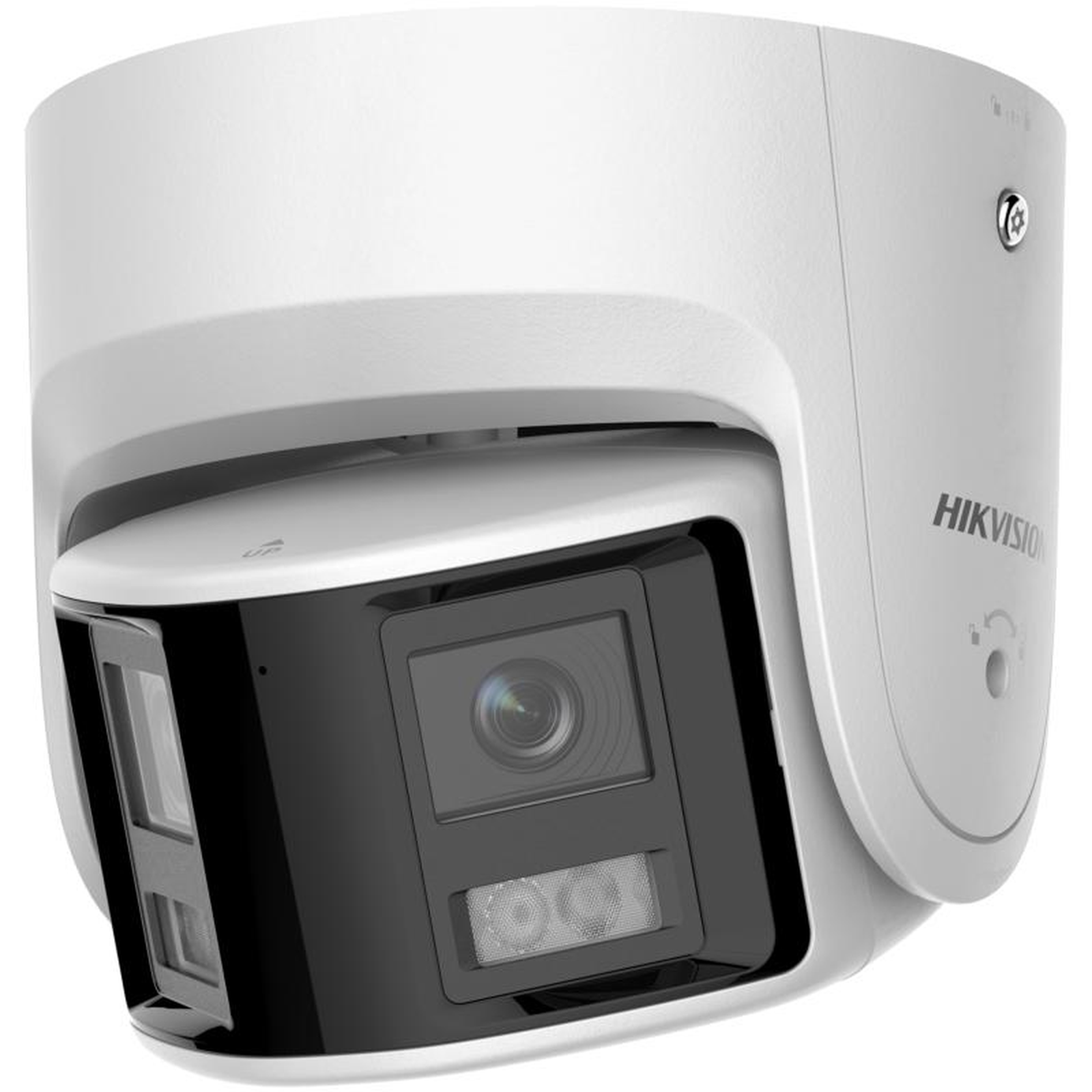

Hikvision DS-2CD2366G2P-ISU/SL(2.8mm)(C) 6MP Panoramic AcuSense Fixed Turret Network Camera
SKU: DS-2CD2366G2P-ISU/SL(2.8mm)(C)Brand: Hikvision
Key featuresFull details
- High quality imaging with 6 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- One image that presents all the scenes covered by the camera
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 1 | Next working day |
| UK Hub | 53 | 2 to 3 working days |
Hikvision DS-2CD2366G2P-ISU/SL(2.8mm)(C) 6MP Panoramic AcuSense Fixed Turret Network Camera
£164.45
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Frequently bought together
Hikvision
Hikvision DS-2CD2T67G2P-LSU/SL(2.8mm)(C) 6MP Panoramic ColorVu Fixed Bullet Network Camera
Sale price£239.35
In stock
Hikvision
Hikvision 6MP Panoramic ColorVu Fixed Turret Network Camera
Sale price£226.60
Pre-Order (Not in Stock)
- Estimated Lead Time: 3-16 Weeks.
Hikvision
Hikvision DS-2CD2166G2H-ISU(2.8mm) 6MP Powered by Darkfighter Fixed Dome Network Camera
Sale price£154.95
In stock
Hikvision
Hikvision DS-2CD2366G2H-IU(2.8mm)(BLACK) 6MP Powered by Darkfighter Fixed Turret Network Camera Black
Sale price£146.20
In stock
Hikvision
Hikvision DS-2DE7A432IW-AEB(T5) 7" 4MP 32x Powered by DarkFighter IR Network Speed Dome
Sale price£615.95
Pre-Order (Not in Stock)
- Estimated Lead Time: 3-16 Weeks.
Product details
The Hikvision DS-2CD2366G2P-ISU/SL is a 6MP 180° panoramic camera with dual 2.8mm lenses stitched into one image, plus AcuSense, strobe light and audio deterrence.
The Hikvision DS-2CD2366G2P-ISU/SL is a 6 MP Panoramic AcuSense Fixed Turret Network Camera from the IP range. High quality imaging with 6 MP resolution. Excellent low-light performance with powered-by-DarkFighter technology. One image that presents all the scenes covered by the camera.
Key features
- High quality imaging with 6 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- One image that presents all the scenes covered by the camera
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
Technical specification
| Image Sensor | 2 × 1/2.5" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 3632 × 1632 |
| Min. Illumination | Colour: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 30°, tilt: -75° to 75° |
| Lens Type | Fixed focal lens, dual lens: 2.8 mm |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 180°, vertical FOV: 81° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 mm, D: 42 m, O: 16.5 m, R: 8 m, I: 4 m |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 20 fps (3632 × 1632) | 60 Hz: 20 fps (3632 × 1632) |
| Sub-Stream | 50 Hz: 20 fps (1200 × 536, 960 × 432) | 60 Hz: 20 fps (1200 × 536, 960 × 432) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 | Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
| User/Host | Up to 32 users | 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE11, | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, | Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC,3D DNR |
| Privacy Mask | 8 rectangular privacy masks |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Yes |
| Built-in Speaker | Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB |
| Audio | 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, | 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 24 VDC, 1 A) |
| Reset Key | Yes |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception |
| Smart Event | | Scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting | Support alarm triggering by specified target types (human and vehicle) |
| Power | 12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug, | PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W |
| Material | | Base: metal, cover: metal |
| Dimension | | Ø140 mm × 145.6 mm (Ø5.5" × 5.7") |
| Package Dimension | 230 mm × 230 mm × 230 mm (9" × 9" × 9") |
| Weight | Approx. 940 g (2.1 lb.) |
| With Package Weight | Approx. 1700 g (3.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-banding, heartbeat, flash log, pixel counter |
| Flashing Light | Yes |
| EMC | FCC: 47 CFR Part 15, Subpart B, | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, | RCM: AS/NZS CISPR 32: 2015, | IC: ICES-003: Issue 7 |
| Safety | UL: UL 62368-1, | CB: IEC 62368-1: 2014+A11, | CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU, | WEEE: 2012/19/EU, | Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
Downloads
- DS-2CD2366G2P-ISU/SL Data Sheet (PDF)
- DS-2CD2366G2P-ISU/SL Quick Start Guide (PDF)
- DS-2CD2366G2P-ISU/SL User Manual (PDF)
- DS-2CD2366G2P-ISU/SL Installation Guide (PDF)
Used for: car parks, warehouses, retail floors and building corners where one camera replaces several fixed views.
Frequently asked questions
What field of view does it cover?
Horizontal 180° and vertical 81° from dual 2.8mm lenses, presented as a single image.
How is it powered?
12V DC or PoE (IEEE 802.3af, Class 3, max. 12.5W).
Does it have two-way audio?
Yes. It has a built-in microphone and speaker for real-time two-way audio and audible warnings.
