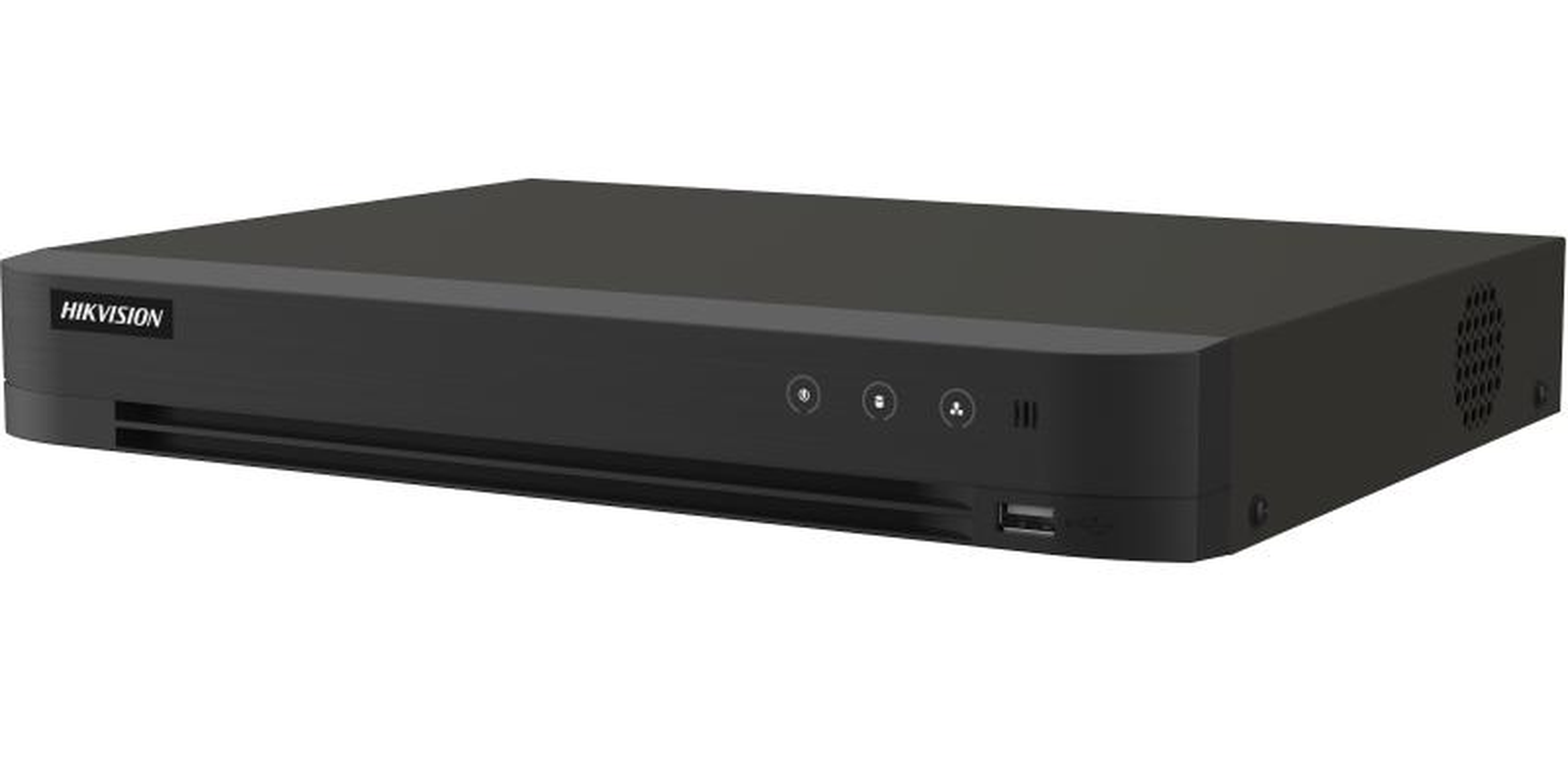

Hikvision iDS-7208HUHI-M1/XT/4A+8/4ALM 8 Channel 5MP 1U H.265 AcuSense DVR

Hikvision iDS-7208HUHI-M1/XT - 8-ch 5 MP 1U H.265 AcuSense DVR

The Hikvision iDS-7208HUHI-M1/XT is an 8-ch 5 MP 1U H.265 AcuSense DVR from the Turbo HD AcuSense range. 8 channels and 1 HDD 1U AcuSense DVR. Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm. Support 8-ch AcuSearch Technology.

Key features

• 8 channels and 1 HDD 1U AcuSense DVR
• Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
• Support 8-ch AcuSearch Technology
• Encoding ability up to 4K/8MP @ 8fps; 3K/5MP @12fps
• Up to 16 channels IP camera inputs, each channel up to 8MP
• Up to 24*1080P@30fps decoding ability
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Support All channels Motion Detection Technology
• Support All channels HDTVI Two-Way Audio Technology

Technical specification

Human/Vehicle Analysis	Up to 8-ch (advanced model)
Facial Detection and Capture	Face picture detection, face picture search； | 4-ch face picture capture
Face Picture Library	Up to 16 face picture libraries; | HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
Face Picture Comparison	4-ch face picture comparison alarm (HD analogue camera)
IP Video Input	8-ch (up to 16-ch), each up to 8MP
Analog Video Input	8-ch | BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output	1-ch, 4K (3840 × 2160)/30Hz, | 2K (2560 × 1440)/60Hz, | 1920 × 1080/60Hz, | 1280 × 1024/60Hz, | 1280 × 720/60Hz | HDMI/VGA simultaneous output
VGA Output	1-ch, 1920 × 1080/60Hz, | 1280 × 1024/60Hz, | 1280 × 720/60Hz | HDMI/VGA simultaneous output
CVBS Input	PAL/NTSC
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 Ω), | resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous Playback	8-ch
HDTVI Input	8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
AHD Input	5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
HDCVI Input	8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Audio Input	1-ch(up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate	Main stream: | 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps | 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) | Sub-stream: | WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate	32 Kbps to 10 Mbps
Dual-stream	Support main stream or sub stream
Stream Type	Video, Video & Audio
Audio Compression	G.711u
Audio Bitrate	64 Kbps
Decoding Capability	up to 24-ch 1080P@30fps
Total Bandwidth	256 Mbps
Network Protocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Remote Connection	64
Network Interface	1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
SATA	1 SATA interface
Capacity	up to 12 TB capacity for each disk
Serial Interface	RS-485 (half-duplex)
USB Interface	Front panel: 1 × USB 2.0; | Rear panel: 2 × USB 3.0
Alarm In/Out	N/A (optional to support)
Power Supply	12 VDC, 2 A
Consumption	≤ 24 W
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10% to 90%
Dimension (W × D × H)	319 × 240 × 48 mm (12.6 × 9.4 × 1.9 inch)
Weight	≤ 2 kg (4.4 lb)
