Hikvision 8-Port Fast Ethernet Smart PoE Switch

SKU: DS-3E1309P-EI(B)Brand: Hikvision
4.6store rating from 122 reviews
Stock available Qty Delivery
Poole0None in Poole
UK Hub741 to 3 working days
Need help choosing? Our UK team can check compatibility, stock and project pricing for you. 0117 440 4505info@jemsystems.co.uk
Price:
Sale price$99.00
118.80 inc. VAT99.00 ex VAT
Stock:
In stock (74 units)
Delivery
1 to 3 working days
Ships from our UK supplier hub
Collect in Poole
Not stocked in Poole
Delivery only
Hikvision 8-Port Fast Ethernet Smart PoE Switch $99.00
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
American Express Apple Pay Google Pay KlarnaMaestroMastercard PayPalShop Pay Visa
Key featuresFull details
  • 8 x 10/100M PoE ports and 1 x gigabit RJ45 uplink port
  • 110W total PoE budget, up to 30W per port (IEEE 802.3af/at)
  • Long range PoE transmission up to 300m on ports 1 to 8
  • PoE watchdog detects and restarts cameras that do not respond
  • 802.1Q VLAN, port isolation, LLDP and port mirroring
  • STP/RSTP loop prevention

Frequently bought together

Product details

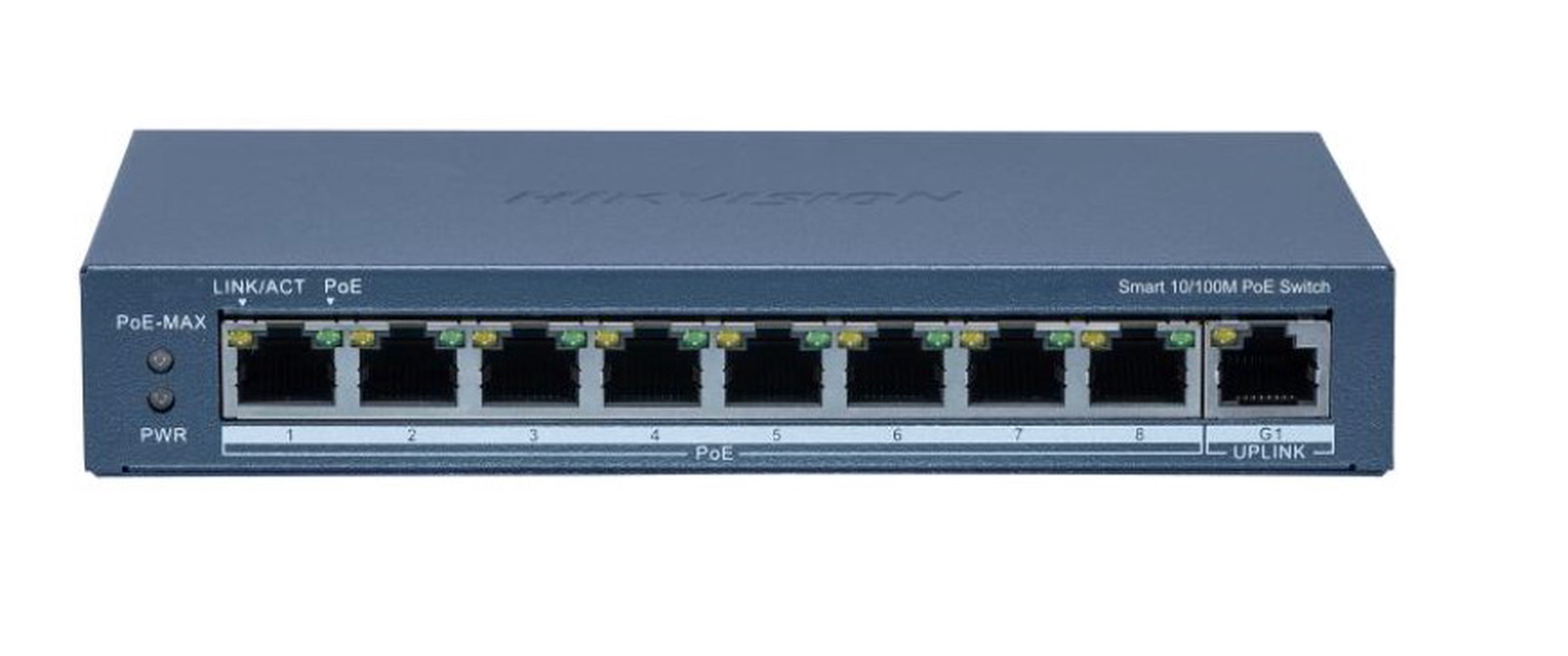

The Hikvision DS-3E1309P-EI(B) is a smart managed PoE switch with eight 10/100M PoE ports and one gigabit RJ45 uplink. It has a 110W total PoE budget, enough to power a typical small IP CCTV system, and supports up to 30W per port. Long range mode sends PoE and data up to 300m, and the PoE watchdog restarts cameras that stop responding.

Key features

  • 8 x 10/100M PoE ports and 1 x gigabit RJ45 uplink port
  • 110W total PoE budget, up to 30W per port (IEEE 802.3af/at)
  • Long range PoE transmission up to 300m on ports 1 to 8
  • PoE watchdog detects and restarts cameras that do not respond
  • 802.1Q VLAN, port isolation, LLDP and port mirroring
  • STP/RSTP loop prevention
  • Cable detection to help locate faults
  • 6kV surge protection
  • Web management, plus Hik-Central Pro and Hik-Partner Pro support for remote management

Technical specifications

  • Model: DS-3E1309P-EI(B)
  • Ports: 8 x 10/100M PoE RJ45, 1 x 10/100/1000M RJ45 uplink
  • PoE standards: IEEE 802.3af, IEEE 802.3at
  • PoE budget: 110W total, max 30W per port
  • Switching capacity: 5.6Gbps
  • Packet forwarding rate: 4.17Mpps
  • MAC address table: 8K
  • VLAN: 802.1Q, IDs 1 to 4094
  • Power supply: 54V DC, 2.22A adapter
  • Power consumption: max 120W, idle 10W
  • Dimensions: 170 x 27.6 x 93.1mm (W x H x D)
  • Weight: 0.35kg
  • Operating temperature: 0°C to +40°C

Datasheets & documents

Hikvision DS-3E1309P-EI(B) datasheet (PDF)
