Hikvision AX PRO Wireless Control Panel Kit Light Level

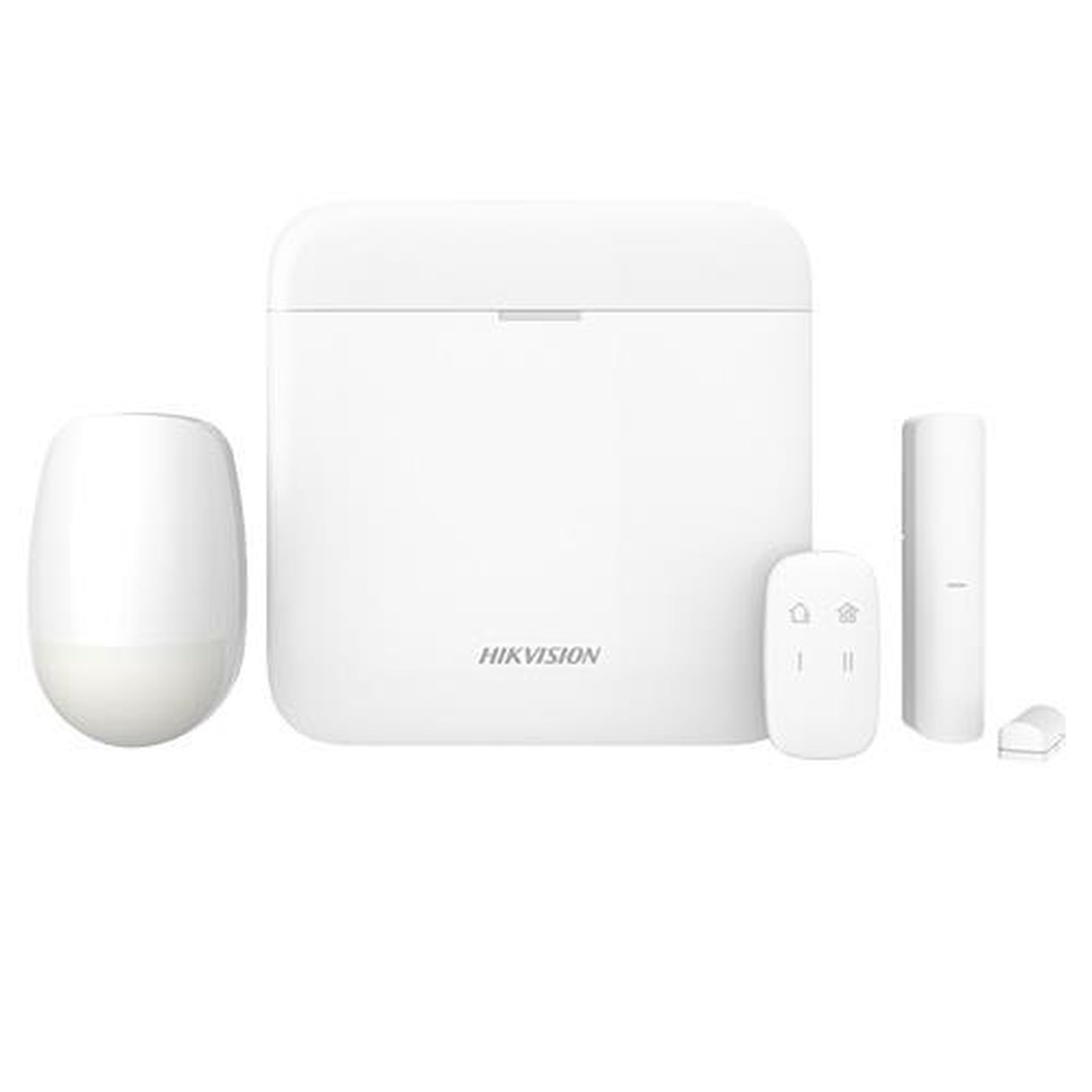

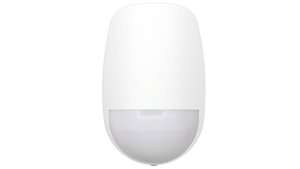

The Hikvision DS-PWA64-KIT-WE is an AX PRO 868 MHz wireless intruder alarm kit built around the DS-PWA64-L-WE (AX PRO L) control panel. The kit comprises the DS-PWA64-L-WE control panel, DS-PKF1-WE keyfob, DS-PDP15P-EG2-WE PIR detector and DS-PDMC-EG2-WE magnetic door contact.

The AX PRO panel uses Hikvision's Tri-X two-way wireless protocol with AES-128 encryption. It communicates over LAN, Wi-Fi and GPRS, and it can be set up through Hik-Connect, Hik-ProConnect, a web portal or iVMS-4200. The control panel specifications below are for the AX PRO L model.

Key features

• Two-way 868 MHz wireless with AES-128 encryption and frequency hopping
• LAN, 2.4 GHz Wi-Fi and GPRS on board
• Up to 64 wireless zones, 32 keyfobs and 32 tags
• Voice prompts and built-in loudspeaker
• Push notifications, SMS and alarm voice calls
• Reports to an alarm receiving centre using SIA DC-09 (SIA level 2, Contact ID)
• Built-in lithium backup battery, 12 hours standby
• EN50131 Grade 2

Technical specifications

• Control panel: DS-PWA64-L-WE (AX PRO L)
• Frequency: 868 MHz, two-way wireless
• Wireless zones: up to 64
• Wireless tag readers and keypads: up to 8
• Wireless sounders: 4
• Wireless keyfobs: 32
• Wireless repeaters: 2
• Tags: 32
• Users: 1 installer, 1 admin, 30 users
• Areas: 16
• Event log: 5000 events
• Communication: LAN, Wi-Fi (2.4 GHz), GPRS, single SIM slot
• ARC protocols: SIA DC-09 (SIA level 2, Contact ID), ISUP, ISAPI
• Standby: 12 hours (built-in lithium battery)
• Approval: EN50131 Grade 2
• Operating temperature: -10 °C to +55 °C
• Panel dimensions: 170 × 170 × 38.6 mm
• Panel weight: 557.5 g
