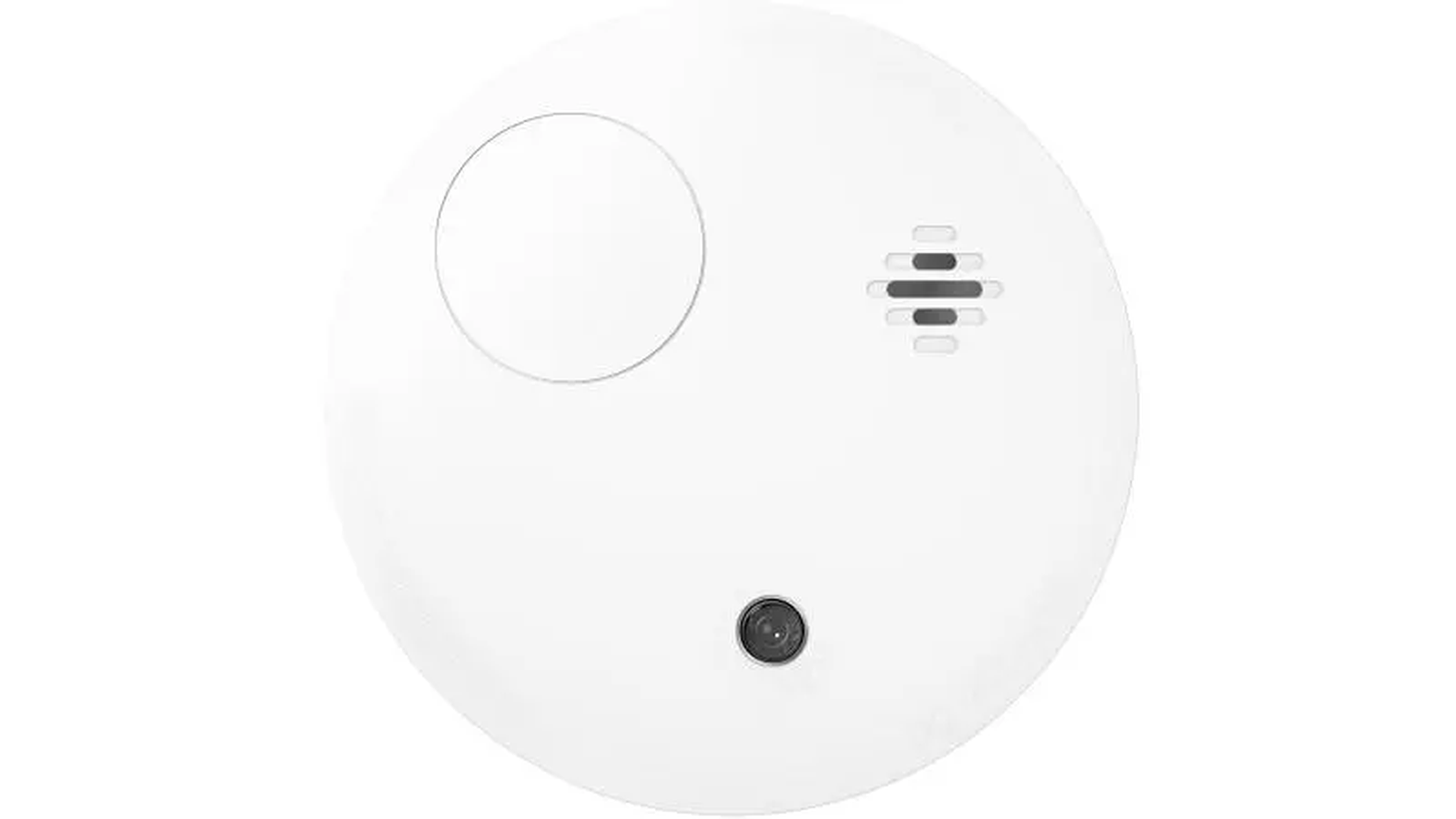

The Hikvision DS-PDSMK-E-WE is a wireless optical smoke detector for the Hikvision AX PRO alarm system. It uses a photoelectric sensing chamber and talks to the AX PRO panel over two-way 868 MHz radio.
Key features
- High-quality chamber with photoelectric sensor
- Up to 10 years battery life (standalone sensor)
- Rear tamper protection
- Two-way RF wireless, 868 MHz, AES-128 encryption
- Up to 1.6 km transmission range (free space)
- Built-in buzzer, ≥ 85 dB at 3 m
- Alarm sound interlink
- Signal strength indicator and self-health check
- Enrol by power up, Remote ID or QR code
Technical specifications
- Model: DS-PDSMK-E-WE
- Detection method: chamber with photoelectric sensor
- Tamper protection: rear
- Transmission: two-way RF wireless, 868 MHz
- Transmission security: AES-128 encryption
- Transmission range (free space): 1.6 km
- Buzzer: ≥ 85 dB @ 3 m
- LED indicator: red (alarm)
- Battery life: 10 years for standalone sensor; 5 years for RF wireless
- Batteries: non-replaceable Energizer L91 × 2 (sensor); replaceable CR123A × 1 (RF wireless)
- Typical voltage: 3 V
- Operating temperature: -10 °C to 50 °C
- Operating humidity: 5% to 90%
- Mounting: ceiling, indoor
- Dimensions: Ø120 × 48 mm
- Weight: 190.5 g
