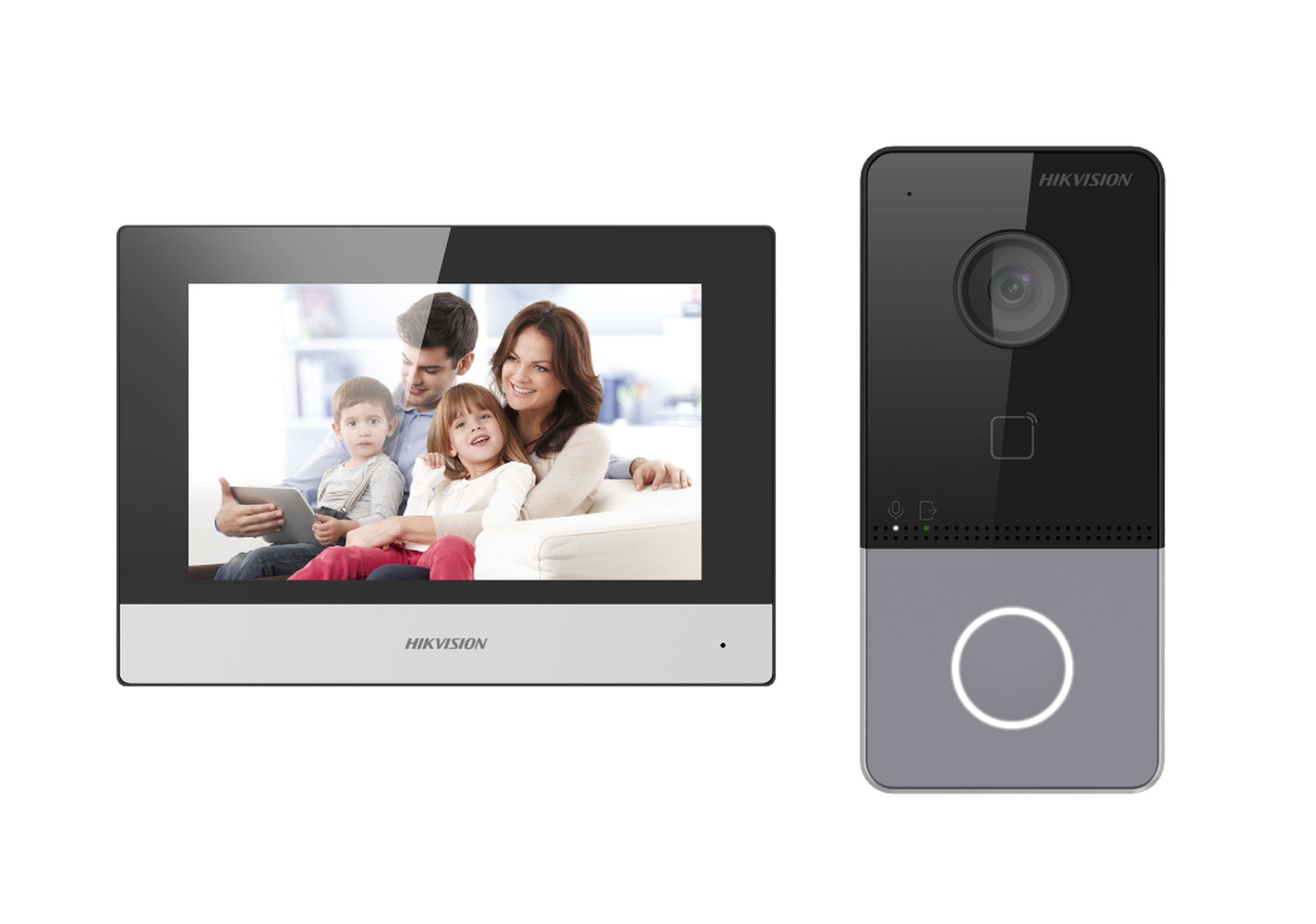

Hikvision DS-KIS603-P(C) - IP Video Intercom Kit
The Hikvision DS-KIS603-P(C) is an IP Video Intercom Kit from the Video Intercom range. IP video intercom for villa or house. One call button for easier calls. Convenient Hik-Connect APP Mobile Control.
Key features
- IP video intercom for villa or house
- One call button for easier calls
- Convenient Hik-Connect APP Mobile Control
- Including: DS-KV6113-WPE1(C) x1, DS-KH6320-WTE1 x1, DSKABV6113-RS × 1, Administrator card x 1, Key fob x 5, PSU x2
Technical specification
| Operation system |
Embedded Linux operation system |
| Flash |
32 MB |
| RAM |
256MB |
| Camera |
2MP HD camera |
| Night vision |
Low illumination IR supplement mode:3 m |
| Backlight compensation |
Support |
| Digital noise reduction |
Support |
| WDR |
True WDR |
| Field of view |
Horizontal: 131° Vertical: 78° |
| Video Compression Standard |
H.264; H.265; MJPEG |
| Stream |
Main stream: 1080p@25fps, 720p@25fps Sub stream: 720@25fps,480@25fps |
| Motion detection |
Support |
| Flash-avoid frequency |
50 Hz, 60 Hz |
| Audio input |
Built-in omnidirectional microphone |
| Audio output |
Built-in loudspeaker |
| Audio quality |
Noise suppression and echo cancellation |
| Audio compression standard |
G.711 U |
| Audio compression Rate |
64 Kbps |
| Network protocol |
TCP/IP, RTSP, IPV6, ONVIF |
| Wired network |
10/100 Mbps Ethernet |
| RS-485 |
1 |
| Alarm input |
8-ch alarm inputs |
| Debugging port |
1 |
| TAMPER switch |
1 |
| Power consumption |
≤ 6 W |
| Working temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity |
10% to 90% |
| Dimension |
138 mm × 65 mm × 27 mm |
| Installation |
Surface mounting |
| Protection level |
IP65 |
| Indicator |
2 |
| Power supply |
IEEE802.3af, standard PoE | 12 VDC |
| Memory |
128 MB |
| Flash |
32 MB |
| Display screen |
7-inch colourful TFT screen |
| Display resolution |
1024 × 600 |
| Operation method |
Capacitive touch screen |
| Wired network |
10/100 Mbps self-adaptive |
| Wireless network |
Wi-Fi 802.11 b/g/n |
| Protocol |
TCP/IP, SIP, RTSP |
| RS-485 |
1 |
| Relay output |
2 |
| TF card |
Max to 32 G, SD 2.0 or lower version |
| Dimension (L x W x H) |
200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6") |
