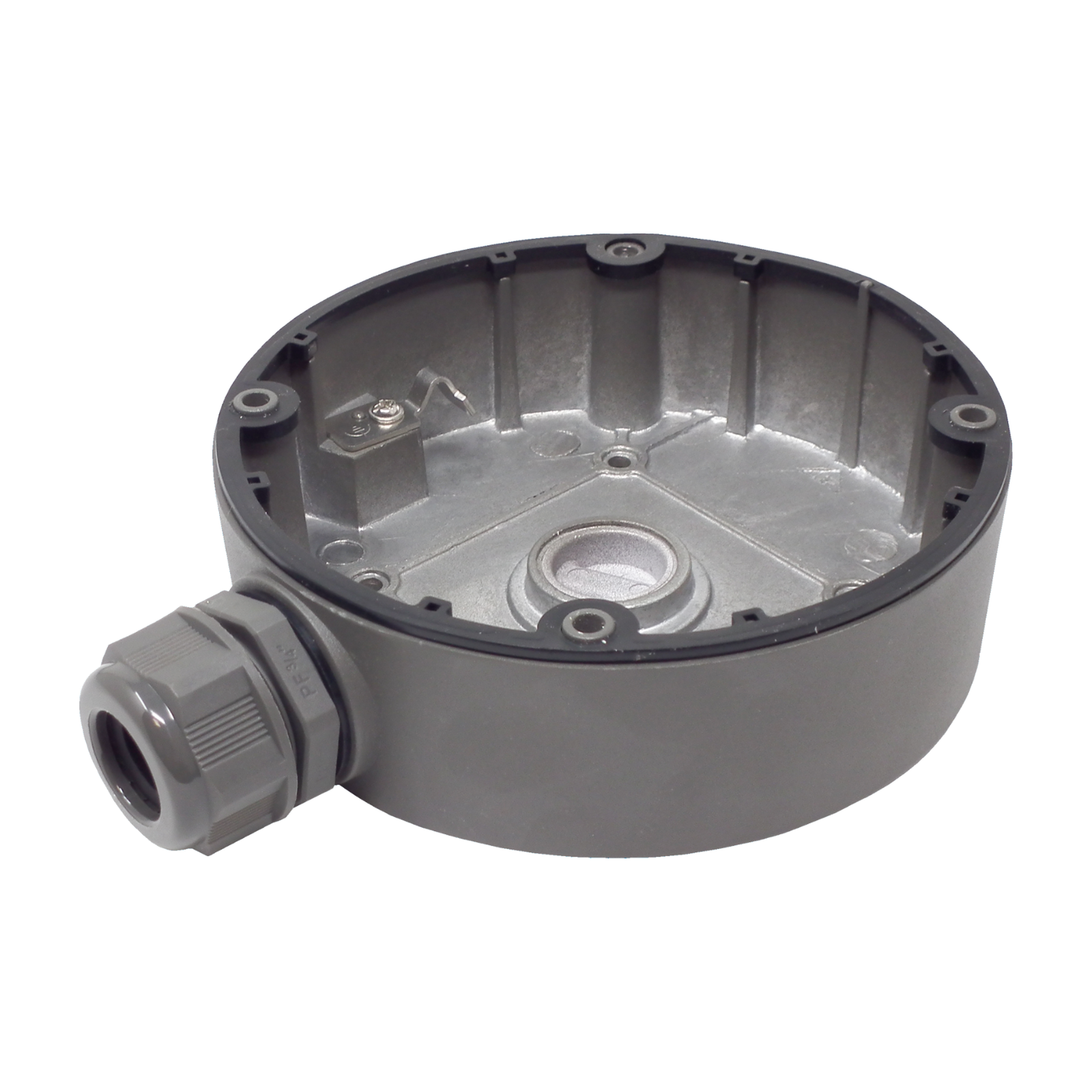

The Hikvision DS-1280ZJ-DM21 is an aluminium alloy junction box for Hikvision dome cameras with both side and bottom cable entry. The bottom waterproof cover and side gland nut are interchangeable, so cables can enter from whichever direction suits the installation. This listing is the grey version.
Key features
- Aluminium alloy with surface spray treatment
- Side and bottom cable inlets
- Interchangeable bottom waterproof cover and side gland nut
- Waterproof design
- Maximum load capacity 4.5 kg
- Install on a flat surface; waterproof rubber is required for outdoor installation
- The mounting surface must be capable of supporting at least three times the combined weight of the camera and mount.
Technical specifications
-
Model: DS-1280ZJ-DM21 (grey)
-
Description: Junction box for dome cameras
-
Colour: Grey
-
Material: Aluminium alloy
-
Dimensions: Ø137 × 42 mm
-
Weight: 280 g
-
Maximum load: 4.5 kg
