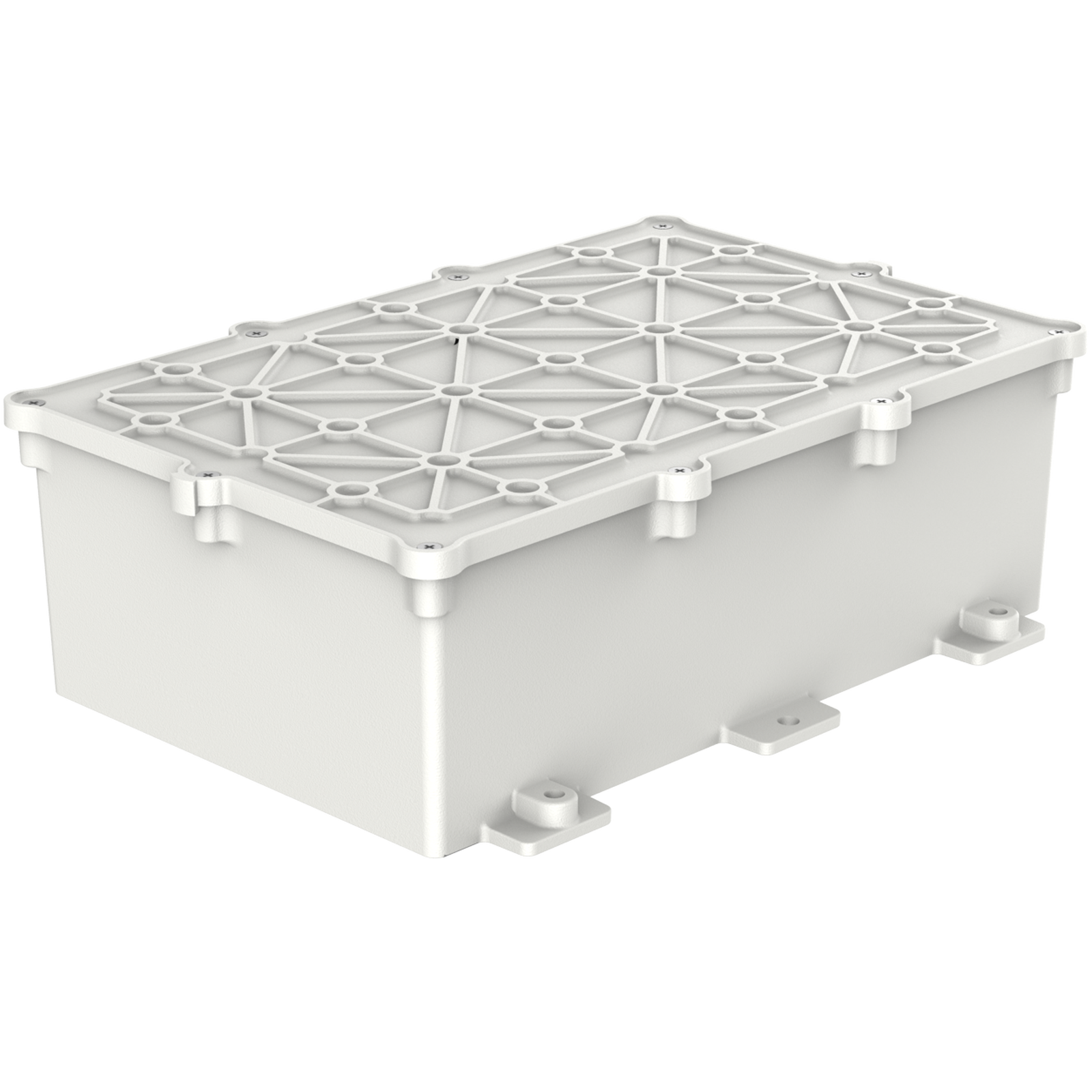

Hikvision Lithium Battery for Solar Kit

The Hikvision DS-2FSCH30 is a 30 Ah rechargeable lithium battery for Hikvision solar power kits. It has an IP68 aluminium alloy housing, a built-in heater and an MPPT solar power controller.

Key features

• 30 Ah rechargeable lithium battery
• Built-in MPPT solar power controller
• Built-in heater
• IP68 aluminium alloy housing (1.5 m, 72 h)
• More than 500 charge cycles
• RS-485, Ø5.5 mm coaxial power plug and M8 aviation plug interfaces

Technical specifications

• Model: DS-2FSCH30
• Battery type: lithium
• Battery voltage: 10.8 V
• Capacity: 30 Ah
• Max. charging voltage: 12.6 V
• Solar controller: MPPT, fully charged voltage 12.6 VDC, max. output current 8 A
• Battery life: more than 500 cycles
• Charging temperature: -20 °C to 45 °C
• Discharging temperature: -20 °C to 60 °C
• Storage temperature: -20 °C to 60 °C
• Protection: IP68 (1.5 m, 72 h)
• Interfaces: 1 × RS-485 (half duplex), Ø5.5 mm coaxial power plug, M8 aviation plug
• Housing: aluminium alloy
• Dimensions: 236 × 154 × 80 mm
• Weight: approx. 3.3 kg
