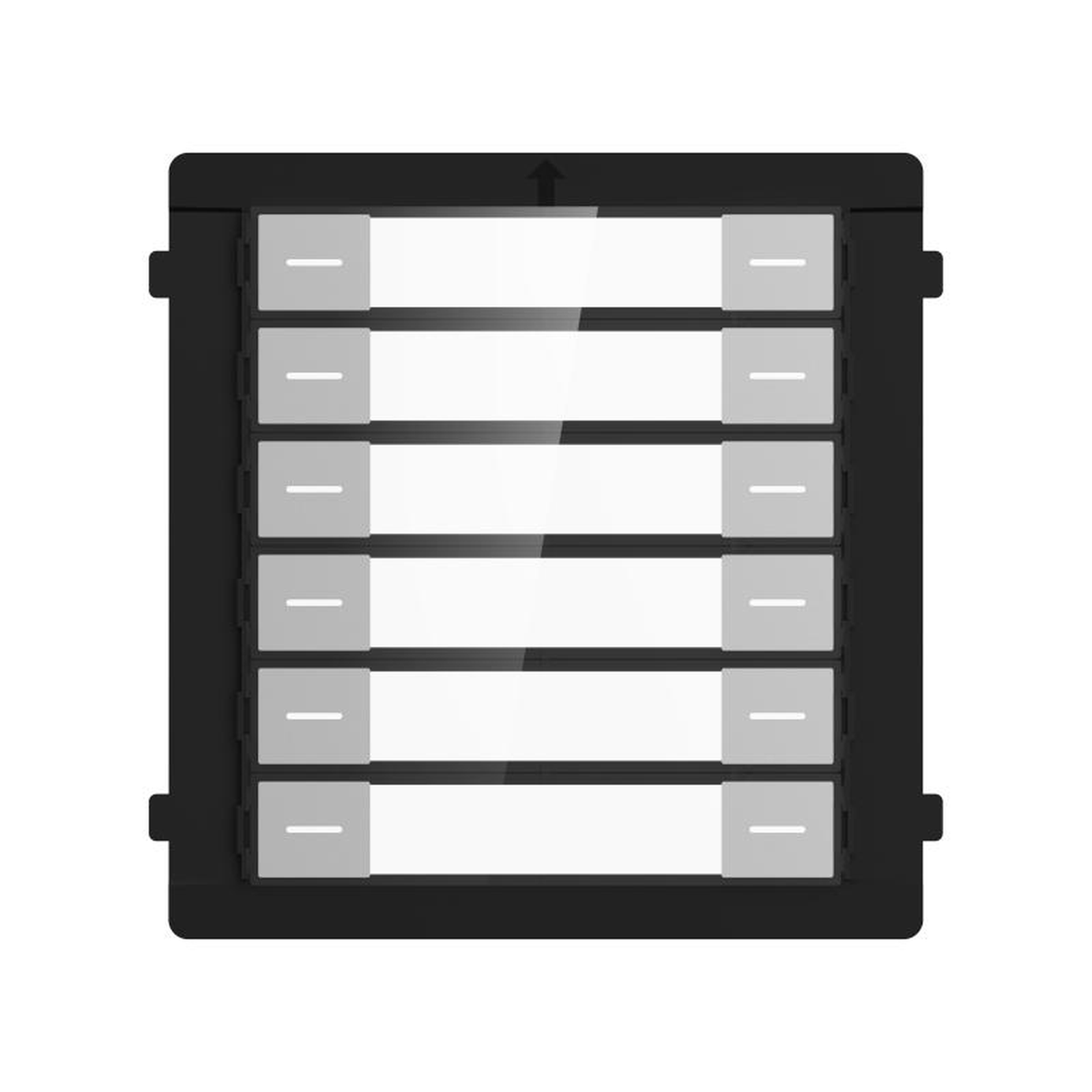

The Hikvision DS-KD-K12 is a nametag module for Hikvision modular video intercom door stations. It adds 12 nametag call buttons, so visitors can call a resident by pressing their name. The buttons are backlit, and the module is rated IP65.
Key features
- 12 nametag call buttons for easy calling
- Backlight behind the nametag buttons
- IP65 protection
- Easy to use and extend
- Flush or surface mounting
- Listed for KD8 series and KD8 series Pro modular door stations (e.g. DS-KD8003-IME1(B)) and two-wire main units (e.g. DS-KD8003Y-IME2)
Technical specifications
- Model: DS-KD-K12
- Buttons: 12 physical buttons
- Interface: 1 × RS-485
- Power consumption: ≤ 2 W
- Protection: IP65
- Working temperature: -30 °C to 55 °C
- Working humidity: 10% to 90% (non-condensing)
- Dimensions (W × H × D): 98.2 × 100.2 × 33.7 mm
- Weight: net 179 g
- Installation: flush or surface mounting
