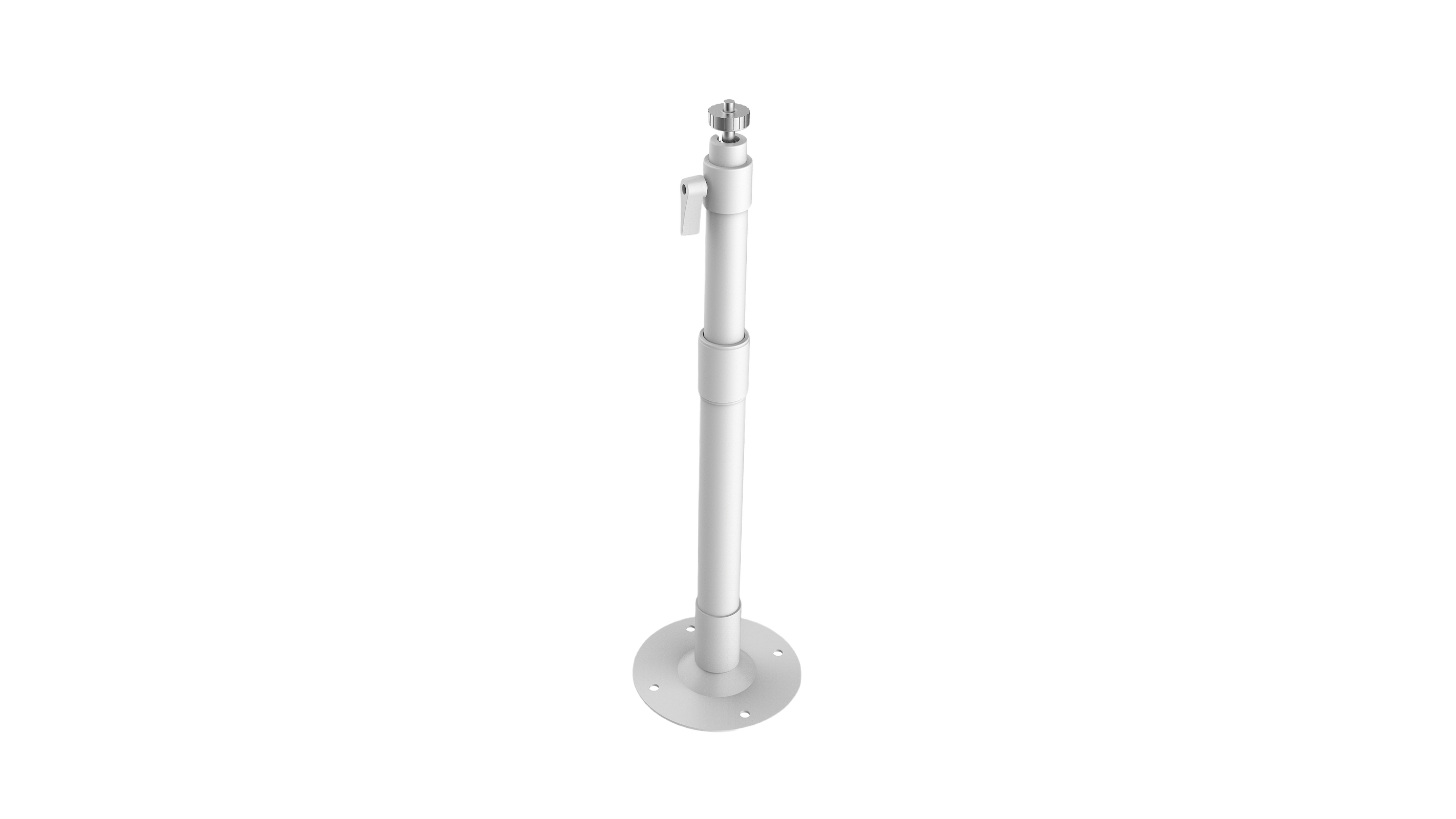

The Hikvision DS-1297ZJ is a white aluminium alloy pendant mounting bracket with an extendable arm (1.2 m to 2.0 m) for adjusting the mounting height. The camera fixes directly to the bracket, and its cap design makes wiring easier.
Key features
- Aluminium alloy with surface spray treatment
- Extendable arm for mounting height adjustment
- Camera fixes directly to the bracket (1/4-20 UNC)
- Cap design for convenient wiring
- Install on a flat surface
- Waterproof rubber is needed for outdoor installation
- The mounting surface must be able to support at least three times the combined weight of the camera and mount
Technical specifications
- Model: DS-1297ZJ
- Colour: Hikvision white
- Material: aluminium alloy
- Dimensions: Ø120 x 2000 mm
- Extendable range: 1.2 m to 2.0 m
- Weight: 1035 g
- Maximum load: 2 kg
