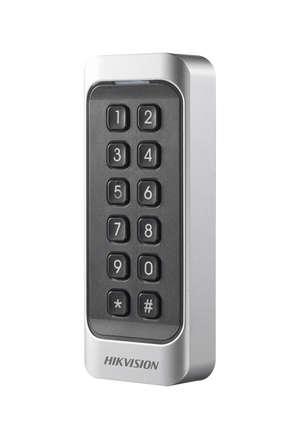

The Hikvision DS-K1108ADK is a Pro Series card reader with a keypad for Hikvision access control systems. It reads DESFire and FeliCa cards and connects to controllers over RS-485, Wiegand or OSDP.
Key features
- Reads DESFire and FeliCa cards, as well as M1 (MIFARE) cards at 13.56 MHz
- RS-485, Wiegand (W26, W34) and OSDP protocols
- Tamper-proof function
- Built-in buzzer for status indication
- ID set by DIP switch
- Wall mounting
Technical specifications
- Model: DS-K1108ADK
- Keypad: yes
- Card standard: ISO 14443-A
- Power supply: 12 VDC, 2 W
- Power consumption: ≤ 2 W
- Working temperature: -20 °C to 65 °C
- Working humidity: 10% to 90% (non-condensing)
- Dimensions: 123 × 88 × 21 mm
- Net weight: 0.14 kg
