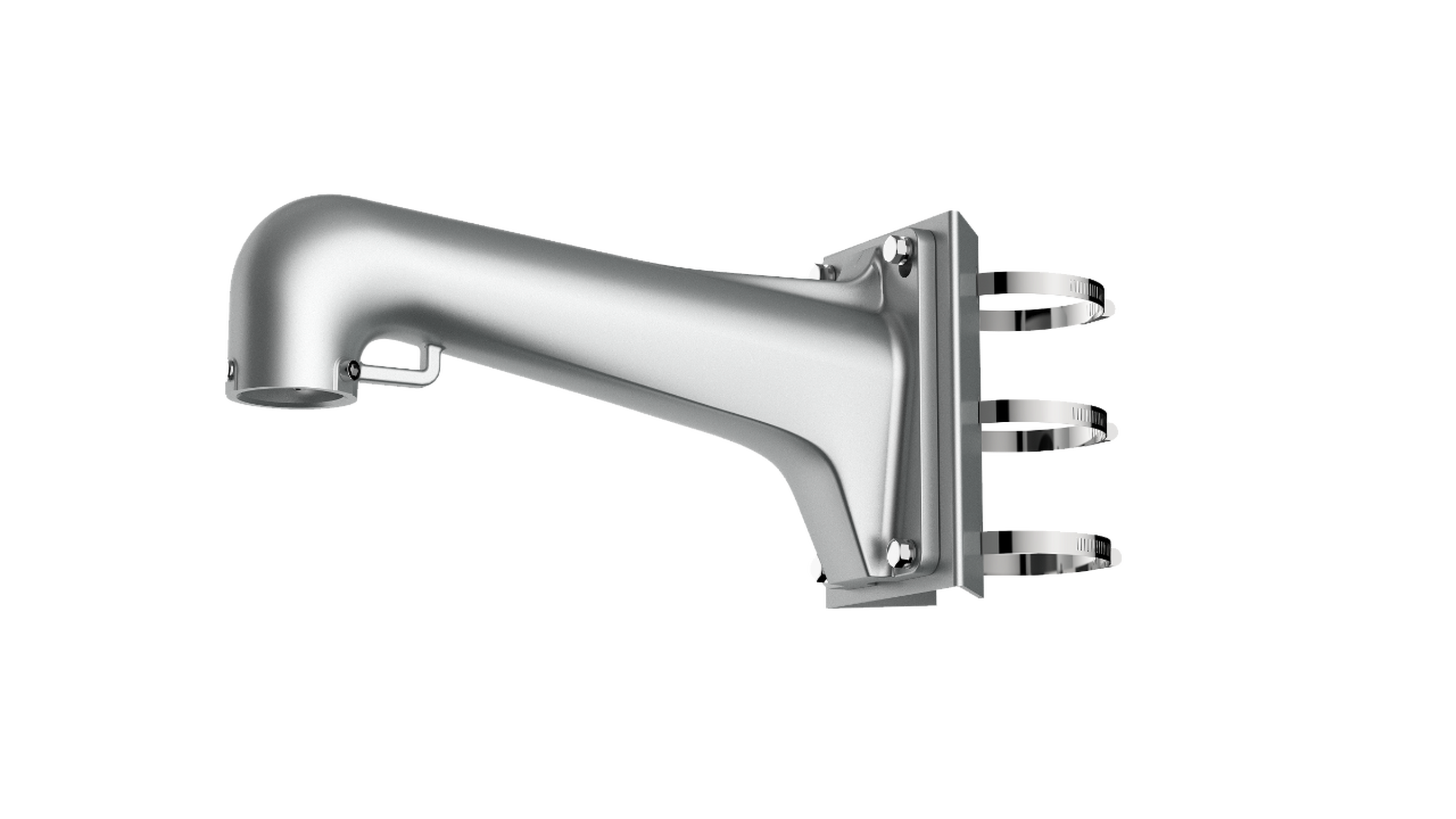

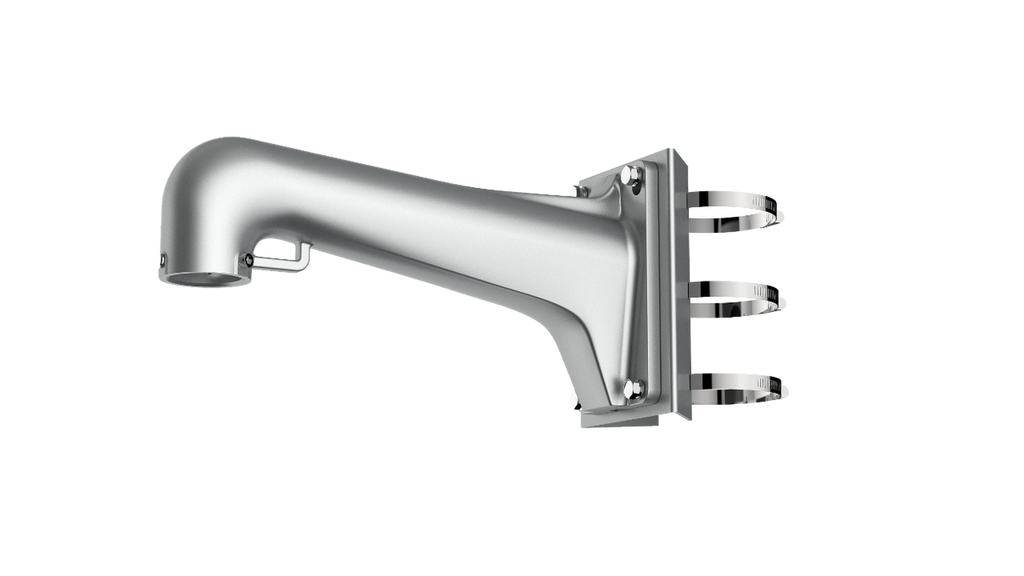

The Hikvision DS-1603ZJ-Pole-P is a platinum grey vertical pole mount for Hikvision cameras, adjustable to fit poles from 67 mm to 127 mm in diameter and suitable for indoor and outdoor use.
Key features
- Aluminium alloy, steel and stainless steel with surface spray treatment
- Adjustable to suit pole diameters from 67 mm to 127 mm
- Safety rope hook to aid installation
- Suitable for indoor and outdoor use
- Maximum load capacity 20 kg
- The mounting surface must be capable of supporting at least three times the combined weight of the camera and mount.
Technical specifications
-
Model: DS-1603ZJ-Pole-P
-
Description: Vertical pole mount
-
Colour: Platinum grey
-
Material: Aluminium alloy, steel and stainless steel
-
Pole diameter: 67–127 mm
-
Dimensions: 410.6 × 194 × 126.1 mm
-
Weight: 2.45 kg
-
Maximum load: 20 kg
