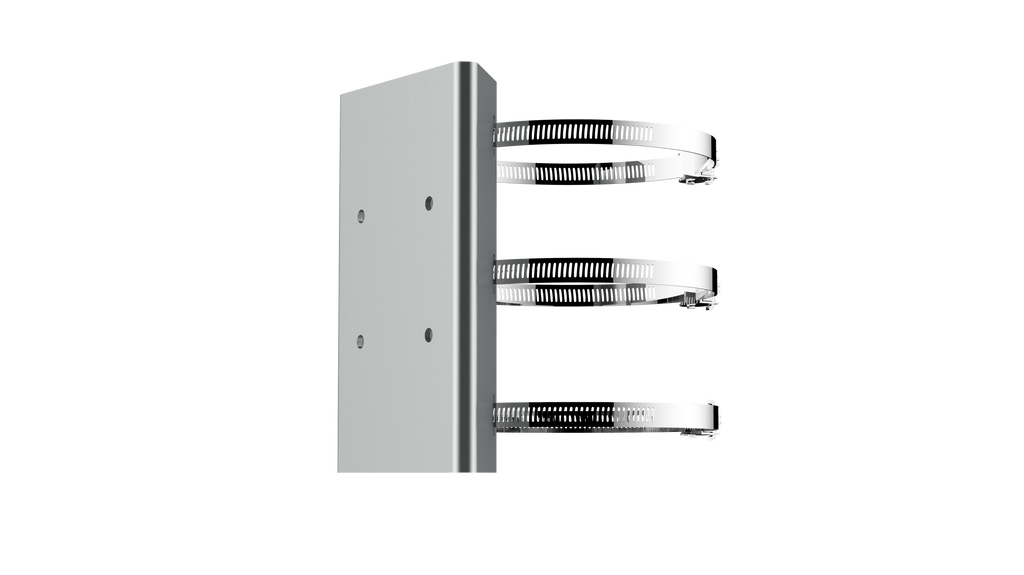

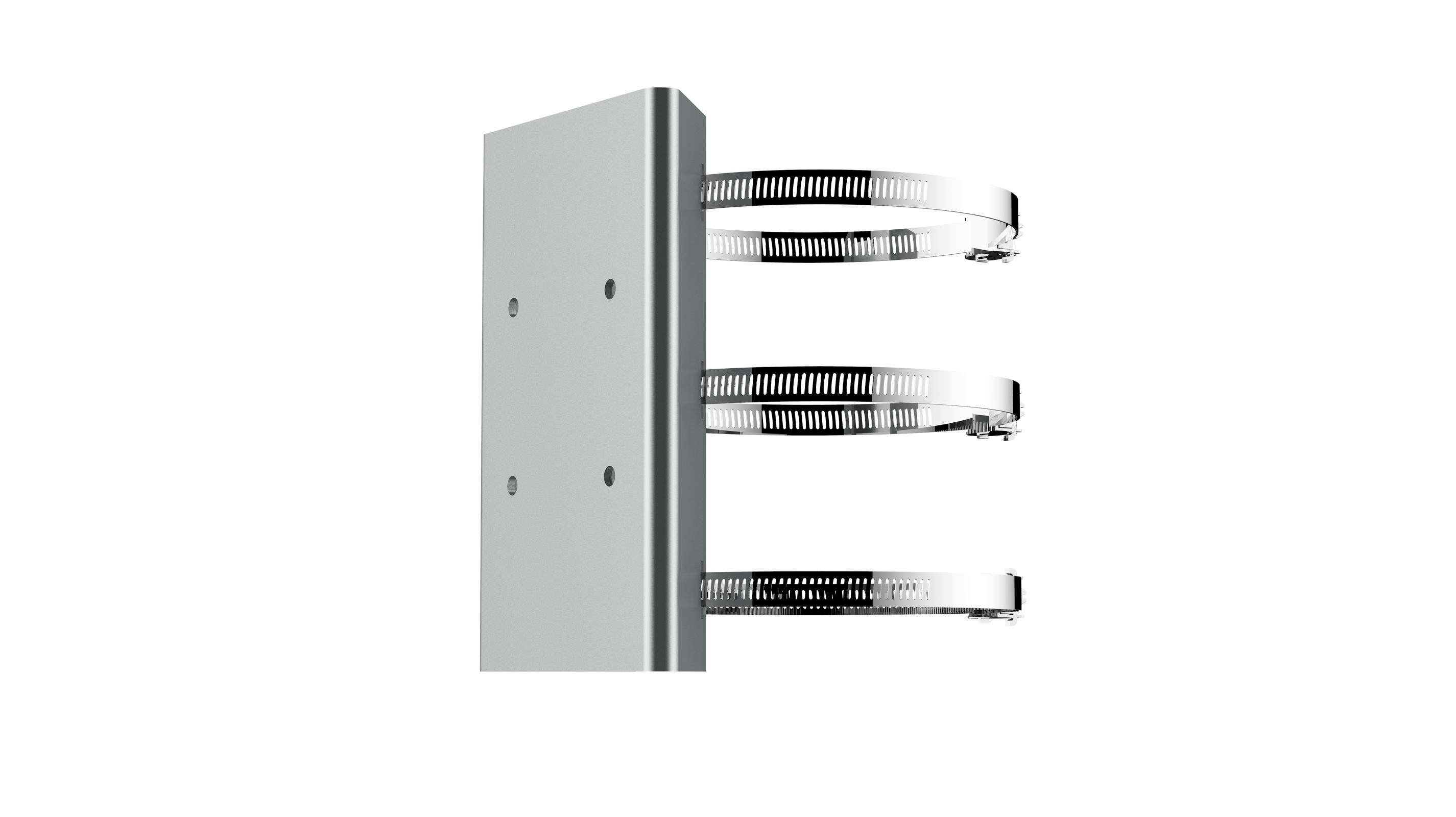

Hikvision DS-1673ZJ-P Vertical Pole Mount

The Hikvision DS-1673ZJ-P is the platinum grey version of the DS-1673ZJ stainless steel pole mounting bracket for Hikvision PanoVu and speed dome cameras. Hikvision describes the DS-1673ZJ as a horizontal pole mounting bracket. It clamps to poles from 67 mm to 127 mm in diameter and is used together with a pendant mount.

The specifications below are from the Hikvision DS-1673ZJ datasheet.

Key features

• Stainless steel with surface spray treatment
• One-piece stainless steel construction for a reliable structure
• Adjustable to suit pole diameters from 67 mm to 127 mm
• Used together with a Hikvision pendant mount
• Maximum load capacity of 20 kg

Technical specifications

• Model: DS-1673ZJ-P
• Colour: platinum grey
• Material: stainless steel
• Pole diameter: 67 mm to 127 mm
• Dimensions: Ø67 mm to 127 mm × 194 mm
• Weight: 1060 g
• Max. load capacity: 20 kg
• Use with a pendant mount. Waterproof rubber is needed for outdoor use. The pole must be able to support at least three times the combined weight of the camera and the bracket.
