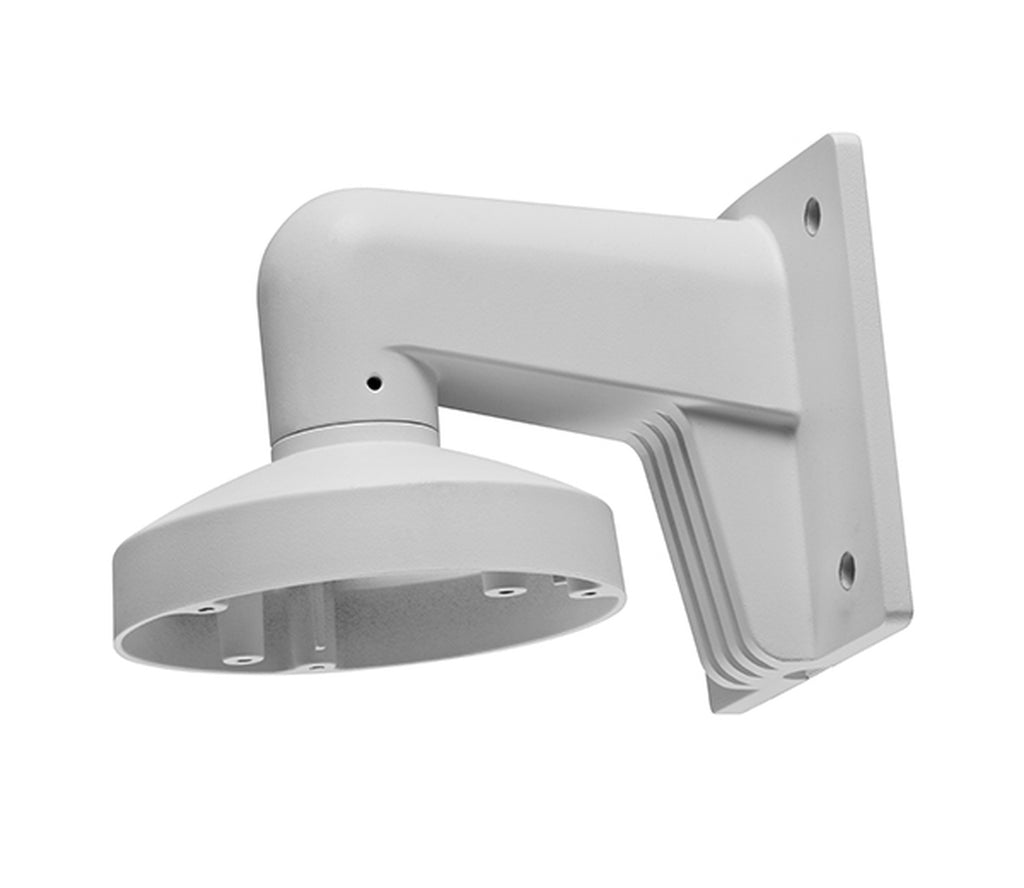

The Hikvision DS-1272ZJ-120 is a Ø120 mm wall mounting bracket for Hikvision mini dome cameras, suitable for indoor and outdoor use. Its nose-up pitch design improves water resistance and the matched junction box includes a waterproof stopper.
Key features
- Aluminium alloy with surface spray treatment
- Waterproof rubber seal for indoor/outdoor installation
- Cable outlet hole for a neat finish
- Nose-up pitch design for better water resistance
- Maximum load capacity 4.5 kg
- Waterproof rubber is required for outdoor installation
- The mounting surface must be capable of supporting at least three times the combined weight of the camera and mount.
Technical specifications
-
Model: DS-1272ZJ-120
-
Description: Ø120 wall mounting bracket for mini dome cameras
-
Colour: Hikvision white
-
Material: Aluminium alloy
-
Dimensions: Ø120 × 122 × 173.5 mm
-
Weight: 440 g
-
Maximum load: 4.5 kg
-
Listed compatible models: DS-2CS58A1P-IRS, DS-2CS54A1P-IR, DS-2CD2512F-I(W), DS-2CD2532F-I(W), DS-2CD7133-E, DS-2CD7153-E, DS-2CD7164-E
