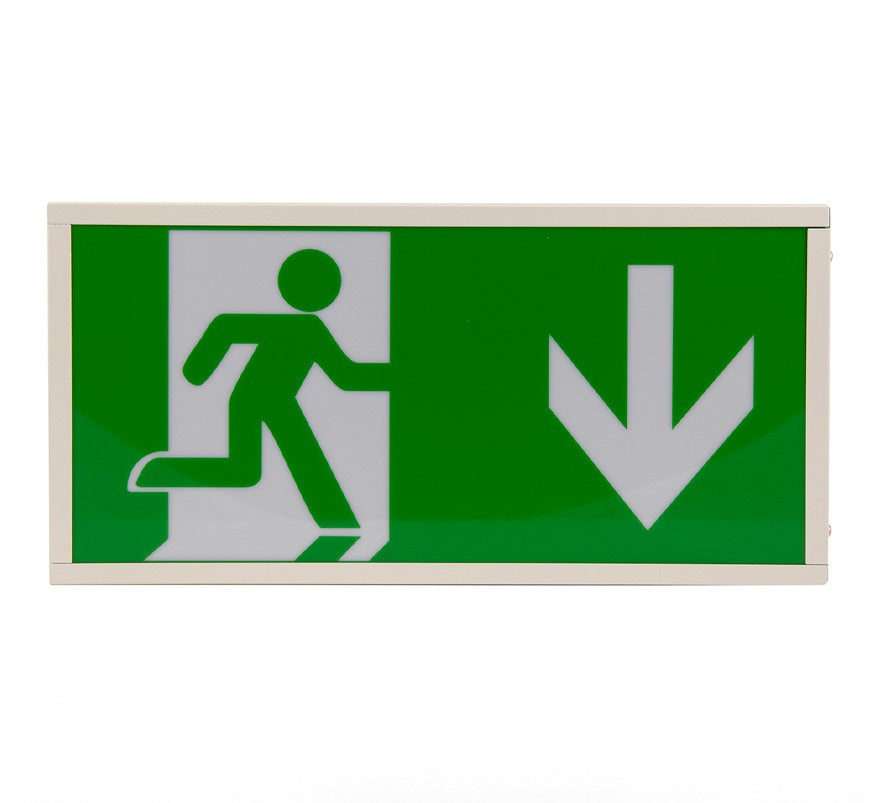

The Hispec Rhine HSEM/LEDEBD is a 2.5W universal LED emergency exit box with an arrow down legend. It can run in maintained or non-maintained mode from a 220–240V AC supply and gives at least 3 hours of emergency operation from its lithium (LiFePO4) battery. It is made in accordance with BS EN 60598-2-22 for escape route signage in commercial and public buildings.
Key features
- Maintained or non-maintained operation
- Screen-printed arrow down legend included (other directions sold separately)
- Long-life LiFePO4 lithium battery with overcharge and deep discharge protection
- Manual test button
- No switched live required
- Top and rear 20mm cable entries
Technical specifications
- Product code: HSEM/LEDEBD
- Rated voltage: 220–240V AC, 50/60Hz
- Wattage: 2.5W (maintained mode), 1.5W (emergency mode)
- Lumen output: 35lm (maintained mode), 17lm (emergency mode)
- Colour temperature: 6400K
- Battery: LiFePO4, 3.2V 1600mAh
- Charging time: 24 hours
- Minimum emergency duration: 3 hours
- Ingress protection: IP20
- Protection class: Class I
- Operating temperature: -10°C to 30°C
- Weight: 1054g
- Produced in accordance with: BS EN 60598-2-22
