Hochiki CHQ-CB(RED)/WL Addressable Ceiling VAD Beacon - Red Case, White LEDs (7.5m)

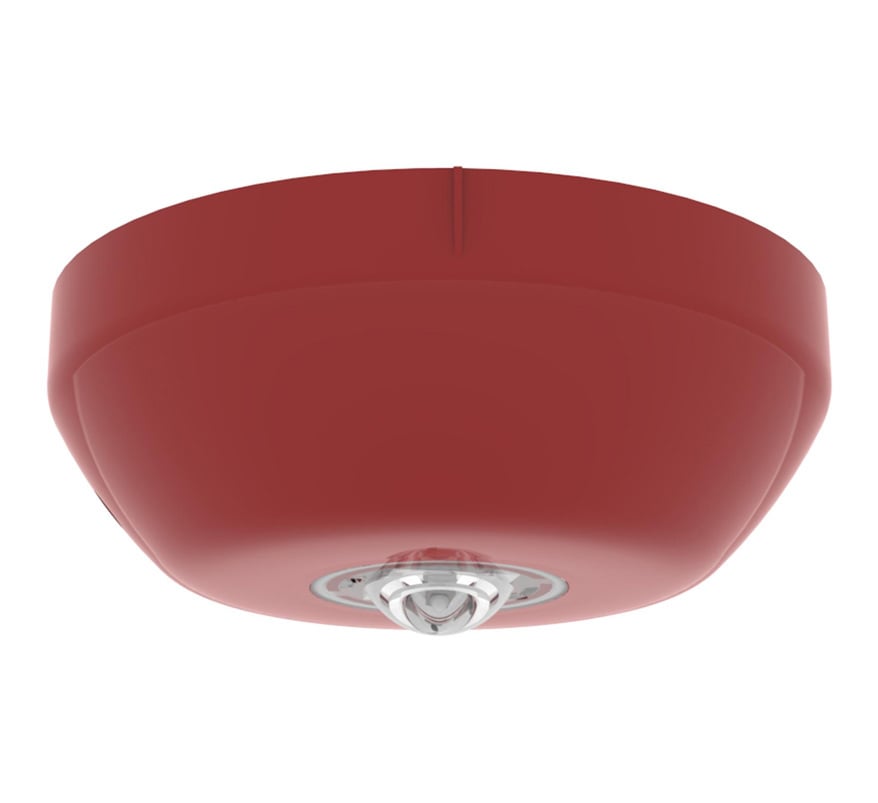

The Hochiki CHQ-CB(RED)/WL is an addressable, loop-powered ceiling visual alarm device (VAD) in a red case with white LEDs, for the Hochiki ESP analogue addressable system. A high-intensity LED and custom free-form optic produce a highly visible flash, and it is approved to EN 54-23:2010 category C. This variant has a default coverage setting of C-3-7.5 (ceiling mounting up to 3 m, 7.5 m coverage diameter), with selectable light output (panel dependent).

Key features

• Loop powered, single loop address via TCH-B200 programmer
• High-intensity LED with free-form optic
• 0.5/1 Hz flash frequency
• Approved to EN 54-23:2010, category C (ceiling)
• Selectable light output (panel compatibility required)
• PSU-powered option (panel dependent)
• Available with ivory, white or red case and red or white LEDs

Technical specifications

• Ordering code: CHQ-CB(RED)/WL (red case, white LEDs)
• Operating voltage: 17-41 V DC
• Quiescent current (typ.): 250 µA
• Current when beacon active (settings 0/1/2): 6 / 12 / 17 mA
• EN 54-23 ratings by light output setting: C-3-6.5 (setting 0), C-3-7.9 (setting 1); default setting C-3-7.5
• Ratings based on 0.5 Hz flash frequency
• Operating temperature: -10 °C to +50 °C
• Storage temperature: -30 °C to +70 °C
• Maximum humidity: 95% RH non-condensing (at 40 °C)
• Colour / case material: red / ABS; PC lens
• Weight: 120 g
• Dimensions: Ø100 x 41 mm
• Base fixing centres: 48-74 mm
• Ingress protection: IP21 (IP33 with CHQ-WPK weatherproofing kit; VdS approval to type A only)
• Compatible bases (red case): YBO-R/3(RED), YBO-R/SCI(RED)
