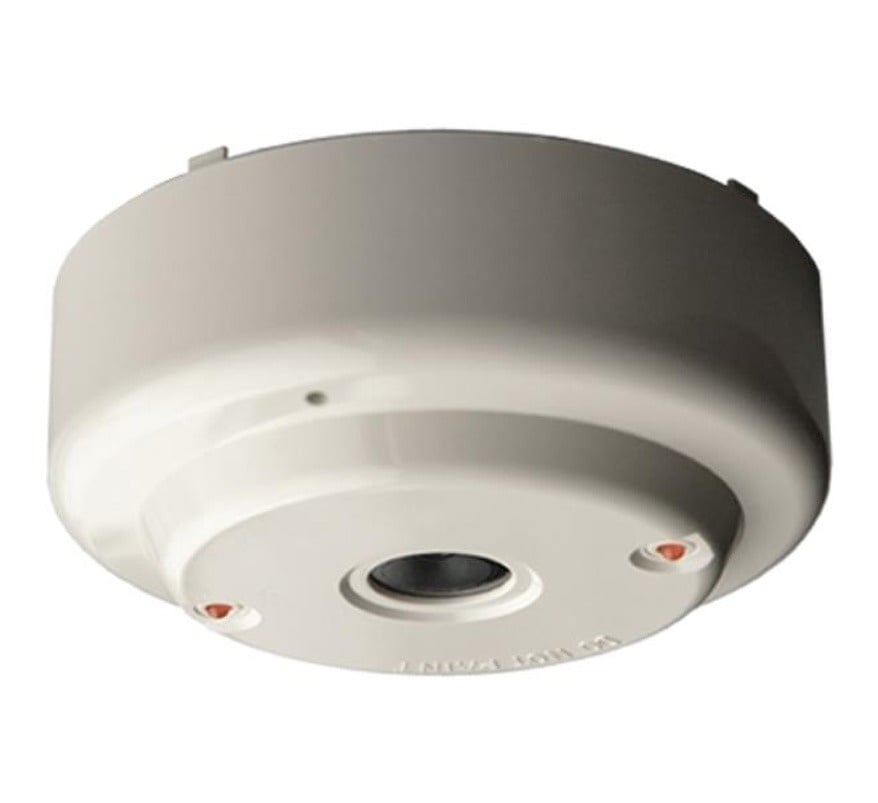

The Hochiki DRD-EM is a marine-approved conventional flame detector in an ivory case, designed for internal use to detect large flames. It uses single IR technology, has a 90° cone detection zone with a range of up to and including 25 m, and fits the Hochiki CDX marine-approved mounting base (YBN-R/6M). It is intended for conventional fire detection on ships, offshore platforms and similar marine installations.
Key features
- Class 1 performance as defined in BS EN 54-10:2002 (range up to 25 m)
- Single IR technology
- Robust, slim design with low current consumption
- Twin LEDs for 360° viewing
- Fits the YBN-R/6M marine-approved base
- Approved by LPCB and VdS
- Approved to MED, DNV and IEC 60092-504 requirements
- DNV Module B (type examination) and Module E (product quality assurance)
Technical specifications
- Ordering code: DRD-EM
- Operating voltage: 15-30 V DC
- Current consumption at 24 V DC: 70 µA quiescent / 40 mA alarm
- Surge current: 320 µA
- Minimum alarm trip current: 6 mA
- Classification: Class 1, EN 54-10:2002
- Detection zone: 90° cone
- Detection range: 25 m
- Ingress protection: IP42
- Operating temperature: -10 °C to +50 °C
- Colour: ivory
- Compatible base: YBN-R/6M
- Base fixing centres: 48-74 mm
- Weight: 124 g
- Dimensions: Ø100 x 37.3 mm (H)
