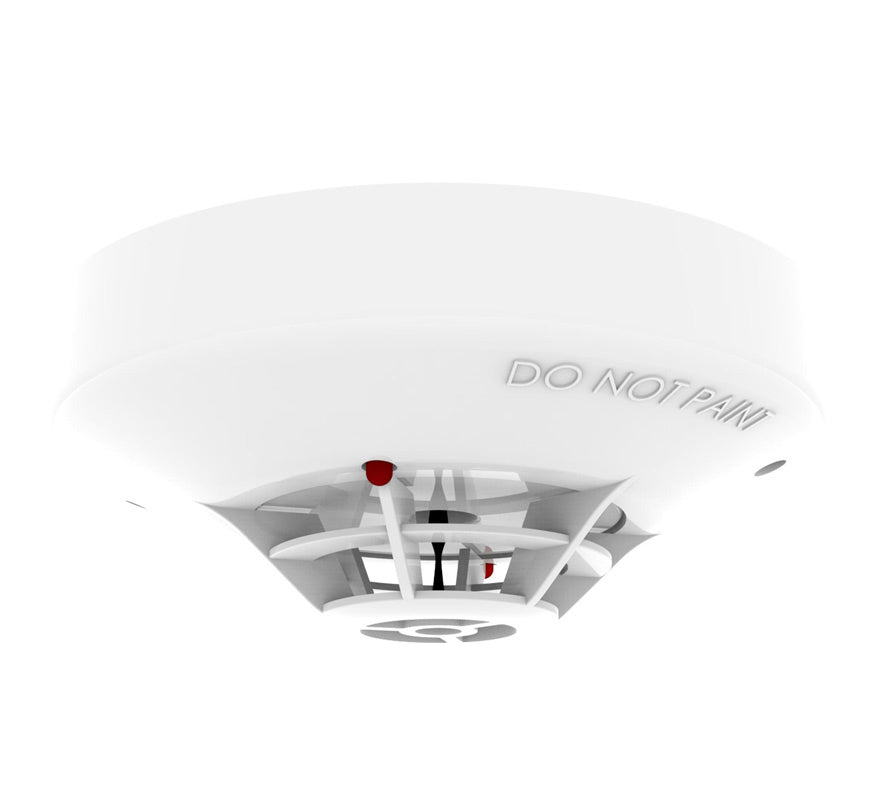

Hochiki DFJ-CE3(WHT) Conventional Fixed Temperature Heat Detector 90°C - White Case

The Hochiki DFJ-CE3(WHT) is a conventional 90 °C fixed-temperature heat detector in a white case, from the Hochiki CDX range. It uses a thermistor and linearising circuit for an accurate linear response, and a third terminal provides a remote indicator output. It suits areas with medium ambient temperatures, such as drying rooms, and places where smoke detectors are unsuitable because of steam or cooking fumes, such as kitchens.

Key features

• Electronic linear heat detection, 90 °C fixed temperature
• Remote indicator output
• Wide voltage range (9.5 to 30 VDC), so it can also be used on security systems
• Twin fire LEDs allow 360° viewing
• Full range of CDX mounting bases
• Approved by LPCB and VdS

Technical specifications

• Ordering code: DFJ-CE3(WHT) (white)
• Operating voltage: 9.5 to 30 VDC
• Quiescent current: 35 µA
• Maximum current in alarm: 40 mA (typical)
• Remote indicator drive: 20 mA maximum / 9.5 to 14 mA typical
• Ingress protection: IP63
• Maximum humidity: 95% RH non-condensing (at 40 °C)
• Operating temperature: -10 °C to +50 °C
• Storage temperature: -30 °C to +70 °C
• Case material: modified polycarbonate
• Compatible bases: YBN-R/6, YBN-R/6SK, YBO-R/6R, YBO-R/6RS, YBO-R/6RN, YBO-R/6PA
• Base fixing centres: 48 to 74 mm
• Weight: 76 g
• Dimensions: Ø100 x 38 mm (H)
• Approvals: EN 54-5:2017 category C and CS; LPCB; VdS (G204047, YBN-R/6SK base only)
