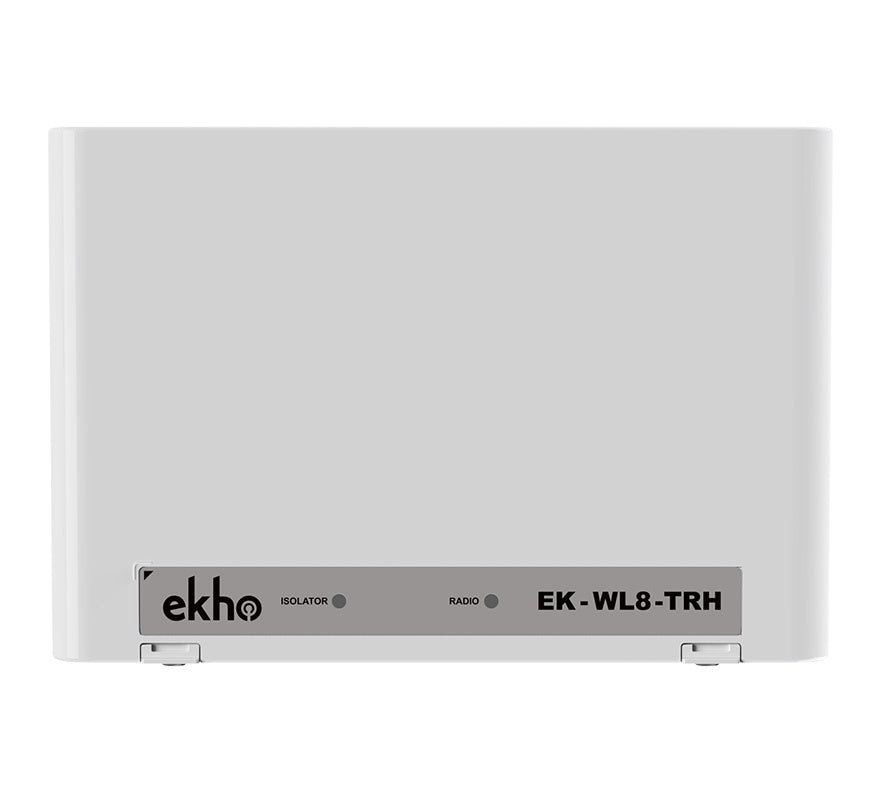

Hochiki Ekho Hybrid Wireless Translator Module (EK-WL8-TRH)

The Hochiki Ekho EK-WL8-TRH is a fully intelligent wired-to-wireless Translator Module for the Ekho hybrid wireless fire detection range. It is wired directly to an addressable fire alarm loop running the Hochiki ESP protocol and communicates with Ekho wireless Expanders and field devices, allowing radio devices to be used alongside standard hard-wired devices. Each radio device takes its own loop address, so the wireless link is transparent to the end user.

Key features

• Compatible with the Hochiki ESP protocol
• Connects up to 126 Expanders and radio field devices to an addressable loop (subject to available loop addresses)
• Multiple Translators can be used on one system, subject to loop power and addresses
• Loop powered, with integral loop short circuit isolator
• OLED graphical display for easy programming; system parameters set via the Translator and a PC link
• Bi-directional wireless communication with self-optimising wireless amplitude and frequency
• Two internal antennas reduce radio fade
• Tamper switch
• Approved to EN 54-17, EN 54-18 and EN 54-25; RED compliant
• Optional back box available (EK-BBOX-01)

Technical specifications

• Operating frequency range: 866-870 MHz
• Operating frequency channels: 6
• Modulation: GFSK
• Communication range (open air): Translator to Expander 2000 m; Translator to field device 1200 m
• Max. radiated power: 25 mW or less
• Time between wireless transmissions: 2 minutes
• Current consumption: 27 mA
• Operating voltage: 17-41 V DC
• Operating temperature: -10°C to +55°C
• Humidity: max. 95% RH, non-condensing
• Dimensions (H x W x D): 143 x 210 x 42 mm, without back box
• Weight: 300 g
• Standards: EN 54-17, EN 54-18, EN 54-25
