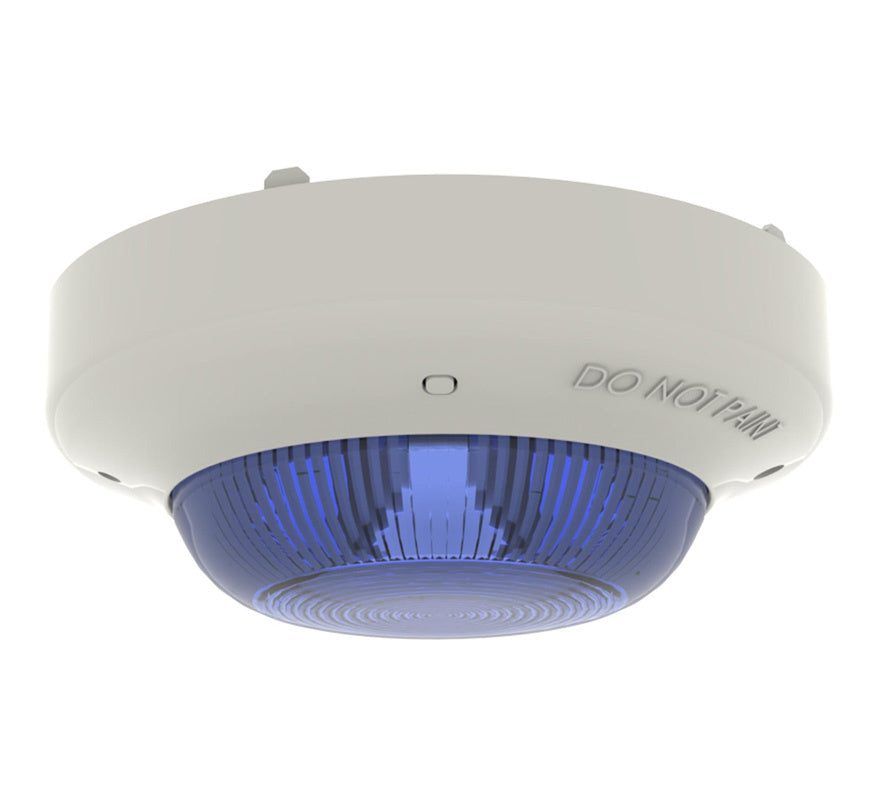

Hochiki ESP Addressable VID Beacon (Ivory Case, Blue Lens) (Non EN54-23) (CHQ-AB(BLU))

The Hochiki CHQ-AB(BLU) is an addressable, loop powered beacon with an ivory case and blue lens for Hochiki ESP intelligent fire alarm systems. High intensity LEDs and a Fresnel lens give a highly visible flash, and the case matches the ESP sensor range in shape and colour. It is a visual indicator only and is not EN 54-23 compliant.

Key features

• High intensity LEDs with Fresnel lens
• Variable flash frequency (panel compatibility required)
• Addressed with the TCH-B200 hand-held programmer
• Up to 127 devices per loop
• Case matches the ESP sensor range
• Approved by VdS
• Not EN 54-23 compliant

Technical specifications

• Part number: CHQ-AB(BLU)
• Operating voltage: 17 to 41V DC
• Quiescent current: 240µA typical, 300µA max
• Loop current when polled: 22mA ±20%
• Alarm current: 4.3mA typical, 5.0mA max
• Operating temperature: -10°C to +50°C
• Storage temperature: -30°C to +60°C
• Maximum humidity: 95% RH, non-condensing (at 40°C)
• Dimensions: 100mm diameter x 38mm high (46mm with base)
• Weight: 88g
• Base fixing centres: 48 to 74mm
• Approvals: VdS (G206052)

Note: fits the YBN-R/3 standard base, YBO-R/SCI isolator base, YBO-BSB base sounder beacon or the Hochiki YBO-BS(WHT) base sounder. Base sold separately.
