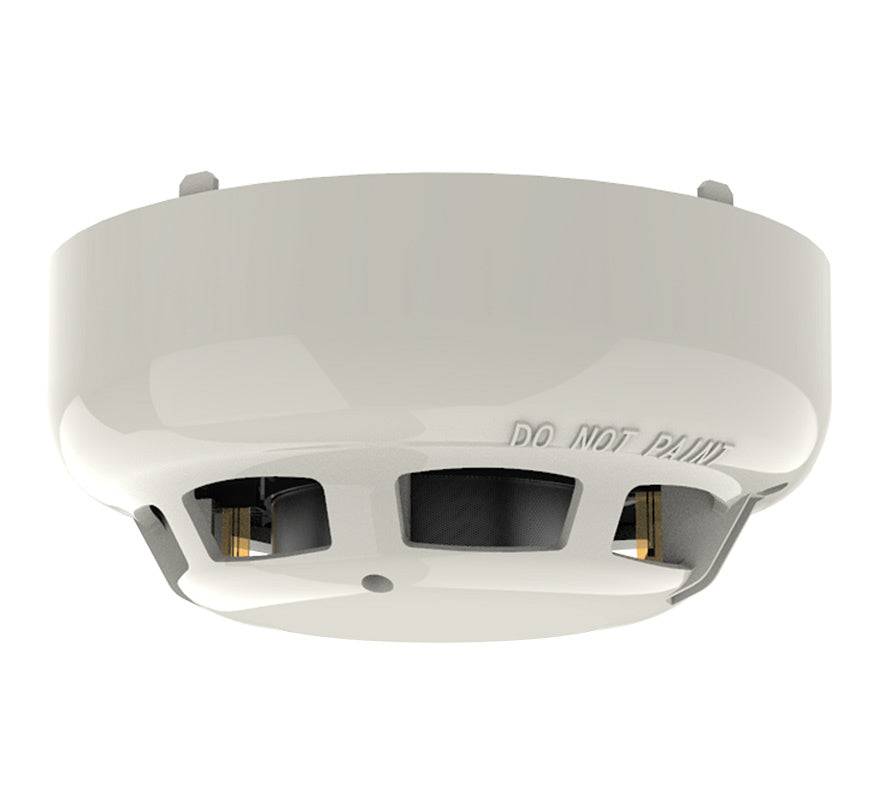

Hochiki ESP Intelligent Marine Approved Multisensor Optical/Heat (Ivory) (ACC-ENM)

The Hochiki ACC-ENM is a marine-approved analogue addressable multi-sensor in an ivory case, combining a heat element with a High Performance photoelectric smoke chamber. It is fully compatible with Hochiki's ESP analogue addressable protocol.

It has three modes, set from the control panel, so the optical element, the heat element or both can be used to make the fire decision. The smoke chamber is easy to remove or replace for maintenance. Hochiki's marine range is based on its ESP and CDX ranges and is approved for marine use by DNV under the EU Marine Equipment Directive (MED), for ships, oil platforms, offshore installations and wind farms.

Key features

• User selectable modes (optical, heat or both)
• Optical and heat elements
• Removable High Performance chamber
• Pulsing/non-pulsing controlled from the panel (panel compatibility required)
• Twin LEDs for 360° viewing: green when polling, amber when isolating, red in fire
• Variable sensitivity
• Electronically addressed (TCH-B200)
• Approved to EN54-5, EN54-7 and EN54-29
• Approved to MED

Technical specifications

• Ordering code: ACC-ENM (ivory)
• Colour: ivory
• Operating voltage: 17 to 41 VDC
• Low power mode (typical): 120 µA
• Quiescent current (typical): 400 µA
• Maximum current consumption: 30 mA
• Alarm current (controlled by panel): 9.1 mA (excluding remote indicator)
• Transmission: digital communications using ESP
• Operating temperature: -10 °C to +50 °C
• Operating humidity: 95% RH, non-condensing (at 40 °C)
• Storage temperature: -30 °C to +60 °C
• Case material: polycarbonate
• Weight: 95 g
• Dimensions: Ø 100 x H 45 mm
• Compatible bases: YBN-R/3M, YBN-R/3M(WHT), YBN-R/3M(SCI), YBN-R/3M(WHT)-SCI
• Base fixing centres: 48 to 74 mm
• Wind exposure (ref EN54-7): 1 ± 0.2 m/s
• IP rating: IP42
• Approvals: DNV rules for classification (ships); IMO FSS Code chapter 9; location classes temperature B, humidity A, vibration A, EMC B
