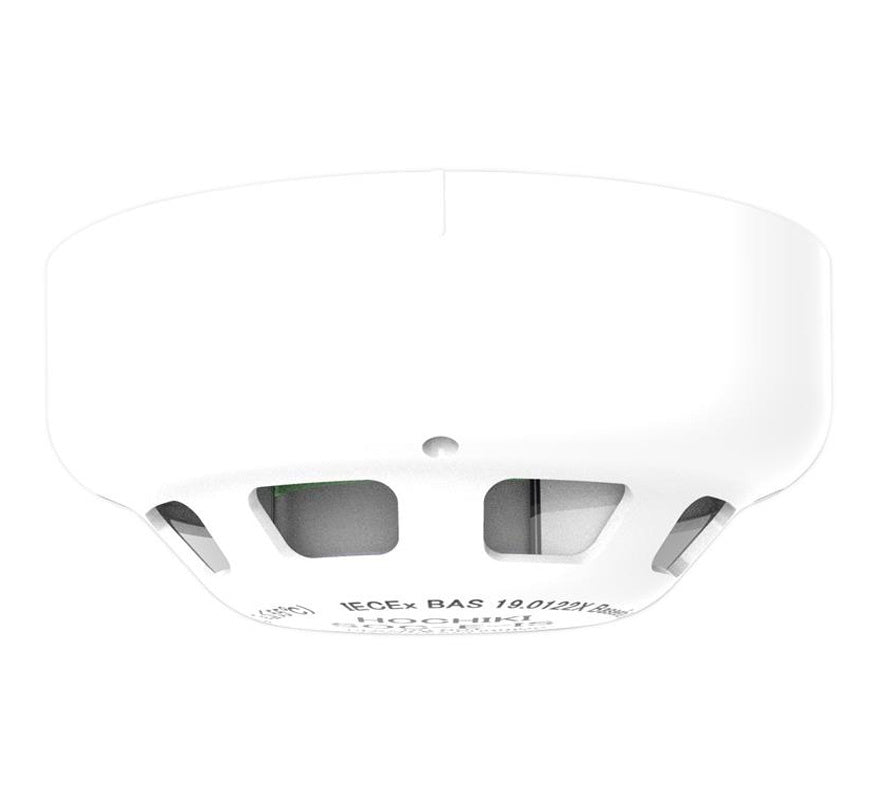

The Hochiki SOC-E-IS(WHT) is an intrinsically safe conventional photoelectric (optical) smoke detector in a white case, for use in hazardous areas such as refineries, chemical plants and fuel stations. It is compatible with the majority of existing conventional systems.
It uses Hochiki's High Performance photoelectric chamber and ASWV drift compensation. It must be connected through a Zener barrier or galvanic isolator, such as the Hochiki Z787, to limit the energy entering the hazardous area.
Key features
- Removable High Performance photoelectric chamber, removing the need for ionisation detectors in most applications
- ASWV (Automatic Sensitivity Window Verification) drift compensation to reduce false alarms
- Remote indicator output
- Wide voltage range (9.5 to 30 VDC)
- Low-profile design with one-piece outer cover
- Suitable for installation in Category 1 areas (including all lower categories)
- Approved by LPCB and VdS
Technical specifications
- Ordering code: SOC-E-IS(WHT) (white)
- Operating voltage: 9.5 to 30 VDC
- ATEX classification: II 1 G Ex ia IIC T5 Ga (-20 °C ≤ Ta ≤ +55 °C)
- Compatible base: YBN-R/4(IS) intrinsically safe mounting base
- Maximum per zone: 20 intrinsically safe detectors
