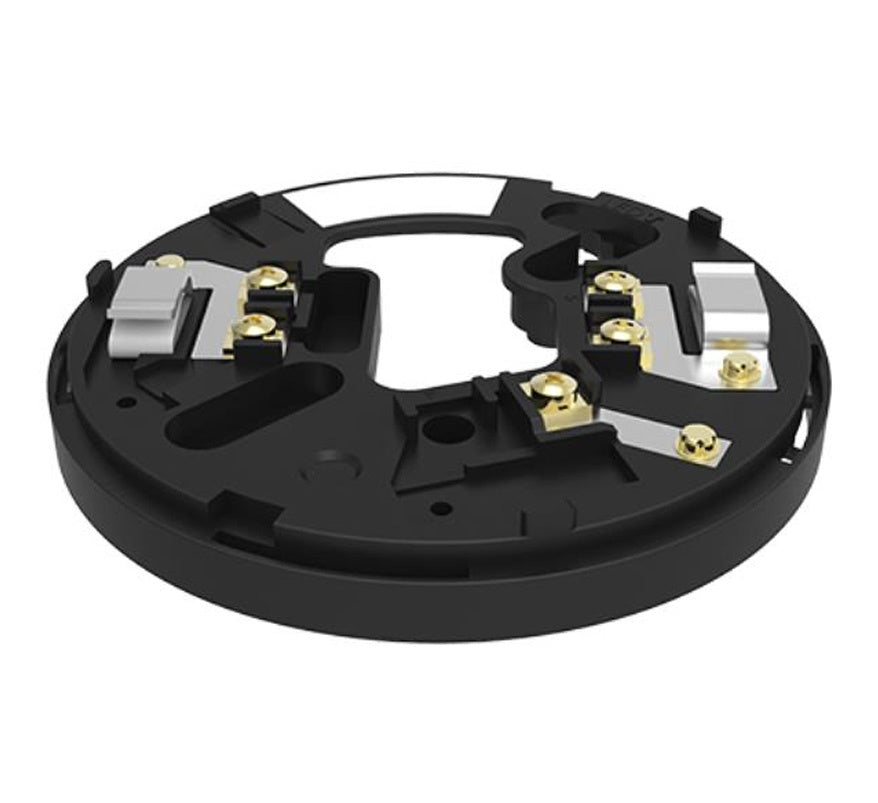

The Hochiki YBN-R/3(BLK) is the common mounting base, in a black finish, for Hochiki ESP analogue addressable sensors. It has no electronics, uses square cable clamps for secure termination, and can drive a remote LED indicator. With a slim 8 mm profile it keeps the sensor close to the ceiling.
Key features
- Electronics-free design
- Stainless steel contacts
- Takes 2.5 mm² cables
- Slim profile, only 8 mm
- Rugged wiring contacts with square cable clamps
- Remote indicator facility
- Compatible with the Hochiki ESP sensor range
Technical specifications
- Ordering code: YBN-R/3(BLK) (black)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Maximum humidity: 95% RH non-condensing (at 40 °C)
- Case material: ABS
- Fixing centres: 48 to 74 mm
- Maximum wire size: 2.5 mm²
- Weight: 50 g
- Dimensions: Ø100 x 8 mm (H)
- Ingress protection: IP20
