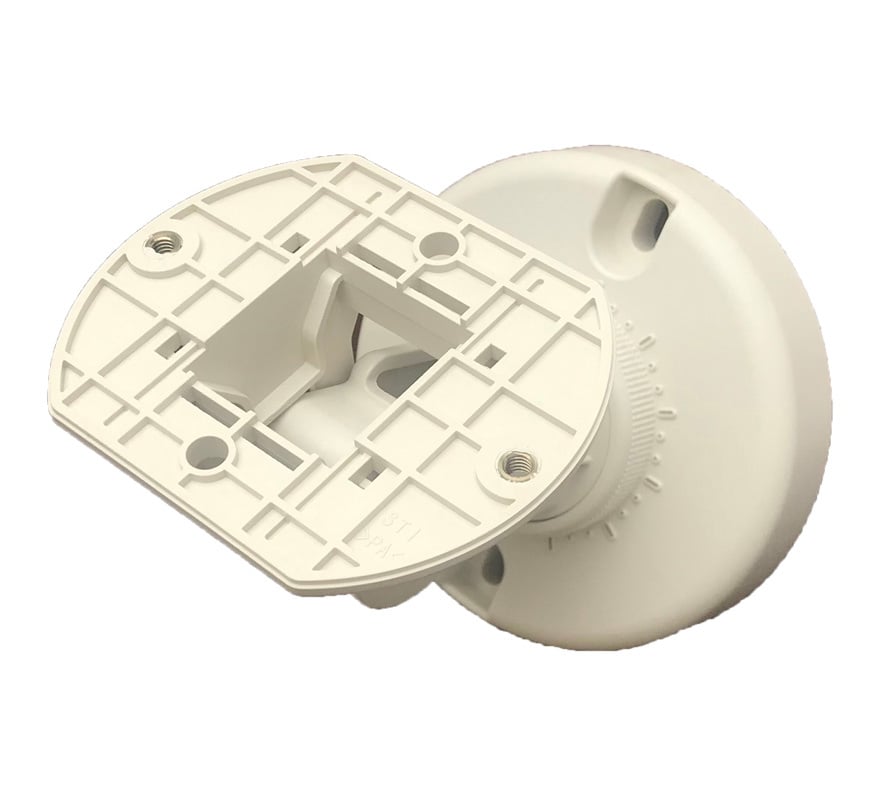

The Hochiki YZU-AA is an adjustable angled ceiling bracket that lets a Hochiki device using a standard mounting base be ceiling mounted at an angle. Hochiki lists it as the universal mount for the DRD-E conventional flame detector, so the detector can be aimed at the area it needs to watch.
The bracket can be set to any angle and is colour-matched to Hochiki's ivory product range. Hochiki also states it can be used with emergency lighting units as well as fire detection devices.
Key features
- Easy to install
- Allows Hochiki devices to be angled
- Robust design
- Suitable for both fire detection and emergency lighting units
Technical specifications
- Ordering code: YZU-AA
- Compatible with: DRD-E flame detector
- Vertical adjustment: installation angle 0 to 90°
- Horizontal adjustment: 360° rotation (angle scale every 10°)
- Material: self-extinguishing resin
- Colour: ivory (Munsell 5Y8.5/1)
- Fixing centres: 66.7 mm
- Weight: 140 g
- Dimensions: H 99 x Ø 90 mm
