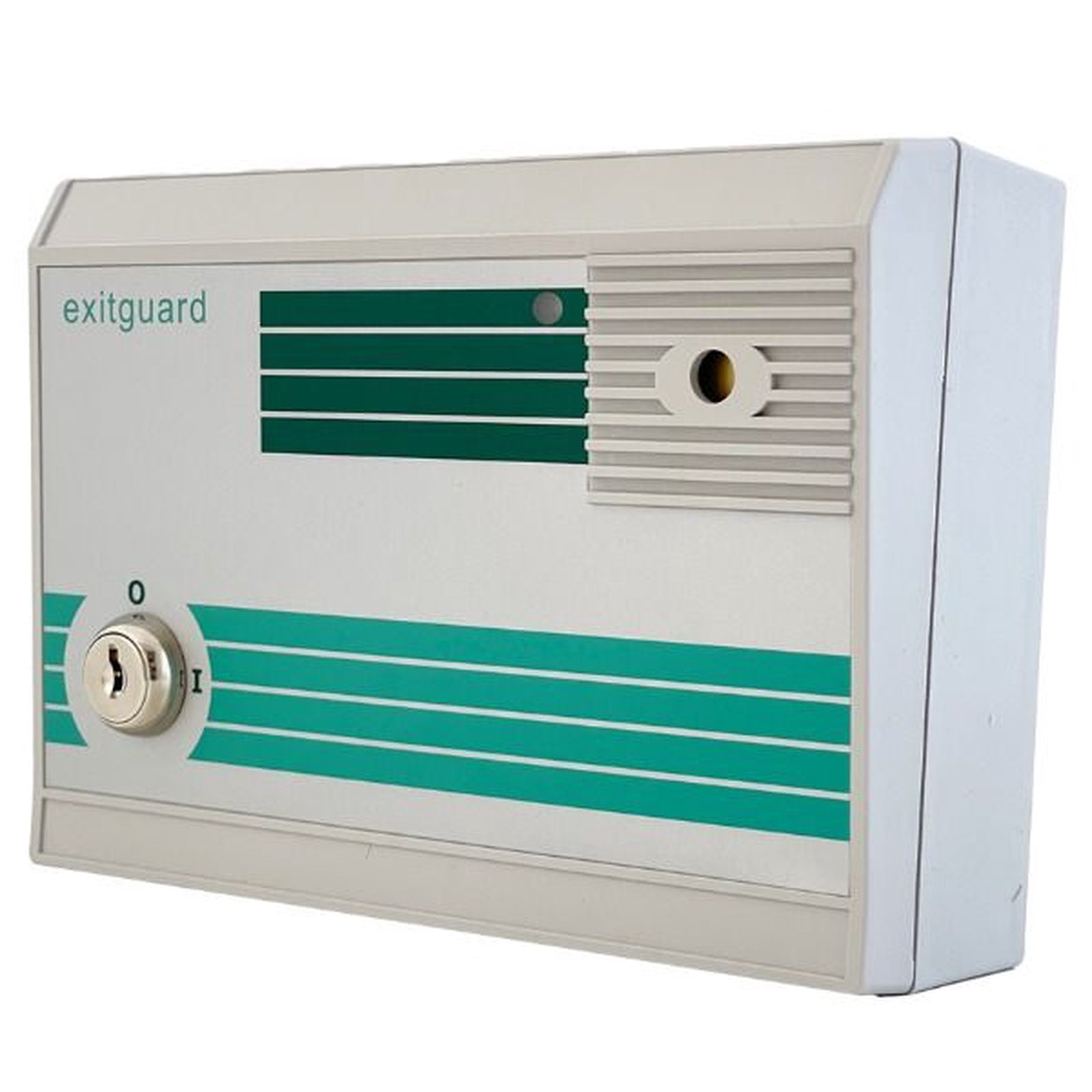

Designed specifically for use with intruder alarm systems monitoring either 1k/1k Honeywell, or 4k7/4k7, such as Aritech, the Exitguard EX125i is the ideal solution for all types of door security issues. Any alarm or fault is communicated to the main intruder alarm system using a supervised loop for On/Off monitor & separate Alarm output. An auto sounder reduction feature is incorporated to attenuate the sounder after a preset period to reduce the annoyance caused if the key holder is not immediately available. However, the sounder will restart if the door is opened again. The Bleep In Off (BIO) function can be enabled to provide a local audible and visual indication when the Exitguard is turned off. This reduces the likelihood of the Exitguard being left turned off. Selectable resistors on the alarm circuits allow for compatibility with key intruder panel manufacturers’ systems. Features Designed for Grade 2 intruder systems High Power Piezo Sounder 108dB @1m Visual Alarm Indication Keyswitch Control with random key numbers Audible/visual warning when turned off (BIO) On/off monitor output Tamper Switch Supervised loop for On/Off monitor & separate Alarm output Safe Set to minimises false alarms Simple Function Change by Internal Jumpers Compatible with key panel manufacturers Selectable resistor values for alarm output Supplied with installation instructions, including wall fixings. Dimensions 175 x 125 x 60 tapering to 50mm
