- 2A rated double pole relay output
- 7 programmable timers
- Momentary action or latched relay output
- Timed or switched override function
- Timed I/O function
- Easy to read 16x2 LCD display
Frequently bought together
Product details

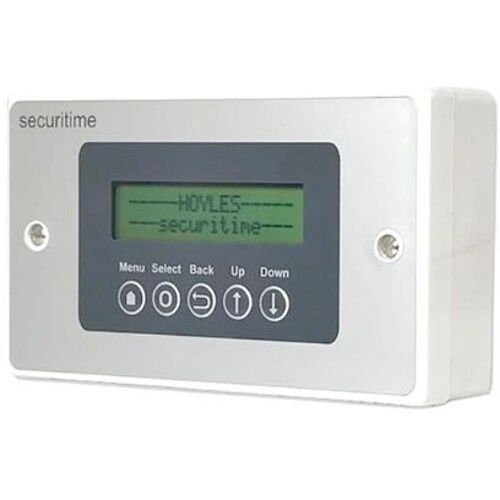

The Hoyles TMR100 Securitime is a 12/24V DC programmable access control time clock and timer, used to automatically lock and unlock doors or switch other equipment on a schedule.
The Securitime is a versatile, secure programmable timer that switches a 12/24VDC 2A clean contact output relay. With a simple to use interface and a clear LCD display it is ideal for use with access control or any other applications that have time sensitive elements. The timer has a back up battery so even if there is a power cut it will retain the time, date and all the programmed settings. For added reliability the timer automatically calculates the day of the week from the date, adjusts for leap years and automatically updates for summer and winter time.
- 2A rated double pole relay output
- 7 programmable timers
- Momentary action or latched relay output
- Timed or switched override function
- Timed I/O function
- Easy to read 16x2 LCD display
- Convenient size, double gang plate
- Back up battery to maintain clock
- Secure code option to prevent tampering

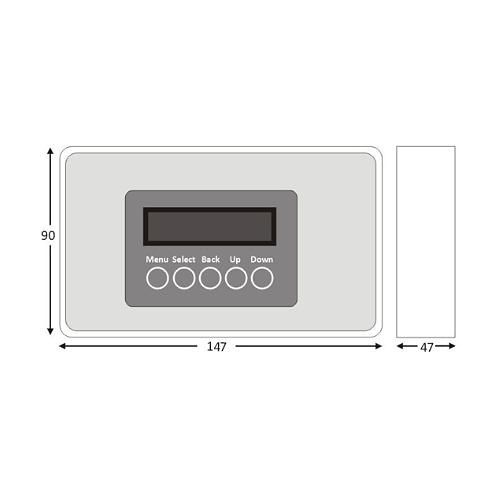

- Dimensions 147x90x47mm
Specifications
| Limited Warranty | 2-Year |
|---|---|
| Product Line | Securitime |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Used for: timed door release on access control systems, and any other application with time sensitive elements.
Frequently asked questions
Will the TMR100 lose its settings in a power cut?
No. The timer has a back up battery, so it retains the time, date and all the programmed settings during a power cut.
What output does it switch?
A 12/24V DC 2A rated double pole clean contact relay, with momentary action or latched output.
Does it adjust for British Summer Time?
Yes, it automatically updates for summer and winter time, calculates the day of the week from the date and adjusts for leap years.
Product datasheet
Hoyles TMR100 Securitime 12/24VDC Time Clock and Timer Product datasheet · TMR100 · PDF Open datasheet
