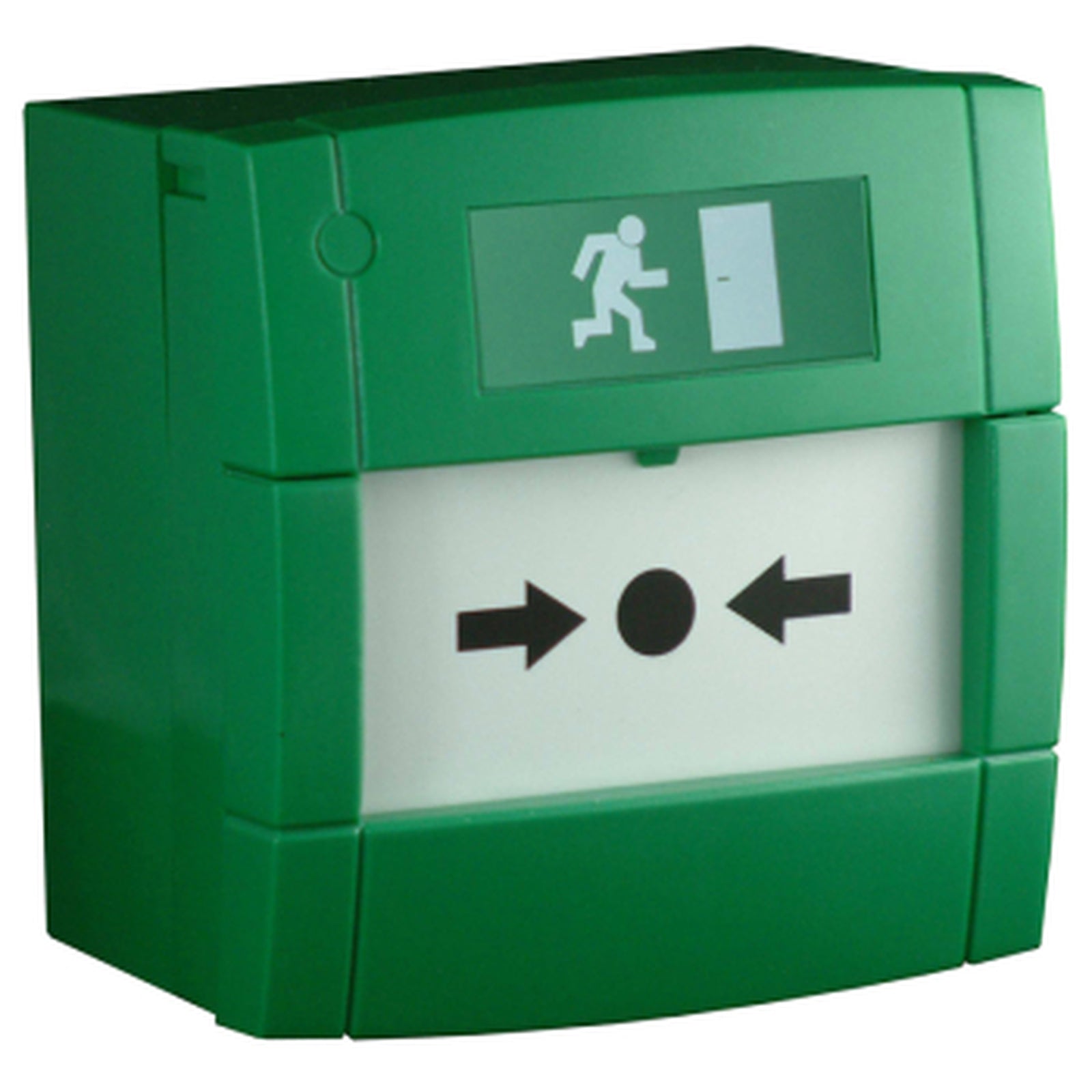

The KAC AKA-MCP3A-GF is a green MCP3 indoor manual call point with a resettable (flexible) operating element, for access control applications. It can be surface or flush mounted and is reset with a key. The MCP3 model has one normally open and one normally closed contact; single-pole changeover switching is possible with two terminal blocks.
Key features
- Green housing with a resettable operating element, reset by key
- Normally open and normally closed contacts; single-pole changeover possible with two terminal blocks
- ‘Plug and play’ terminal block: cabling is terminated first, then the block plugs into the back of the call point
- Can be changed between break-glass and resettable elements without extra parts
- Anti-tamper: removing the lid illegally makes the call point operate
- Surface or flush mounting
Technical specifications
- Maximum voltage: 30V DC
- Current rating (switch only): 2A
- Cable termination: 0.5 to 2.5mm²
- Operating temperature: -10°C to +55°C
- Humidity: 93% ±3% non-condensing
- Ingress protection: IP24D
- Material: PC/ABS
- Weight: 130g flush, 180g surface
- Accessories: SC070 test keys (pack of 10), PS200 hinged cover, SC071 terminal blocks (pack of 20)
