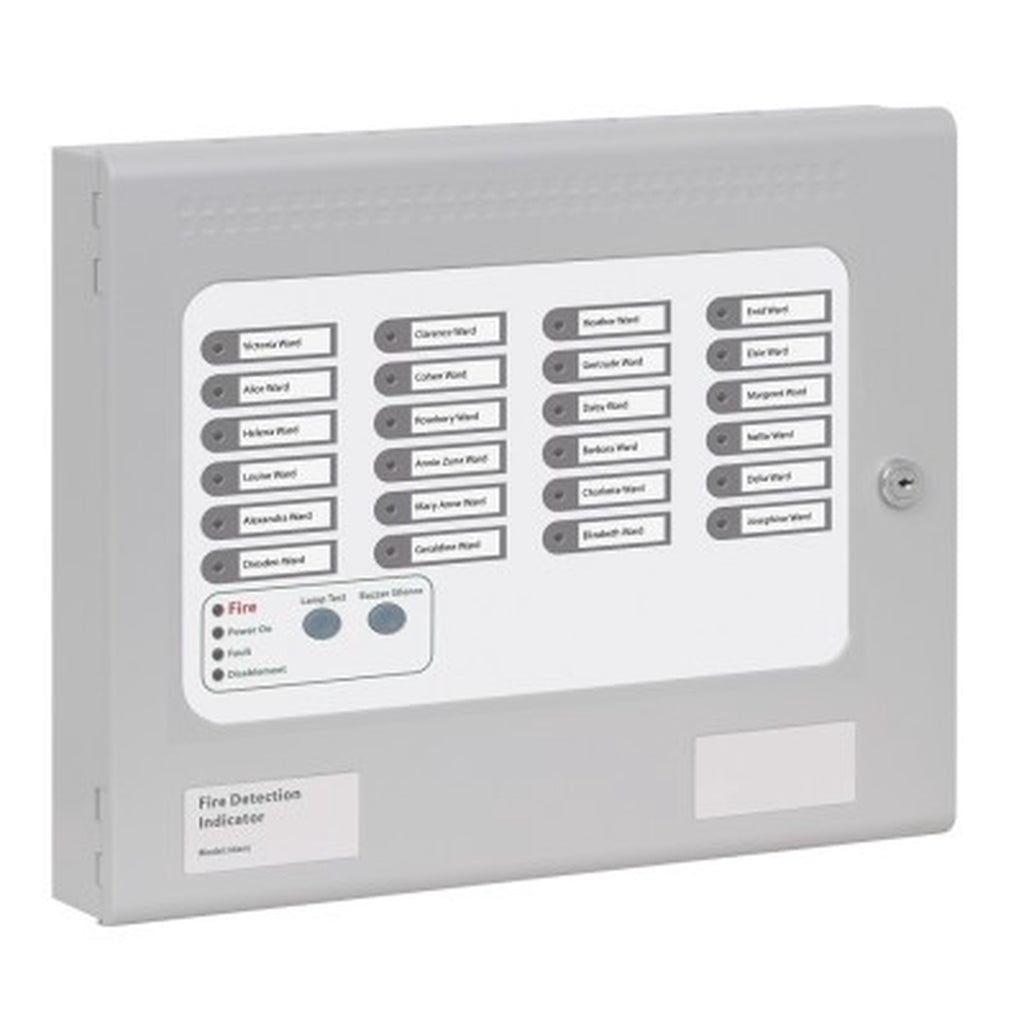

Kentec Addressable Ident Panel with 24 LED Indications

Addressable Ident panels provide a compact and attractive display for up to 24 indications from a Syncro AS or Taktis fire control panel. As with all inputs and outputs on the Syncro AS or Taktis Fire system, each indicator is fully programmable to indicate a variety of events as well as being fully programmable via cause and effects to operate in response to logically connected inputs. Each indication defaults to a zonal fire indicator but may be configured via the Loop Explorer configuration utility to operate upon any event type or combination of inputs. Requiring only a low current 24V power supply and a two core data connection to the fire panel, the addressable Ident panels can be installed quickly and easily to provide supplementary information on the status of the fire alarm system with the minimum of cost and effort. Features 24 LED version available as standard Large versions available to special order Up to 16 x 24 way Addressable Ident can be connected to each fire panel Programmable flashing or steady states Red, yellow or green indications/options Common Fire, Fault and Disabled indication Customisable label identification tags Buzzer with silence control and re-sound Lamp test control Low power 24V DC supply Connects to 2 wire Syncro RS485 data bus Multiple language options
