Kentec LCMU Line Continuity Monitoring Unit (Active EOL) (K14060)

The Kentec K14060 LCMU is an active end-of-line line continuity monitoring unit (6k8 version) for conventional fire detection zones. It lets the panel monitor the zone wiring and detect head removal.

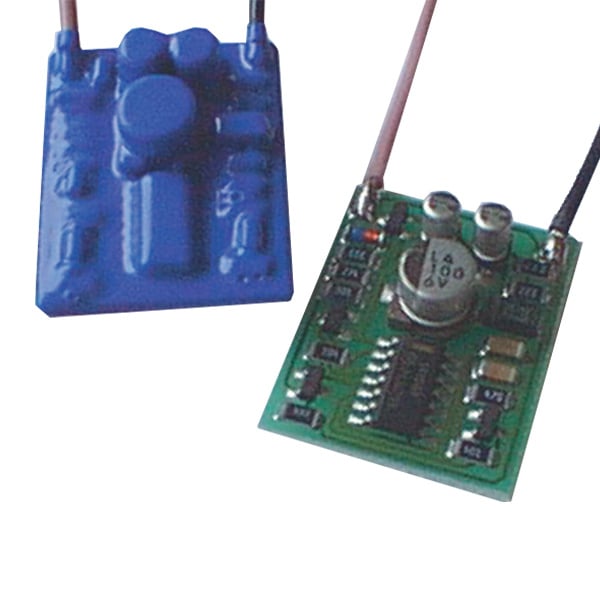

Its sub-miniature, environmentally sealed design means it can fit inside the last device on a zone or in its back box, so no extra wiring point is needed. The detector bases need a diode in the breaking connection, and Kentec recommends the Schottky BYV-1060. Some control panels (not K3000 series or Sigma CP) also need a 47 µF capacitor across the detection line terminals.

Key features

• Easy to install, with no additional wiring point
• Sub-miniature surface-mount design, environmentally sealed
• Supports up to 20 detectors per zone
• Polarity conscious: black wire is always negative

Technical specifications

• Product code: K14060 (6k8)
• Size: 25 x 20 x 8 mm
• Normal current: 5 mA at 28 V
• Fault condition current: 750 µA at 50 V
• Operating voltage: 15 to 30 V
• Max. zone cable resistance: 20 ohms
• Panel capacitor (where required): 47 µF 50 V
• Max. detectors: 20 per zone
• Terminal connections: bootlace ferrules
• Finish: blue conformal coating
