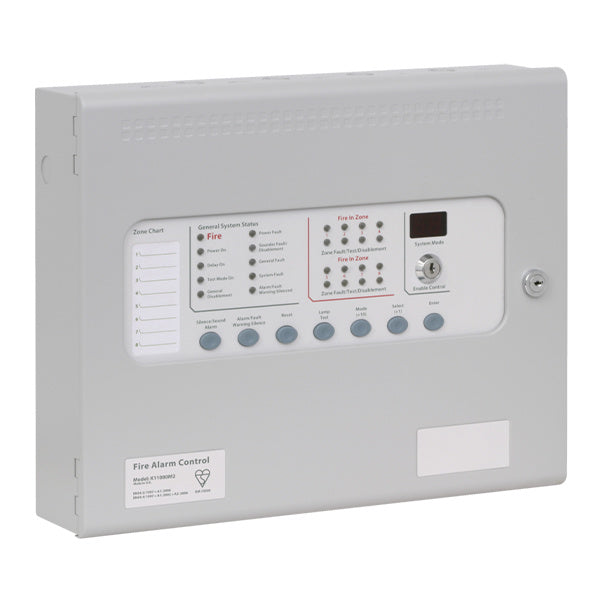

Kentec Sigma 8 Zone Conventional Fire Panel (KL11080M2)

The Kentec Sigma CP KL11080M2 is an 8 zone, 4-wire conventional fire alarm control panel, fully certified to BS EN54-2 and BS EN54-4 and suitable for BS 5839-1 installations. It works with most standard conventional detectors, call points and sounders. The KL version comes with an LCMU (line continuity monitoring device). Its wide range of configuration options suits both new installations and panel replacements on older systems.

Key features

• Fully certified to BS EN54-2 and BS EN54-4
• Eight detection zones (4-wire)
• LCMU included
• Two monitored sounder outputs
• 3A power supply and auxiliary power output
• Simple single-board construction
• Fully programmable from simple menu options, with settings stored in non-volatile memory
• Configuration options include adjustable sounder delay, zonal sounder delays (detectors only or call points only), coincidence, I.S. barrier selection by zone, short circuit fire by zone, non-latching zones, silent zones and zone input delay
• Supports two-wire repeaters and ancillary boards

Technical specifications

• Zones: 8
• Supply voltage: 230V AC (+10%/-15%)
• Mains supply fuse: 1.6A 250V
• Power supply: 24V DC, 3A
• Maximum battery size: 2 x 12V 7Ah
• Standby current: 0.093A; alarm current: 0.55A
• Sounder output rating: 0.5A per output (1.6A max over all outputs)
• Fire, local fire and fault contacts: 30V DC 1A
• Detection zone EOL: 6k8 5%; sounder output EOL: 10k 5%
• Cable capacity: 2.5mm² per terminal
• Dimensions: 385 x 310 x 90mm
• Construction: 1.2mm mild sheet steel, epoxy powder coated, grey fine-texture lid and box
• IP rating: IP30
• Weight: 6kg
• Operating temperature: -5°C to +40°C, humidity below 95% (non-condensing)
