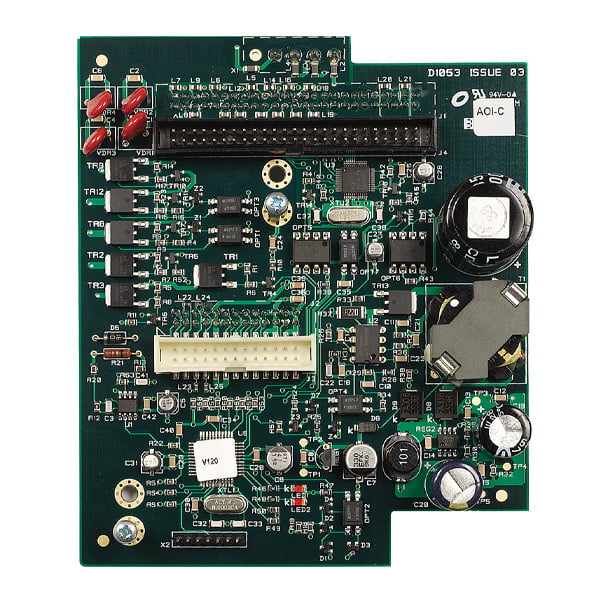

The Kentec K586A is a loop expansion card for the Apollo protocol (S90, XP95 and Discovery). It adds a second detection loop to a single-loop Kentec Syncro AS analogue addressable fire alarm control panel.
Kentec specifies that an additional loop card must use the same protocol as the panel's existing loop. Loop expansion is not available on the Syncro AS Lite. With two Apollo loops, the panel supports up to 252 devices.
Key features
- Adds a second Apollo detection loop to a single-loop Syncro AS panel
- Must match the protocol of the panel's existing loop
- Mounts directly on the Syncro AS main board (connectors X7 and X8), fixed with the M3 screws and fibre washers supplied
- If a network card is fitted, it is refitted on top of the loop card
- New loop devices are added to the configuration with Loop Explorer software
Technical specifications
- Product code: K586A
- Protocol: Apollo S90, XP95, Discovery (address range 1 to 126 per loop)
- Detection loop current: 400 mA max.
- Recommended loop cable: screened fire-resistant cable such as FP200
