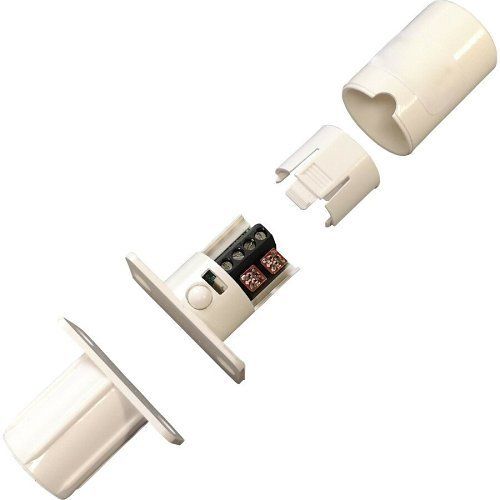

Knight Fire A41MULTI G2 Flush Contact, 4-Terminal, Multi-Resistor, White
SKU: A41MULTIBrand: Knight Fire & Security
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 28 | 2 to 3 working days |
Knight Fire A41MULTI G2 Flush Contact, 4-Terminal, Multi-Resistor, White
£5.00
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 1k/1k
- 2k2/2k2
- 2k2/4k7
- 2k2/6k8
- 4k1/4k1 (Guardall 8k2)
- 4k7/4k7
Frequently bought together
Knight Fire & Security
Knight Fire A60 G1 Flush Contact, 5-Screw, N/O, White
Sale price£6.05
In stock
Product details
A Grade 2 contact suitable for most intermediate installations. Ideal for double door/shared zone use.

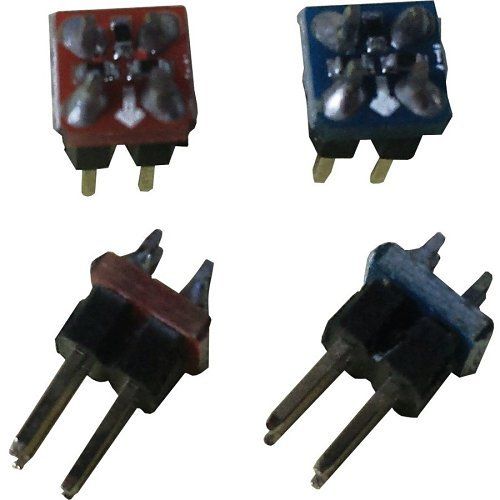

The A41MULTI features various resistors on swappable modules, offering the following configurations:
- 1k/1k
- 2k2/2k2
- 2k2/4k7
- 2k2/6k8
- 4k1/4k1 (Guardall 8k2)
- 4k7/4k7
- 4k7/6k8
- 5k6/5k6
- 10k/10k
A no-resistor/dry configuration is also available for 4-wire installations where resistors are not needed.

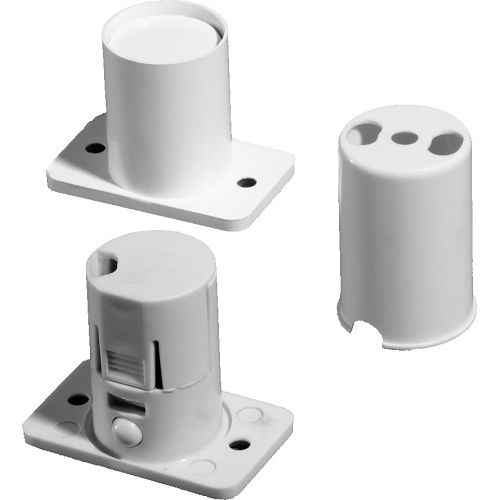

Along with fitting screws, the A41MULTI is supplied with a contact sheath, useful for installations where fitting recesses have been drilled slightly wider than 20mm.
Main Features
- 4-Terminal
- Configurable Resistor Modules
- Microswitch Tamper
- 20mm Barrel
- Rectangular Plate
- Shared Zone Wiring
- Made in UK
- Environmental Class II
Specifications
| Application/Usage | Door; Window |
|---|---|
| Connectivity Technology | Wired |
| Contact Type | Form A (SPST-NO) |
| Energy Star | No |
| Environmental Certification | Environmental Class II (Indoor Uncontrolled) |
| Height | 36.00mm |
| Indoor/Outdoor | Indoor |
| Input Voltage | 1-100V DC; 125V AC |
| Limited Warranty | 2-Year |
| Material | Plastic |
| Mount Type | Flush Mount |
| Package Contents |
|
| Product Line | Flush Contact |
| Product Series | A |
| Product Type | Flush Contact |
| Security Grade | Grade 2 |
| Standard Gap | 14.00mm |
| TAA Compliant | No |
| Width | 22.00mm |
| ATEX Compliant | No |
| CE Marking | Yes |
| CNBOP Certified | No |
| Colour | White |
| Contact Material | Rhodium |
| Country of Origin | UK |
| INCERT Certified | No |
| Input Current | 500mA |
| LPCB Certified | No |
| Manufacturer | Knight Fire & Security Products Ltd |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS Compliant | Compliant |
| SBSC Certified | No |
| TIA Listed | No |
| UL Listed | No |
| VdS Certified | No |
| WEEE Compliant | Not Applicable |
Downloads
Product datasheet
Knight Fire A41MULTI G2 Flush Contact, 4-Terminal, Multi-Resistor, White Product datasheet · A41MULTI · PDF Open datasheet
