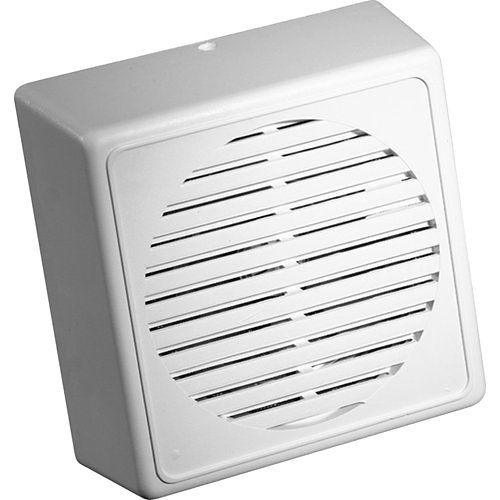

Knight Fire I20 G2 Internal Speaker, 16Ohm
SKU: I20Brand: Knight Fire & Security
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 14 | 2 to 3 working days |
Knight Fire I20 G2 Internal Speaker, 16Ohm
£7.05
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Microswitch Tamper
- 16 Ohm Speaker
- 92dB Output
- PCB Internals
- Simple Aesthetics
- Made in UK
Frequently bought together
Knight Fire & Security
Knight Fire J310 G3 Conduit Junction Box, 8+2 Way Terminals, W/Proof, White
Sale price£4.00
In stock
Knight Fire & Security
Knight Fire J40 G2 Junction Box, 5+2 Way Screws, White
Sale price£1.50
In stock
Knight Fire & Security
Knight Fire J60 G3 Conduit Junction Box, 6+2 Way Screws, Grey
Sale price£2.60
In stock
Knight Fire & Security
Knight Fire J80 G2 Low Profile Junction Box, 8+2 Way Screws, White
Sale price£1.85
In stockProduct details
A basic, surface-mounted internal speaker suitable for Grade 3 installations. Wiring internals are built on a PCB with wire clamping terminal blocks for quick and easy connection. 16 Ohm impedance, producing up to 92dB when driven at 12V. For tamper protection, a microswitch on the PCB detects removal of the product lid.
Must be connected to a suitable speaker output at the receiving equipment – this unit will not operate with only 12V DC input like a piezo buzzer would.
See part I40 for a dual-tone sounder.
Main Features
- Microswitch Tamper
- 16 Ohm Speaker
- 92dB Output
- PCB Internals
- Simple Aesthetics
- Made in UK
- Environmental Class II
Specifications
| Application/Usage | Internal Alarm |
|---|---|
| Connectivity Technology | Wired |
| Diameter | 87.00mm |
| Energy Star | No |
| Environmental Certification | Environmental Class II (Indoor Uncontrolled) |
| Height | 50.00mm |
| Impedance | 16Ohm |
| Indoor/Outdoor | Indoor |
| Length | 120.00mm |
| Limited Warranty | 2-Year |
| Material | Plastic |
| Mount Type | Surface Mount |
| Product Line | Internal Speaker |
| Product Series | I |
| Product Type | Internal Speaker |
| Security Grade | Grade 3 |
| Sound Emission | 92dB |
| TAA Compliant | No |
| Width | 239.00mm |
| ATEX Compliant | No |
| CE Marking | Yes |
| CNBOP Certified | No |
| Colour | White |
| Country of Origin | UK |
| INCERT Certified | No |
| LPCB Certified | No |
| Manufacturer | Knight Fire & Security Products Ltd |
| Maximum Frequency Response | 8kHz |
| Minimum Frequency Response | 250Hz |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS Compliant | Compliant |
| SBSC Certified | No |
| Sensitivity | 92dB |
| TIA Listed | No |
| UL Listed | No |
| VdS Certified | No |
| WEEE Compliant | Not Applicable |
Downloads
Product datasheet
Knight Fire I20 G2 Internal Speaker, 16Ohm Product datasheet · I20 · PDF Open datasheet
