Knight Fire KP4DP G2 Double End Push Panic Button, 6-Screw, Latching, DPST, Black/Brass
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 85 | 2 to 3 working days |
- 6-Screw (4x Switch, 2x Tamper)
- DPST Operation
- Microswitch Tamper
- Made in UK
- Environmental Class II
- White ABS
Frequently bought together
Product details

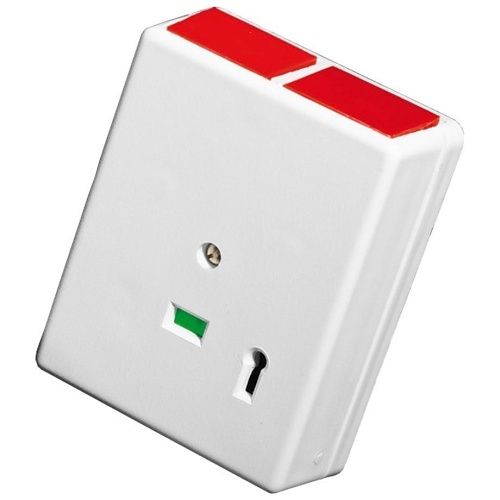

A variant of the KP4 double end-push panic button. This version includes a second alarm pole for switching two separate circuits and features a sprung microswitch tamper instead of the original leaf tamper. Screw wiring points inside provide alarm/tamper connections. EOL resistors can easily be added to this product in situ, providing a supervised circuit where necessary. This unit is latching and must be reset with the provided key after activation. Spare keys are available under code KEY10.
Accidental activation is prevented by requiring both buttons to be pushed simultaneously to produce an alarm signal. Switching method is by reed/magnet for one output and a microswitch for the other. A central flag indication is present to show the activation state at a glance.
- 6-Screw (4x Switch, 2x Tamper)
- DPST Operation
- Microswitch Tamper
- Made in UK
- Environmental Class II
- White ABS
- Tamper; Leaf
Specifications
| Application/Usage | Panic Alarm |
|---|---|
| Button Size | 25.0mm |
| Connectivity Technology | Wired |
| Contact Type | NO/NC (Combination) |
| Depth | 29.00mm |
| Energy Star | No |
| Environmental Certification | Environmental Class II (Indoor Uncontrolled) |
| Height | 29.00mm |
| Indoor/Outdoor | Indoor |
| Input Voltage | 1-100V DC; 125V AC |
| Limited Warranty | 1-Year |
| Material | Plastic |
| Mount Type | Surface Mount |
| Number of Contacts | 1000 |
| Product Line | Panic Button |
| Product Series | KP |
| Product Type | Panic Button |
| TAA Compliant | No |
| Width | 66.00mm |
| Maximum Operating Temperature | 50°C |
| ATEX Compliant | No |
| CE Marking | Yes |
| Certifications & Standards | CE |
| CNBOP Certified | No |
| Colour | White |
| INCERT Certified | No |
| LPCB Certified | No |
| Manufacturer | Knight Fire & Security Products Ltd |
| Minimum Operating Temperature | -40°C |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS Compliant | Compliant |
| SBSC Certified | No |
| TIA Listed | No |
| UL Listed | No |
| VdS Certified | No |
| WEEE Compliant | Out of Scope |
Downloads
Product datasheet
Knight Fire KP4DP G2 Double End Push Panic Button, 6-Screw, Latching, DPST, Black/Brass Product datasheet · KP4DP · PDF Open datasheet
