Name: Magnetic Solutions MS41SFM Mini Shearlock, Single Magnet, Flush Mount, Monitored
Brand: Magnetic Solutions
SKU: MS41SFM
Price: 231.00 GBP
Availability: InStock

Magnetic Solutions MS41SFM Mini Shearlock, Single Magnet, Flush Mount, Monitored

Roll over image to zoom in Click on image to zoom

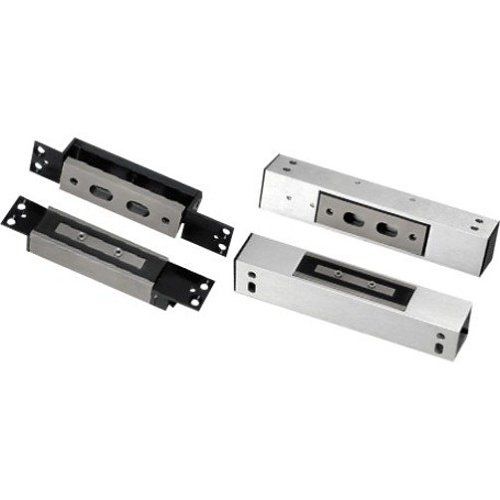

The Magnetic Solutions Flush Mounted Shearlock Monitored (MS41SFM) is a compact shearlock which can be fitted flush or surface mounted, or even a combination of both.

Main Features

Door position switch
Monitored
12/24V DC

Specifications

Application/Usage	Door
Depth	25.00mm
Door Supported	Single Door
Features	Monitored
Finishing	Satin Anodized Aluminium
Form Factor	Flush
Height	107.00mm
Holding Force	1000.00kg
Input Voltage	12V DC; 24V DC
Limited Warranty	2-Year
Mount Type	Flush Mount
Product Series	MS41
Product Type	Magnetic Lock
Width	30.00mm
Input Current	0A
Manufacturer	Magnetic Solutions
RoHS Compliant	Compliant
WEEE Compliant	Compliant
