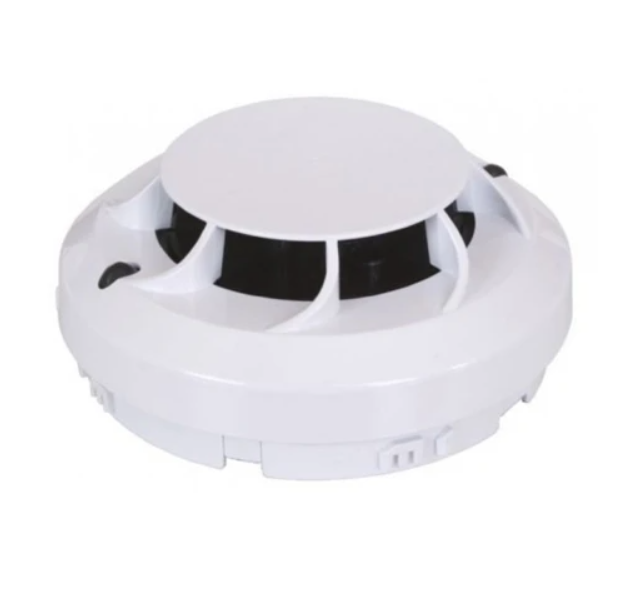

The 22051E-26 is a white Series 200 Advanced analogue addressable photoelectric (optical) smoke sensor without an isolator, supplied under the Morley-IAS brand and manufactured by System Sensor. It uses the Series 200 Advanced protocol and is mechanically and electrically backwards compatible with existing Series 200 Plus devices. It requires a B501AP base (sold separately).
Key features
- Detection chamber designed for improved false alarm immunity, with improved resilience to dust and reduced risk of false alarms from insects
- Series 200 Advanced protocol
- Two integral tri-colour LEDs (red, green and amber) giving 360° visual indication, programmable static or blinking
- Rotary decade address switches
- Smoothing filters and embedded algorithms to help reject transient environmental noise
- Meets WEEE and RoHS requirements
Technical specifications
- Operating voltage: 15 to 32 V DC
- Maximum standby current: 200 µA at 24 V DC (no communications); 300 µA at 24 V DC (LED blink enabled once every 5 s)
- LED current at 24 V DC: red 3.5 mA, green 7.0 mA, yellow 10.5 mA
- Remote output: 22.5 V DC / 10.8 mA at 24 V DC
- Temperature range: -30°C to +80°C (do not install where normal ambient exceeds 50°C)
- Humidity: 10 to 93% RH non-condensing
- Height: 52 mm installed in B501AP base; diameter: 102 mm
- Weight: 97 g (including base)
- Maximum terminal wire gauge: 2.5 mm²
- Material: PC/ABS; colour: white
- Compatible bases: B501AP series, B500 series
