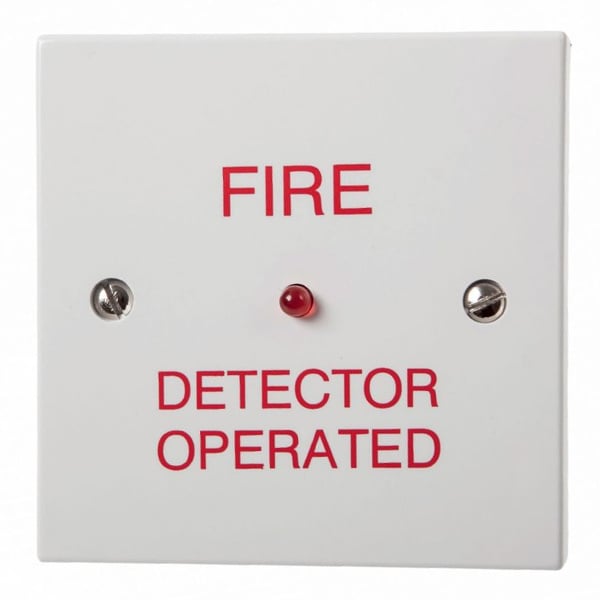

The Nittan STA-R1 is a remote indicator unit for Nittan fire detectors. It connects to a detector's remote indicator (RIL) output to give a separate visual indication when that detector is in alarm.
This version is the flush mount unit only, supplied without a back box (part no. F05-83205). Nittan also offers a surface-mount version with a back box (F05-83200).
Key features
- Remote alarm indication for Nittan detectors
- Flush mount unit only (no back box)
- Wide 5 to 28 V DC operating range
Technical specifications
- Operating voltage: 5 to 28 V DC
- Operating temperature: -10°C to +55°C
- Material: ABS
- Dimensions: 86.5 x 86.5 mm
- Mass: 38 g
- Standards: complies with EN 54-5 and EN 54-7
- Manufacturer part number: F05-83205 (flush mount unit only)
